Hyundai Elantra MD/UD: Schematic Diagrams - Oil Pump Unit(OPU). Schematic Diagrams - Hydraulic System - Automatic Transaxle System - Hyundai Elantra MD 2010-2015 Service manual

Hyundai Elantra MD/UD: Schematic Diagrams

Fifth generation (MD/UD; 2011–2016) / Hyundai Elantra MD 2010-2015 Service manual / Automatic Transaxle System / Hydraulic System / Oil Pump Unit(OPU). Schematic Diagrams / Schematic Diagrams

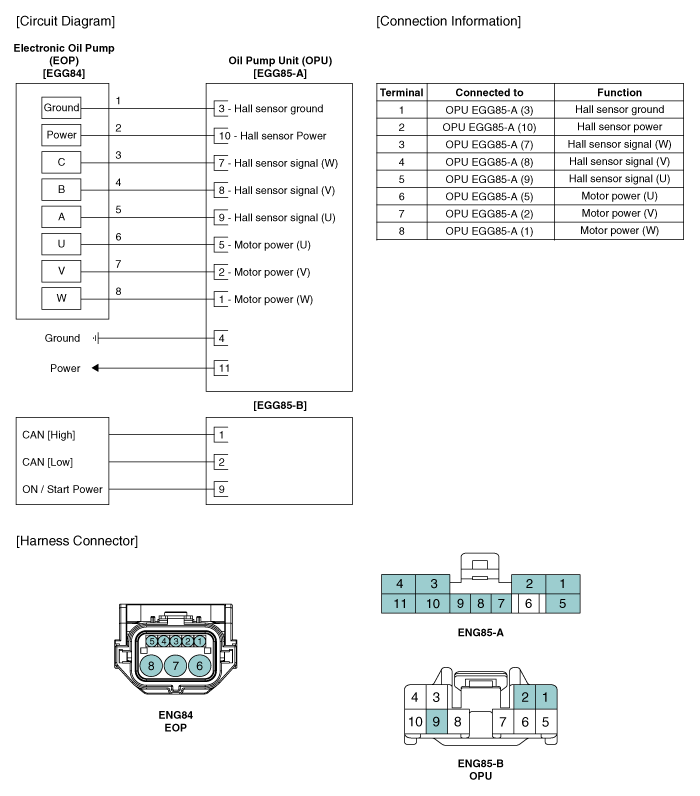

OPU connector and terminal function

OPU terminal function EGG85-A EGG85-B Pin Description Pin Description 1 Motor p ...

Oil Pump Unit(OPU). Repair procedures

...
