Glass Replacement
•
Put on glove to protect your hands.
1.
Remove the glass (A) by lifting it up.
•
Do not damage the roof panel.

2.
Installation is the reverse of removal.
Motor Replacement
1.
Remove the roof trim.
(Refer to the BD group - "Roof Trim")
•
Confirm the position of guide whether it is closed or not when you remove the motor.
2.
Disconnect the motor connector (B), remove the screws and then remove the motor (A).
3.
Installation is the reverse of removal.
•
Make sure to initialize the motor.
Deflector Replacement
1.
Open the glass fully.
2.
Loosen the mounting screw (C), from the frame (B), and then remove the deflector (A).
3.
Installation is the reverse of removal.
Sunroof Assembly Replacement
1.
Remove the follows parts.
A.
Interior trim
(Refer to the BD group - "Interior Trim")
B.
Roof trim
(Refer to the BD group - "Roof Trim")
C.
Sunroof glass.
2.

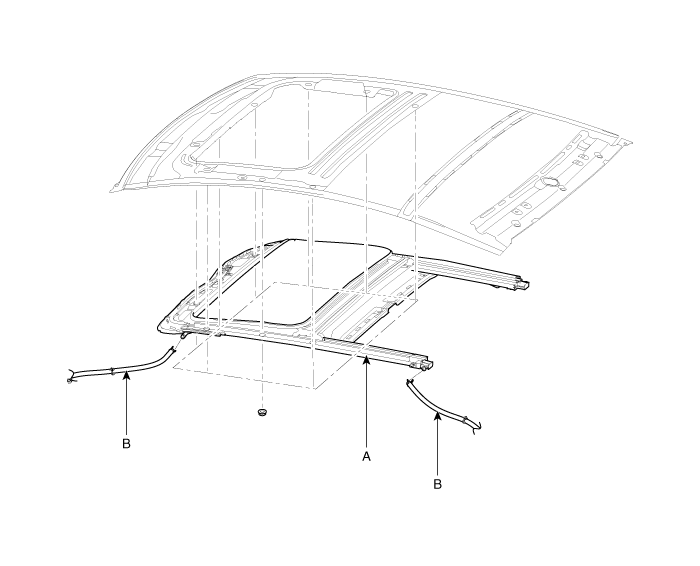

Disconnect the drain tubes (B).
3.
After loosening the mounding nuts, remove the sunroof assembly (A).
Tightening torque:
19.6 ~ 29.4 N.m (2.0 ~ 3.0 kgf.m, 14.5 ~ 21.7 lb-ft)
•
Take care not to scratch the interior trims and other parts.
4.
Installation is the reverse of removal.
•
Make sure to initialize the motor.

Sunshade Replacement
1.
Remove the sunroof assembly.
2.
Remove the drip link (A) and sunshade stopper (B).
3.
Remove the drip rail (A) from the sunroof assembly (B).
4.
Installation is the reverse of removal.
Guide Assembly Replacement
1.
Remove the sunroof assembly.
2.

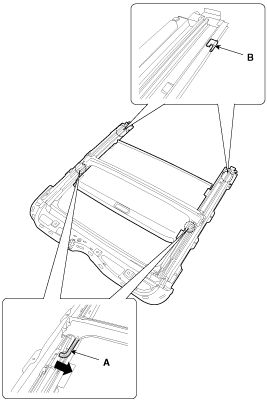

Remove a mechanism assembly (A) after lowering a guide thoroughly by pushing a slide to rear.
3.
Remove the guide (A) and slide (B).
4.
Installation is the reverse of removal.
•
Make sure to align the slide with the center of “(A)” and “(B)”
•
Make sure to initialize the motor.


Adjustment
