Hyundai Elantra HD: Remote control - Outside rearview mirror - Mirrors - Features of your vehicle - Hyundai Elantra HD 2006–2010 Owners ManualHyundai Elantra HD: Remote control

Manual type

Manual type

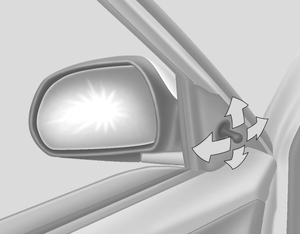

The outside rearview mirrors are equipped with a remote control for your convenience. It is operated by the control lever in the bottom front corner of the window.

Before driving away, always check that your mirrors are positioned so you can see behind you, both to the left and right sides, as well as directly behind your vehicle. When using the mirror, always exercise caution when attempting to judge the distance of vehicles behind or along side of you.

Electric type (if equipped)

Electric type (if equipped)

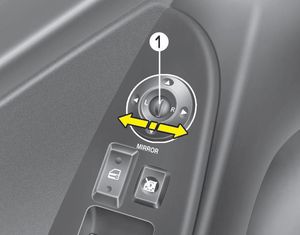

The electric remote control mirror switch allows you to adjust the position of the left and right outside rearview mirrors. To adjust the position of either mirror, move the lever (1) to R or L to select the right side mirror or the left side mirror, then press a corresponding point (on the mirror adjustment control to position the selected mirror up, down, left) on the mirror adjustment control to position the selected mirror up, down, left or right. After adjustment, put the lever into neutral position to prevent the inadvertent adjustment.

CAUTION CAUTION

  • The mirrors stop moving when they reach the maximum adjusting angles, but the motor continues to operate while the switch is depressed. Do not depress the switch longer than necessary, the motor may be damaged.
  • Do not attempt to adjust the outside rearview mirror by hand. Doing so may damage the parts.
Outside rearview mirror
Be sure to adjust mirror angles before driving. Your vehicle is equipped with both lefthand and right-hand outside rearview mirrors. The mirrors can be adjusted remotely with the remote switch. The ...

Folding the outside rearview mirror
To fold outside rearview mirror, grasp the housing of mirror and then fold it toward the rear of the vehicle. ...
