Description

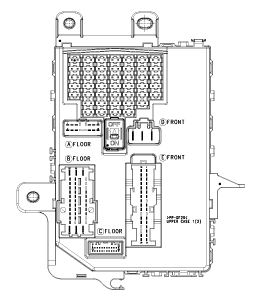

Smart Junction Box(SJB)
|
1. |
General function : Interior Junction Box + some functions of BCM
It controls loads with CAN communication and IPS.
|
|
2. |
Main function
| A. |
Low speed CAN communication(100 kbps)
|
| B. |
Self diagnostics(Lamp open/short)
|
| C. |
Fail safe(When MCU/CAN is fail, Head lamp / Tail lamp
directly drive)
|
| D. |
Protection of bulb over-voltage(PWM function)
|
| E. |
Cut of Over-load and Short : PCL(Program Current Limit)
|
Switch control input
No.
|
Switch input
|
Value
|
Destination
|
Wakeup
|
1
|
IG1
|
ON/OFF
|
-
|
YES
|
2
|
IG2
|
ON/OFF
|
-
|
NO
|
3
|
Seat belt switch(Driver)
|
BELT/UNBELT
|
BCM
|
NO
|
4
|
Seat belt switch(Passenger)
|
BELT/UNBELT
|
BCM
|
NO
|
5
|
Seat belt switch(Rear left)
|
BELT/UNBELT
|
BCM
|
NO
|
6
|
Seat belt switch(Rear right)
|
BELT/UNBELT
|
BCM
|
NO
|
7
|
Seat belt switch(Rear center)
|
BELT/UNBELT
|
BCM
|
NO
|
8
|
Unlock State(Driver door)
|
LOCK/UNLOCK
|
BCM,SMK
|
YES
|
9
|
Unlock State(Passenger door)
|
LOCK/UNLOCK
|
BCM,SMK
|
YES
|
10
|
Unlock State(Rear left door)
|
LOCK/UNLOCK
|
BCM
|
YES
|
11
|
Unlock State(Rear right door)
|
LOCK/UNLOCK
|
BCM
|
YES
|
12
|
Driver door switch
|
CLOSE/OPEN
|
BCM,CLU,SMK
|
YES
|
13
|
Passenger door switch
|
CLOSE/OPEN
|
BCM,CLU,SMK
|
YES
|
14
|
Rear left door switch
|
CLOSE/OPEN
|
BCM,CLU,SMK
|
YES
|
15
|
Rear right door switch
|
CLOSE/OPEN
|
BCM,CLU,SMK
|
YES
|
16
|
Driver/Passenger door Key lock
|
OFF/LOCK
|
BCM
|
YES
|
17
|
Driver door Key unlock
|
OFF/UNLOCK
|
BCM
|
YES
|
18
|
Passenger door Key unlock
|
OFF/UNLOCK
|
BCM
|
YES
|
19
|
Driver window lock switch
|
OFF/LOCK
|
BCM
|
YES
|
20
|
Driver window unlock switch
|
OFF/UNLOCK
|
BCM
|
YES
|
21
|
Turn signal switch(Left)
|
ON/OFF
|
CLU
|
NO
|
22
|
Turn signal switch(right)
|
ON/OFF
|
CLU
|
NO
|
23
|
Hazard switch
|
ON/OFF
|
-
|
YES
|
24
|
Trunk switch
|
CLOSE/OPEN
|
BCM,CLU,SMK
|
YES
|
25
|
HID
|
HID/OFF
|
-
|
NO
|
26
|
Brake fluid sensor
|
ON/OFF
|
CLU
|
NO
|
27
|
Parking brake switch
|
ON/OFF
|
BCM,CLU
|
NO
|
28
|
Multifunction switch(Lighting)
|
ON/OFF
|
-
|
NO
|
29
|
Hood switch
|
OFF/OPEN
|
BCM
|
YES
|
30
|
Trunk release switch
|
ON/OFF
|
BCM,SMK
|
YES
|
Relay output control
No
|
Relay output
|
Value
|
Type
|
Remarks
|
1
|
Auto cut
|
ON/OFF
|
Transistor
|
Auto cut of Dark current
|
2
|
Sound relay
|
ON/OFF
|
Transistor
|
|
3
|
Door lock relay
|
ON/OFF
|
LSD
|
|
4
|
Door unlock relay
|
ON/OFF
|
LSD
|
|
5
|
Power window main relay
|
ON/OFF
|
Transistor
|
|
6
|
Rear heater relay
|
ON/OFF
|
LSD
|
|
7
|
Front deicer relay
|
ON/OFF
|
LSD
|
|
8
|
Burglar alarm relay
|
ON/OFF
|
LSD
|
|
9
|
Burglar horn relay
|
ON/OFF
|
LSD
|
|
10
|
T/TURN and D/LOCK
|
ON/OFF
|
LSD
|
|
11
|
Trunk lid relay
|
ON/OFF
|
Transistor
|
|
Lamp control
No
|
Lamp
|
Bulb capacity
|
PWM control
|
PCL detection
|
OCL detection
|
1
|
Head lamp High(Left)
|
55 W
|
O
|
O
|
|
2
|
Head lamp Low(Left)
|
55 W
|
O
|
O
|
|
3
|
Rear turn signal(Left)
|
33 W
|
|
O
|
O
|
4
|
Front turn signal(Left)
|
28 W
|
|
O
|
O
|
5
|
Head lamp High(Right)
|
55 W
|
O
|
O
|
|
6
|
Head lamp Low(Right)
|
55 W
|
O
|
O
|
|
7
|
Rear turn signal(Right)
|
33 W
|
|
O
|
O
|
8
|
Front turn signal(Right)
|
28 W
|
|
O
|
O
|
9
|
Tail lamp(Left, right)
|
72 W
|
|
O
|
|
10
|
Interior tail lamp
|
60 W
|
|
O
|
|
11
|
Front fog lamp(Left, right)
|
70W(35W+35W)
|
O
|
O
|
|
*PCL(Programmable Current Limit) : It detects the current of lamp.
If a current exceed the standard value, it cuts the current of lamp.
*OCL(Open Circuit Limit) : It detects the current of lamp. If
a current is below the standard value, it controls current of lamp.
|

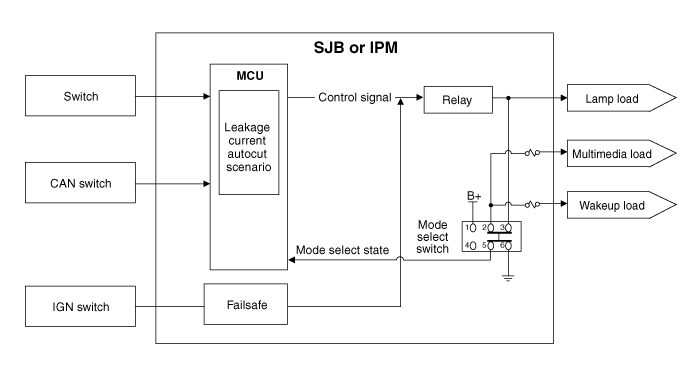

Auto cut system of dark current
|
1. |
Description : It cuts automatically power to be provided with
load for reducing useless dark current according to vehicle state.
|
|
2. |
SJB had 3 modes, "Normal Mode", "Sleep Mode", "Power Off Mode".
Auto cut of dark current practice in "Sleep Mode".
| A. |
"Sleep" condition : IG OFF, constant input switch, CAN
network doesn't activate.
|
| B. |
"Sleep" resolutive condition : Any switch inputs, CAN
network activates, KEY ON, IGN ON
|
| C. |
"Power OFF" condition : The setting time of timer which
is used by cutting a load power expires.
|
| D. |
"Normal Mode" : SJB function normally activates.
|
| E. |
"Sleep Mode" : It is low power mode and activates for
reducing electricity consumption of SJB or IPM. Auto cut of
dark current function activates.
|
| F. |
"Power OFF Mode" : Power of MCU and circumferential circuit
is cut for minimizing electricity consumption. Operation stops.
|
|
|
3. |

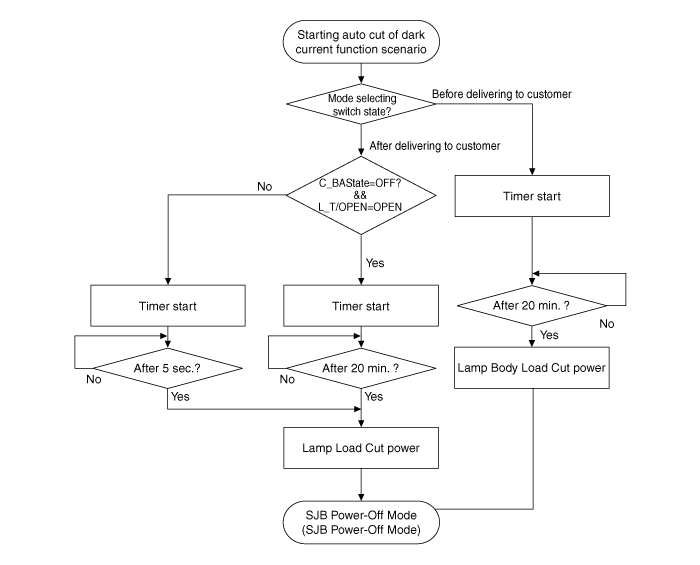

The explanation - The auto cut of dark current
Before delivering to customer
|
Fuse Switch
|
•All door close & RKE door lock or Constant switch state
(Auto cut of dark current scenario starts.)
-After "sleep" state is for 20 min.
-SJB power down(SJB dark current : 200 μA) and cutting
power of Lamp/Body Load/Wake up
|
|
After delivering to customer
|
Fuse Switch
|
•All door close & Constant switch state : C_BAState=OFF
(Auto cut of dark current scenario starts.)
-After "sleep" state is for 20 min.
-SJB power down(SJB dark current : 200 μA) and cutting
power of Lamp Load
•In case RKE door lock : C_BAState=ON & Trunk SW=CLOSE
(Auto cut of dark current scenario starts.)
-After "Sleep" state 35s~65s (Waiting time of other
unit : 30~60s + SJB sleep counts 5s)
-SJB Powerdown(SJB dark current : 200 μA) and cutting
power of Lamp Load
|
|
|
|
4. |
Problem when fuse switch setting is wrong
: If a fuse switch is set to OFF(Before delivering to customer)
by a customer or technician and auto cut function of dark current activates,
below problems may happen.
Symptom
|
Related part
|
•Door lock/unlock, trunk open don't activate by RKE.
(Wakeup of each module don't activate.)
|
BCM
|
•Digital clock is reset.(Memory is reset.)
|
Digital clock
|
•Setting value of audio(Volume, Frequency setting) is reset.
(Memory is reset.)
|
Audio
|
*If fuse switch OFF(before delivering to customer) is set, power
of BCM, Digital clock and audio is shut off.
|
