Components and components location

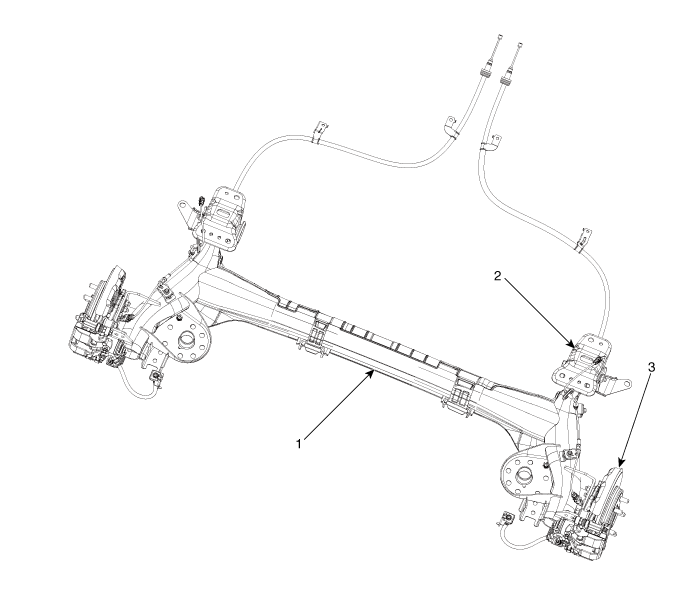

![](images/books/3027/scnss10303d.gif)
1. Rear torsion beam axle 2. Rear torsion beam chassis bracket
| 3. Rear axle
|
Rear Shock Absorber
Components and components location

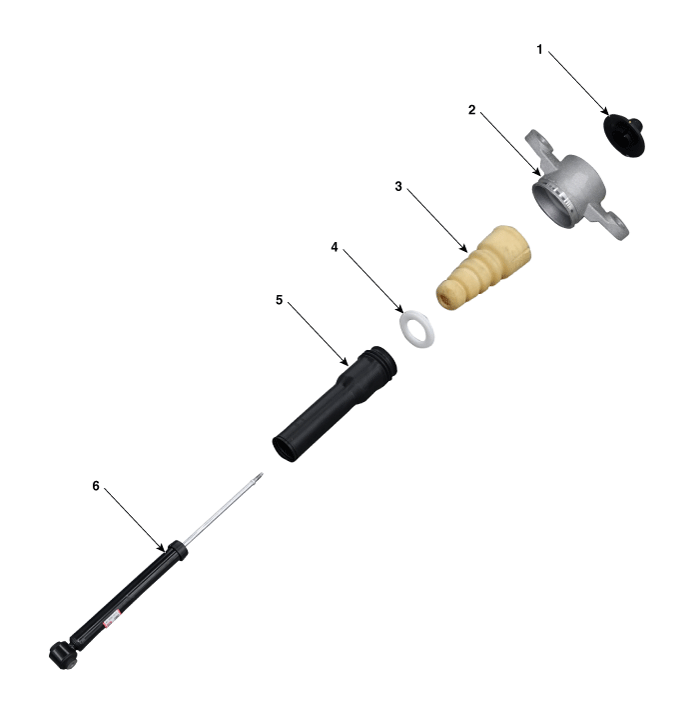

![](images/books/3027/scnss10101d.gif)
1. Insulator cap 2. Insulator 3. Bumper rubber
| 4. Spacer 5. Dust cover 6. Rear shock absorber
|
Repair procedures
1. | Loosen the wheel nuts slightly. Raise the vehicle, and make sure it is securely supported. |

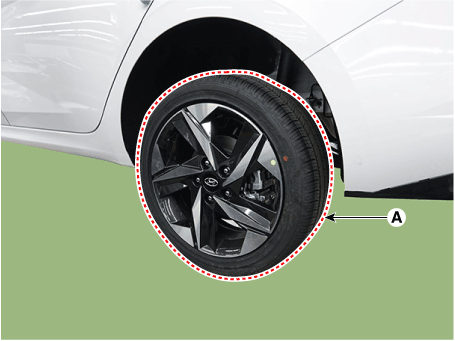

2. | Remove the rear wheel and tire (A) from the rear hub. Tightening torque : 107.9 - 127.5 N.m (11.0 - 13.0 kgf.m, 79.6 - 94.0 lb-ft) |
•
| Be careful not to damage the hub bolts when removing the rear wheel and tire (A). |
|
![](images/books/3027/scnds10019d.gif)
|
3. | Remove the rear shock absorber (A) from the body after loosening the mounting bolts. Tightening torque : 49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb-ft) |
•
| Set up the transmission jack under the torsion beam axle in order to remove it in no-load condition. |
|
![](images/books/3027/scnss10025d.gif)
|

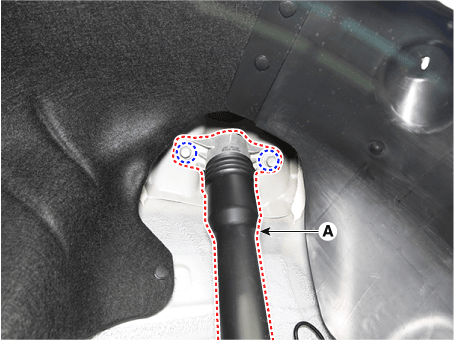

4. | Remove the rear shock absorber (A) from the torsion beam axle after loosening the mounting bolt and nut. Tightening torque : 98.1 - 117.7 N.m (10.0 - 12.0 kgf.m, 72.3 - 86.8 lb-ft) |
![](images/books/3027/scnss10026d.gif)
•
| Set up the transmission jack under the torsion beam axle in order to remove it in no-load condition. |
|
|

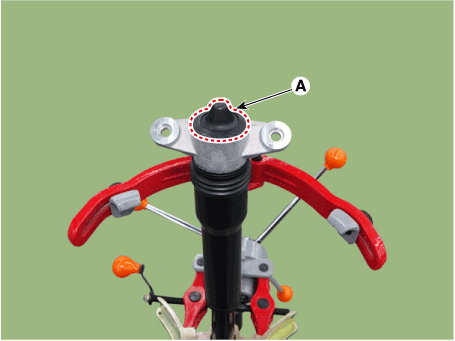

1. | Remove the insulator cap (A). ![](images/books/3027/scnss10027d.gif)
|

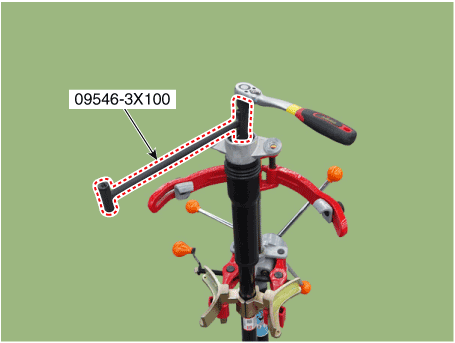

2. | Loosen the lock nut by using the SST (09456-3X100). ![](images/books/3027/scnss10028d.gif)
|

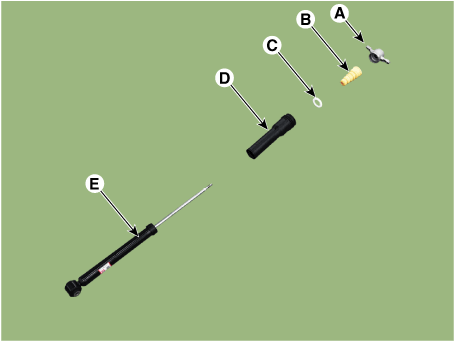

3. | Separate the insulator (A), bumper rubber (B), spacer (C), dust cover (D), shock absorber (E). ![](images/books/3027/scnss10029d.gif)
|
1. | Check the rubber parts for wear and deterioration. |

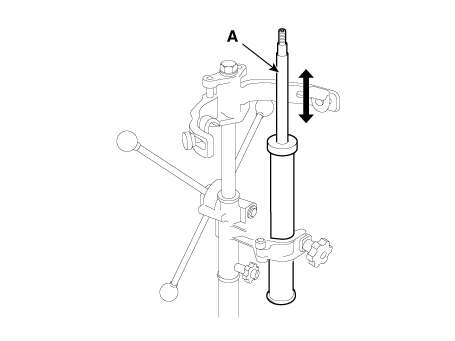

2. | Compress and extend the rear shock absorber rod (A) and check that there is no abnormal resistance or unusual sound during operation. ![](images/books/3027/khre112a_n.gif)
|
Disposal
1. | Fully extend the shock absorber rod. |

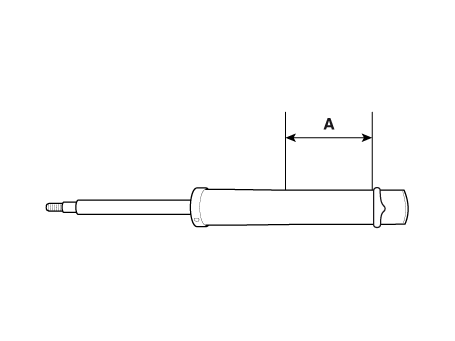

2. | Drill a hole to remove gas from the cylinder (A). ![](images/books/3027/khre112b_n.gif)
•
| The gases emitted are colorless, odorless, and harmless. |
•
| Be careful when drilling, as the drill chip may be blown. |
|
|
1. | To reassembly, reverse the disassembly procedure. |
2. | Using SST(09546-3X100), install the lock nut. •
| Do not reuse the self locking nut. |
|
Tightening torque : 19.6 - 24.5 N.m (2.0 - 2.5 kgf.m, 14.5 - 18.1 lb-ft) |
![](images/books/3027/scnss10028d.gif)
|
3. | Install the lock nut cover (A). ![](images/books/3027/scnss10027d.gif)
|
1. | To install, reverse the removal procedures. |
Rear Coil Spring
Components and components location

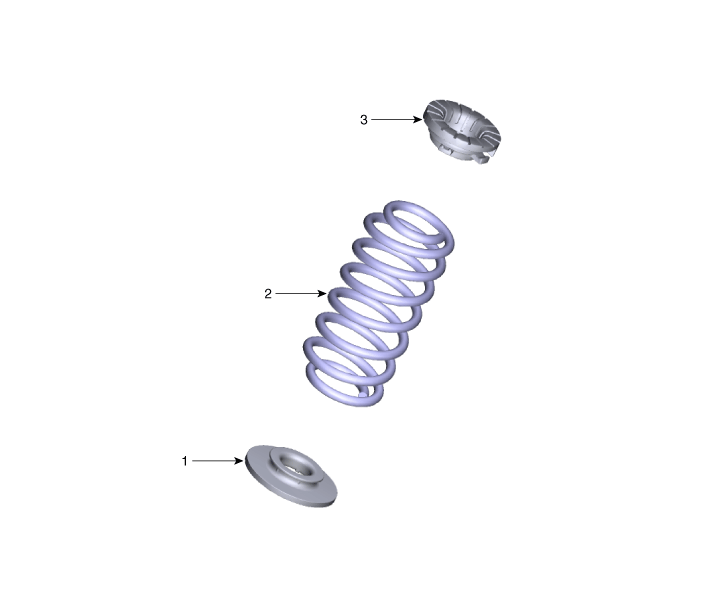

![](images/books/3027/sosss81302d.gif)
1. Coil spring upper pad 2. Rear coil spring
| 3. Coil spring lower pad
|
Repair procedures
1. | Loosen the wheel nuts slightly. Raise the vehicle, and make sure it is securely supported. |
2. | Remove the rear wheel and tire (A) from the rear hub. Tightening torque : 107.9 - 127.5 N.m (11.0 - 13.0 kgf.m, 79.6 - 94.0 lb-ft) |
•
| Be careful not to damage the hub bolts when removing the rear wheel and tire (A). |
|
![](images/books/3027/scnds10019d.gif)
|
3. | Remove the rear caliper. (Refer to Brake System - "Rear Disc Brake") |
4. | Remove the rear shock absorver (A) from the torsion beam axle after loosening the mounting bolt. Tightening torque : 98.1 - 117.7N.m (10.0 - 12.0kgf.m, 72.3 - 86.8lb-ft) |
•
| Set up the jack under the torsion beam axle in order to remove it in no-load condition. |
|
[LH] ![](images/books/3027/scnss10026d.gif)
[RH] ![](images/books/3027/scnss10030d.gif)
|

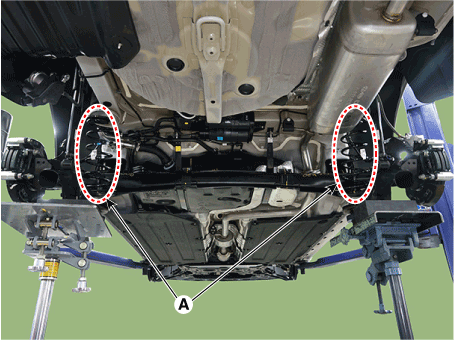

5. | Remove the coil spring (A). ![](images/books/3027/scnss10031d.gif)
•
| Left / right sides Remove all the same. |
|
|
1. | To install, reverse the removal procedures. |
Rear torsion beam axle
Components and components location
![](images/books/3027/scnss10304d.gif)

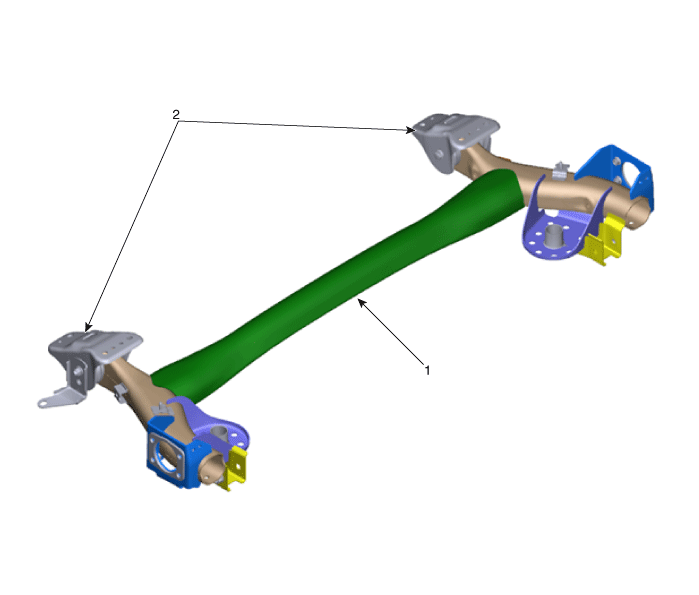

1. Torsion beam axle
| 2. Rear torsion beam chassis bracket
|
Repair procedures
[Rear disc brake parking cable type]
1. | Loosen the wheel nuts slightly. Raise the vehicle, and make sure it is securely supported. |
2. | Remove the rear wheel and tire (A) from the rear hub. Tightening torque : 107.9 - 127.5 N.m (11.0 - 13.0 kgf.m, 79.6 - 94.0 lb-ft) |
•
| Be careful not to damage the hub bolts when removing the rear wheel and tire (A). |
|
![](images/books/3027/scnds10019d.gif)
|
3. | Remove the rear caliper. (Refer to Brake System - "Rear Disc Brake") |

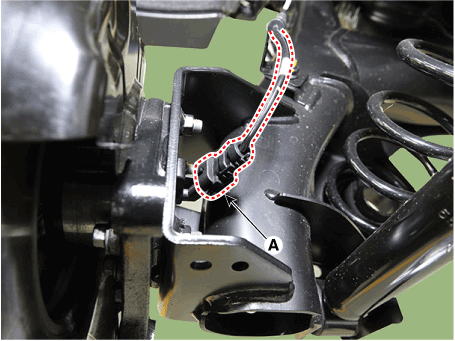

4. | Disconnect the rear wheel speed sensor connector (A). ![](images/books/3027/scnss10032d.gif)
|

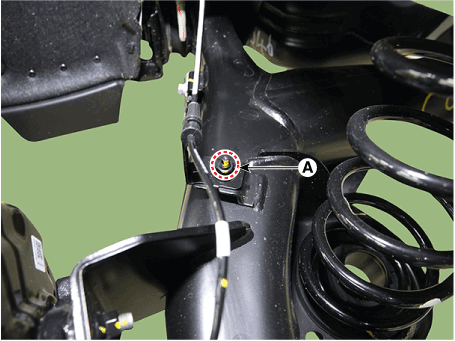

5. | Remove the rear wheel speed sensor bracket after loosening the mounting nut (A). Tightening torque : 8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb-ft) |
![](images/books/3027/scnss10033d.gif)
|

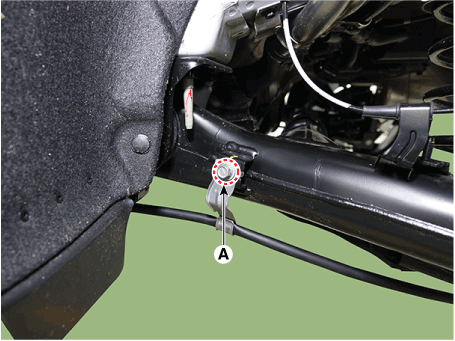

6. | Remove the parking brake cable bracket after loosening the mounting bolt (A). Tightening torque : 19.6 - 29.4 N.m (2.0 - 3.0 kgf.m, 14.5 - 21.7 lb-ft) |
![](images/books/3027/scnss10034d.gif)
|
7. | Remove the rear shock absober (A) from the torsion beam axle after loosening the mounting bolt. Tightening torque : 98.1 - 117.7N.m (10.0 - 12.0kgf.m, 72.3 - 86.8lb-ft) |
•
| Set up the jack under the torsion beam axle in order to remove it in no-load condition. |
|
[LH] ![](images/books/3027/scnss10026d.gif)
[RH] ![](images/books/3027/scnss10030d.gif)
|

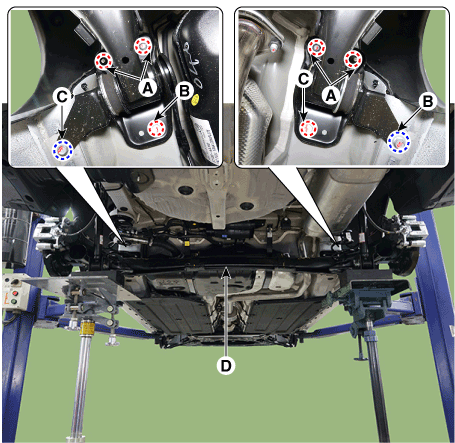

8. | Remove the torsion beam axle (D) after loosening the mounting nuts (A) and bolts (B, C). Tightening torque (A) : 98.1 - 117.7N.m (10.0 - 12.0kgf.m, 72.3 - 86.8lb-ft) (B) : 98.1 - 117.7N.m (10.0 - 12.0kgf.m, 72.3 - 86.8lb-ft) (C) : 44.1 - 53.9N.m (4.5 - 5.5kgf.m, 32.5 - 39.8lb-ft) |
![](images/books/3027/scnss10037d.gif)
|
[Rear disc brake EPB type]
1. | Loosen the wheel nuts slightly. Raise the vehicle, and make sure it is securely supported. |
2. | Remove the rear wheel and tire (A) from the rear hub. Tightening torque : 107.9 - 127.5 N.m (11.0 - 13.0 kgf.m, 79.6 - 94.0 lb-ft) |
•
| Be careful not to damage the hub bolts when removing the rear wheel and tire (A). |
|
![](images/books/3027/scnds10019d.gif)
|
3. | Remove the rear caliper. (Refer to Brake System - "Rear Disc Brake") |
4. | Disconnect the rear wheel speed sensor connector (A). ![](images/books/3027/scnss10041d.gif)
|
5. | Remove the rear wheel speed sensor bracket after loosening the mounting nut (A). Tightening torque : 8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb-ft) |
![](images/books/3027/scnss10042d.gif)
|

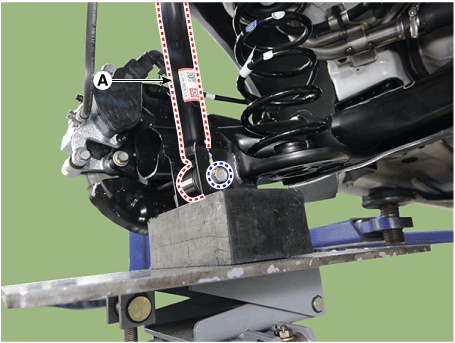

6. | Remove the rear shock absober (A) from the torsion beam axle after loosening the mounting bolt. Tightening torque : 98.1 - 117.7N.m (10.0 - 12.0kgf.m, 72.3 - 86.8lb-ft) |
•
| Set up the jack under the torsion beam axle in order to remove it in no-load condition. |
|
[LH] ![](images/books/3027/scnss10026d.gif)

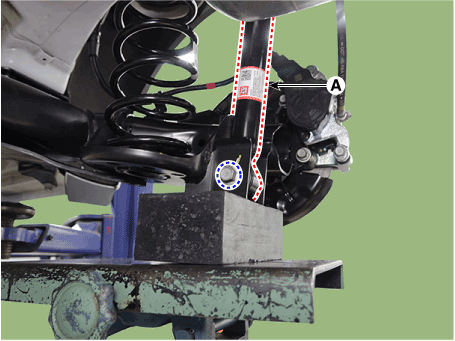

[RH] ![](images/books/3027/scnss10030d.gif)
|
7. | Remove the torsion beam axle (D) after loosening the mounting nuts (A) and bolts (B, C). Tightening torque (A) : 98.1 - 117.7N.m (10.0 - 12.0kgf.m, 72.3 - 86.8lb-ft) (B) : 98.1 - 117.7N.m (10.0 - 12.0kgf.m, 72.3 - 86.8lb-ft) (C) : 44.1 - 53.9N.m (4.5 - 5.5kgf.m, 32.5 - 39.8lb-ft) |
![](images/books/3027/scnss10037d.gif)
|
[Rear drum brake type]
1. | Loosen the wheel nuts slightly. Raise the vehicle, and make sure it is securely supported. |

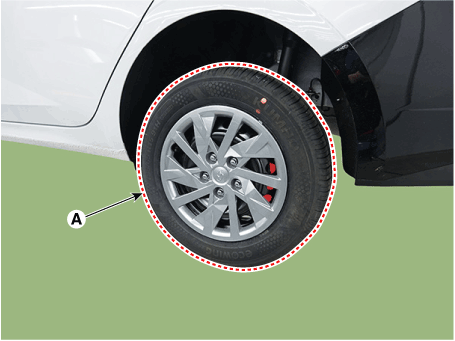

2. | Remove the rear wheel and tire (A) from the rear hub. Tightening torque : 107.9 - 127.5 N.m (11.0 - 13.0 kgf.m, 79.6 - 94.0 lb-ft) |
•
| Be careful not to damage the hub bolts when removing the rear wheel and tire (A). |
|
![](images/books/3027/scnds10002l.gif)
|

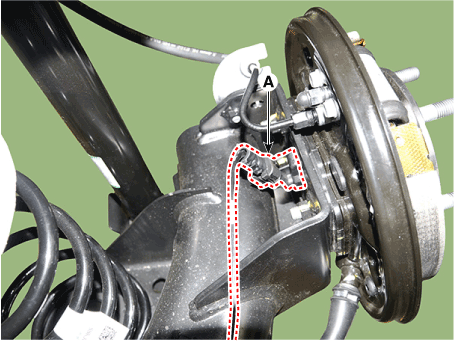

3. | Disconnect the rear wheel speed sensor connector (A). ![](images/books/3027/scnds10003l.gif)
|

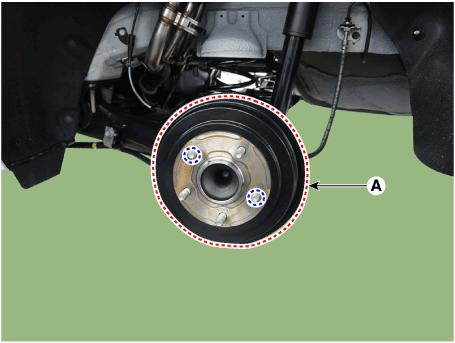

4. | Loosen the screw and then remove the rear drum brake (A). Tightening torque : 4.9 - 5.9 N.m (0.5 - 0.6 kgf.m, 3.6 - 4.3 lb-ft) |
![](images/books/3027/scnds10004l.gif)
|

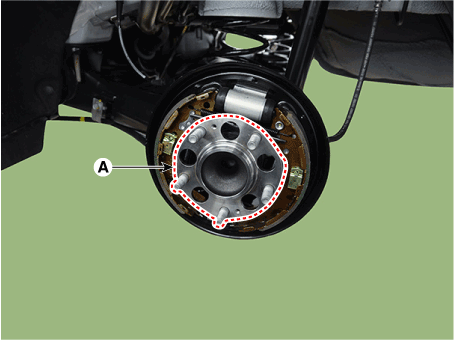

5. | Loosen the hub mounting bolts and then remove the hub (A) from the torsion beam. Tightening torque : 49.0 - 58.8 N.m (5.0 - 6.0 kgf.m, 36.2 - 43.4 lb-ft) |
![](images/books/3027/scnds10005l.gif)
|

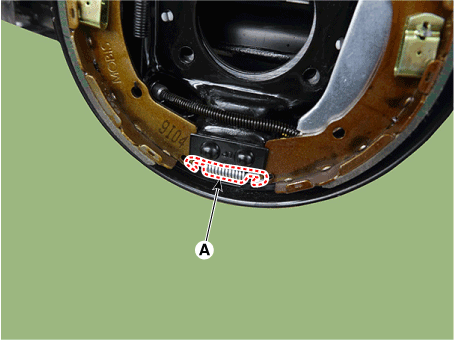

6. | Remove the lower shoe return spring (A). ![](images/books/3027/scnss10001l.gif)
|

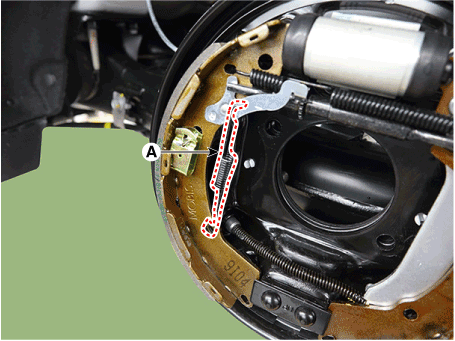

7. | Remove the adjuster spring (A). ![](images/books/3027/scnss10002l.gif)
|
8. | Remove the upper shoe return spring (A). |
9. | Remove the upper shoe adjuster (B). |
10. | Remove the adjusting lever (C). ![](images/books/3027/scnss10305l.gif)
|

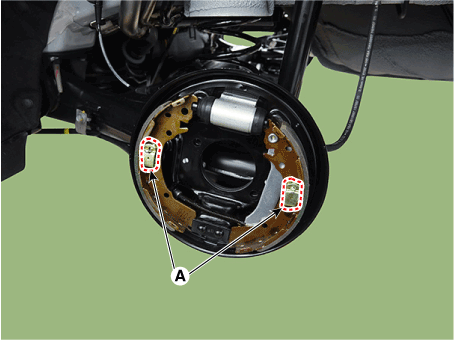

11. | Remove the shoe holder (A) and then remove the rining. ![](images/books/3027/scnss10004l.gif)
|

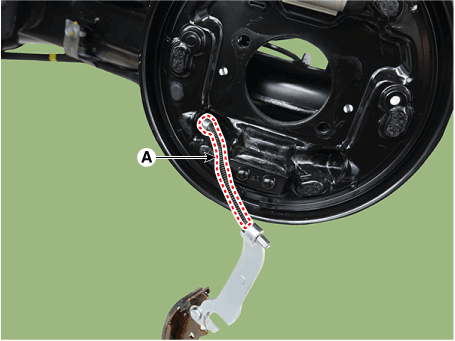

12. | Disconnect the parking brake cable (A) from lining. ![](images/books/3027/scnss10005l.gif)
|

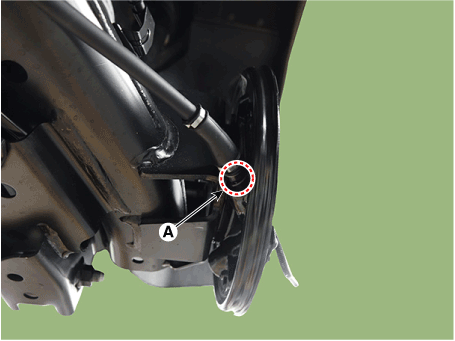

13. | Remove the clip (A). ![](images/books/3027/scnss10006l.gif)
|

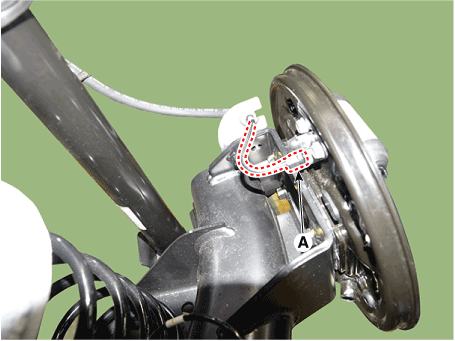

14. | Remove the brake hose (A) after loosening the brake flare nut. Tightening torque : 12.7 - 16.7 N.m (1.3 - 1.7 kgf.m, 9.4 - 12.3 lb-ft) |
![](images/books/3027/scnss10007l.gif)
|

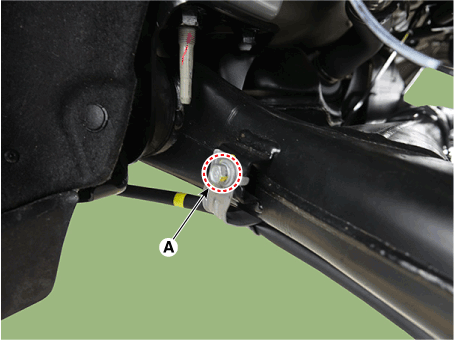

15. | Loosen the rear parking cable bracket mounting bolts (A). Tightening torque : 8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb-ft) |
![](images/books/3027/scnss10008l.gif)
|

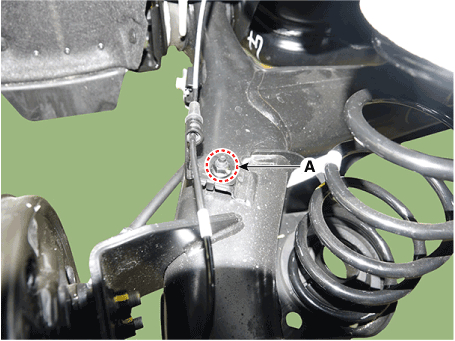

16. | Loosen the rear wheel speed sensor bracket mounting nuts (A). Tightening torque : 8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb-ft) |
![](images/books/3027/scnss10009l.gif)
|

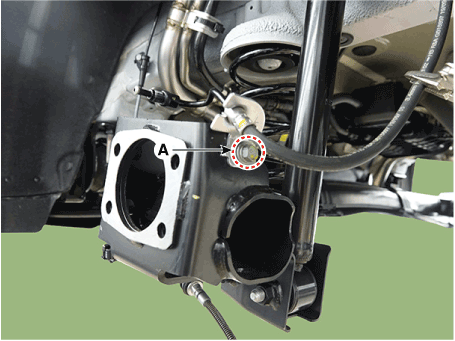

17. | Remove the rear brake hose bracket mounting bolts (A). Tightening torque : 12.7 - 16.7 N.m (1.3 - 1.7 kgf.m, 9.4 - 12.3 lb-ft) |
![](images/books/3027/scnss10010l.gif)
|
18. | Support the rear torsion beam axle with a jack. |

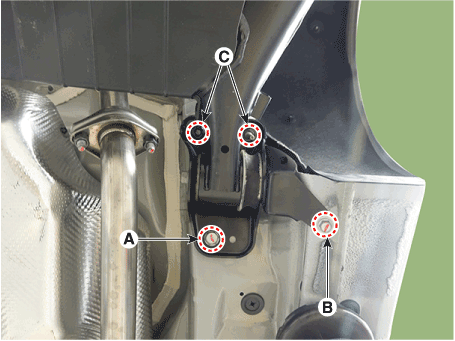

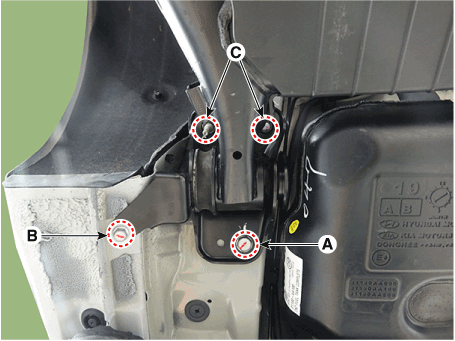

19. | Loosen the rear torsion beam axle stay mounting bolts (A, B) and nuts (C). Tightening torque : (A) : 98.1 - 117.7 N.m (10.0 - 12.0 kgf.m, 72.3 - 86.8 lb-ft) (B) : 44.1 - 53.9 N.m (4.5 - 5.5 kgf.m, 32.5 - 39.8 lb-ft) (C) : 98.1 - 117.7 N.m (10.0 - 12.0 kgf.m, 72.3 - 86.8 lb-ft) |
![](images/books/3027/scnss10011l.gif)
![](images/books/3027/scnss10012l.gif)
|

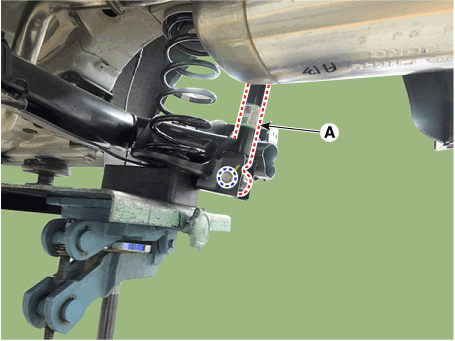

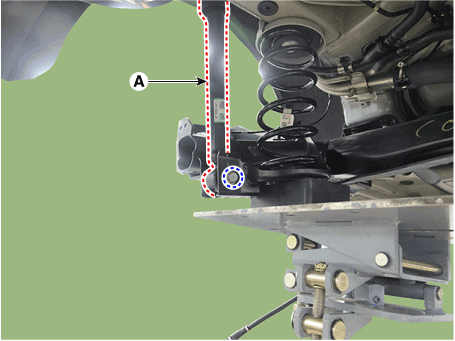

20. | Loosen the bolt and then separate the rear shock absorber (A) from the torsion beam axle. Tightening torque : 98.1 - 117.7N.m (10.0 - 12.0kgf.m, 72.3 - 86.8lb-ft) |
![](images/books/3027/scnss10013l.gif)
![](images/books/3027/scnss10014l.gif)
|

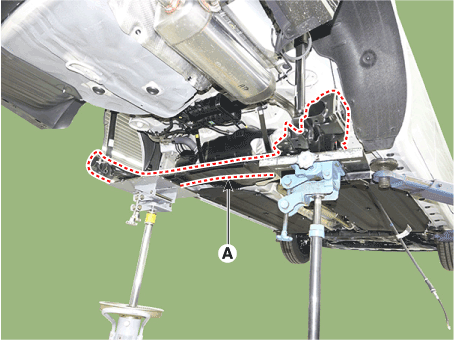

21. | Remove the torsion beam axle (A). ![](images/books/3027/scnss10015l.gif)
|
[Rear torsion beam axle bush replace]
1. | Remove the rear torsion beam axle from the vehicle. (Refer to Rear Torsion Beam Axle - "Removal") |

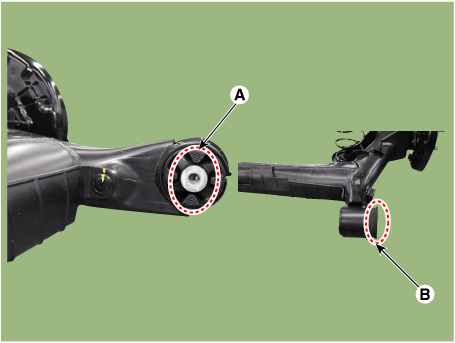

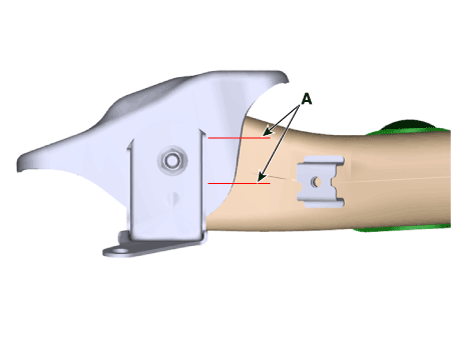

2. | Mark (A) between the rear torsional beam chassis bracket and the torsional beam axle. ![](images/books/3027/scnss10305d.gif)
|

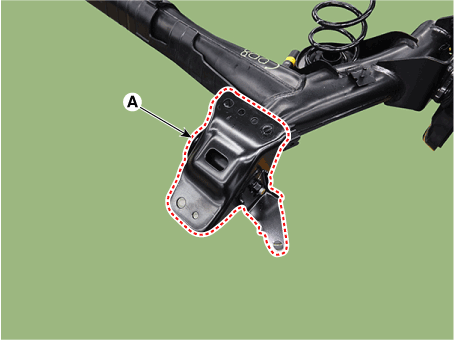

3. | Remove the rear torsion beam axle stay (A) after loosening the mounting bolt and nut. ![](images/books/3027/scnss10038d.gif)
|

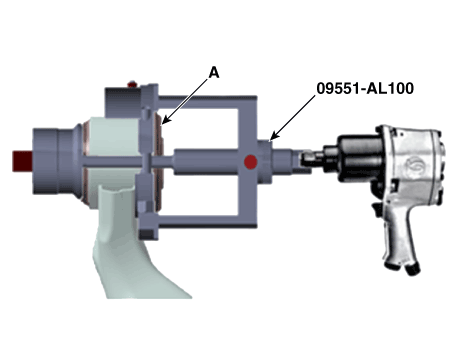

4. | Using the SST (09551-AL100), replace the bush (A). ![](images/books/3027/sosss80005l_n.gif)
•
| When press in the bush, press the same direction of the void (A) and the flange direction (B) before detaching. |
|
![](images/books/3027/scnss10306d.gif)
|
5. | Install the torsion beam axle stay (A) and tighten the bolt and nut to the specified torque. Tightening torque : 68.6 N.m + 270° (7.0 kgf.m + 270°, 50.6 lb-ft + 270° lb-ft) |
•
| Do not resuse removed bolt and nut. |
|
![](images/books/3027/scnss10038d.gif)
•
| Before removing the torsion beam axle stay, attach the marking (A) to match. ![](images/books/3027/scnss10305d.gif)
|
|
|
1. | To install, reverse the removal procedures. |
