Hyundai Elantra MD/UD: Rear Disc Brake. Components and Components Location - Brake System - Brake System - Hyundai Elantra MD 2010-2015 Service manualHyundai Elantra MD/UD: Rear Disc Brake. Components and Components Location

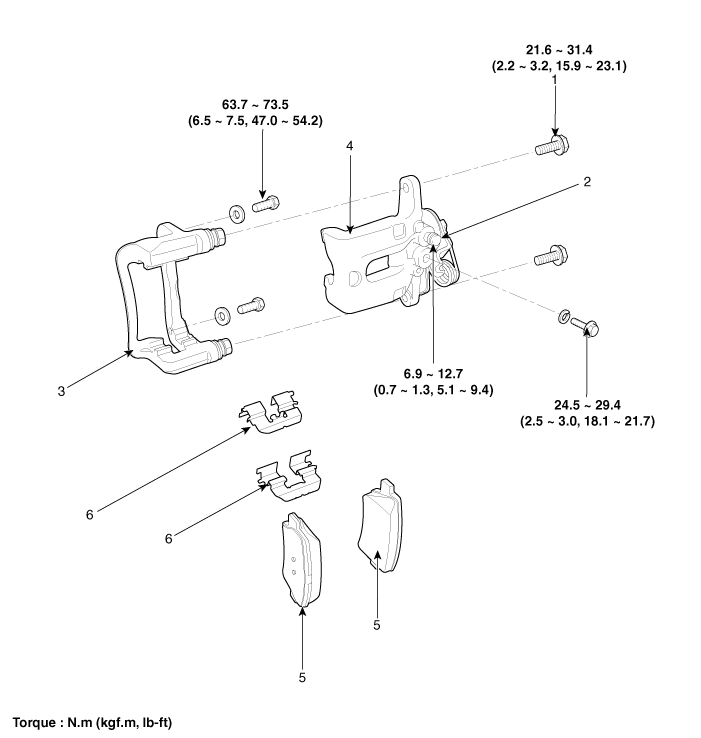

Components

1. Guide rod bolt
2. Bleed screw
3. Caliper carrier
 4. Caliper body
5. Brake pad
6. Pad retainer


Installation
1. Installation is the reverse of removal. 2. Use a SST (09581-11000) when installing the brake caliper assembly. 3 ...
