Components and components location

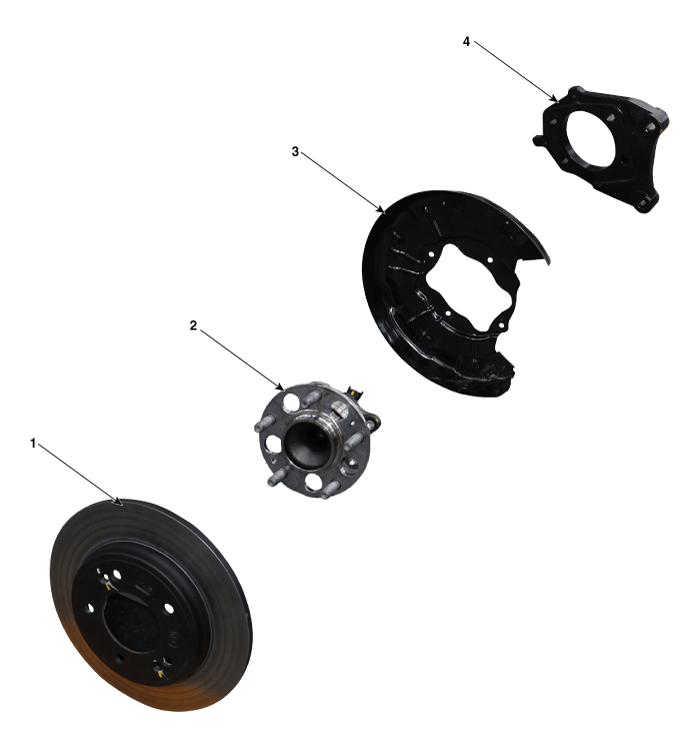

[Rear disc brake type]
![](images/books/3027/scnds10101d.gif)
1. Rear brake disc 2. Hub bearing assembly
| 3. Dust cover 4. Rear carrier
|

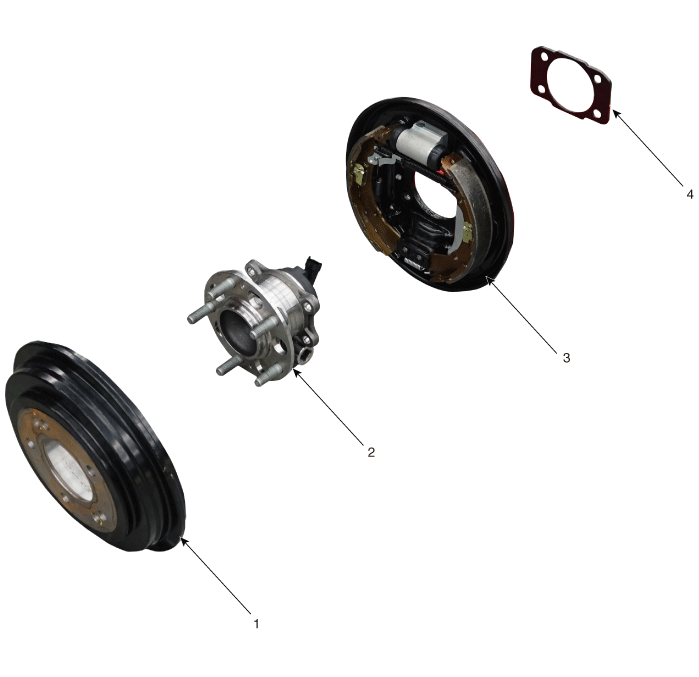

[Rear drum brake type]
![](images/books/3027/scnds10001l.gif)
1. Rear drum 2. Rear hub assembly
| 3. Brake assembly 4. Spacer
|
Repair procedures
[Rear disc brake type]
1. | Loosen the wheel nuts slightly. Raise the vehicle, and make sure it is securely supported. |
2. | Remove the rear wheel and tire (A) from the rear hub. Tightening torque : 107.9 - 127.5 N.m (11.0 - 13.0 kgf.m, 79.6 - 94.0 lb-ft) |
•
| Be careful not to damage the hub bolts when removing the rear wheel and tire (A). |
|
![](images/books/3027/scnds10019d.gif)
|
3. | Remove the rear brake caliper. (Refer to Brake System - "Rear Disc Brake") |

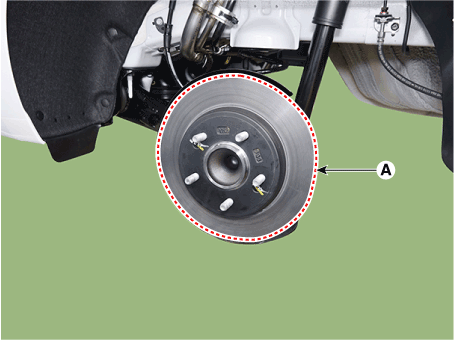

4. | Loosen the screw and the remove the rear break disc (A). Tightening torque : 4.9 - 5.9 N.m (0.5 - 0.6 kgf.m, 3.6 - 4.3 lb-ft) |
![](images/books/3027/scnds10020d.gif)
|

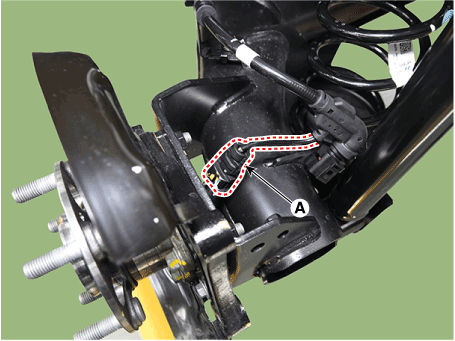

5. | Disconnect the rear wheel speed sensor connector (A). ![](images/books/3027/scnds10021d.gif)
|

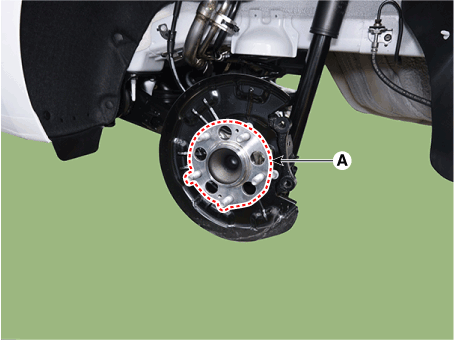

6. | Remove the hurb bearing assembly after loosening the hurb bearing mounting bolts (A). Tightening torque : 49.0 - 58.8 N.m (5.0 - 6.0 kgf.m, 36.2 - 43.4 lb-ft) |
![](images/books/3027/scnds10022d.gif)
|

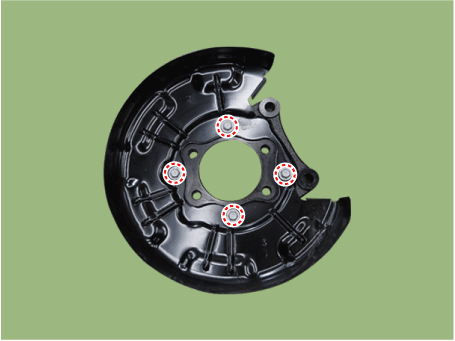

7. | Separate the backing plate and extra bracket after loosening the mounting bolts. Tightening torque : 2.0 - 2.9 N.m (0.2 - 0.3 kgf.m, 1.4 - 2.2 lb-ft) |
![](images/books/3027/scnds10023d.gif)
|
[Rear drum brake type]
1. | Loosen the wheel nuts slightly. Raise the vehicle, and make sure it is securely supported. |
2. | Remove the rear wheel and tire (A) from the rear hub. Tightening torque : 107.9 - 127.5 N.m (11.0 - 13.0 kgf.m, 79.6 - 94.0 lb-ft) |
•
| Be careful not to damage the hub bolts when removing the rear wheel and tire (A). |
|
![](images/books/3027/scnds10002l.gif)
|
3. | Disconnect the rear wheel speed sensor connector (A). ![](images/books/3027/scnds10003l.gif)
|
4. | Loosen the screw and then remove the rear drum brake (A). Tightening torque : 4.9 - 5.9 N.m (0.5 - 0.6 kgf.m, 3.6 - 4.3 lb-ft) |
![](images/books/3027/scnds10004l.gif)
|
5. | Loosen the hub mounting bolts and then remove the hub (A) from the torsion beam. Tightening torque : 49.0 - 58.8 N.m (5.0 - 6.0 kgf.m, 36.2 - 43.4 lb-ft) |
![](images/books/3027/scnds10005l.gif)
|
1. | Check the hub for cracks and the splines for wear. |
2. | Check the brake disc for scoring and damage. |
3. | Check the rear axle carrier for cracks. |
4. | Replace only the sensor cap when the warning light turns on due to a defective sensor cap of the hub bearing. (Refer to Brake System - "Rear Wheel Speed Sensor") |
1. | To install, reverse the removal procedures. |
