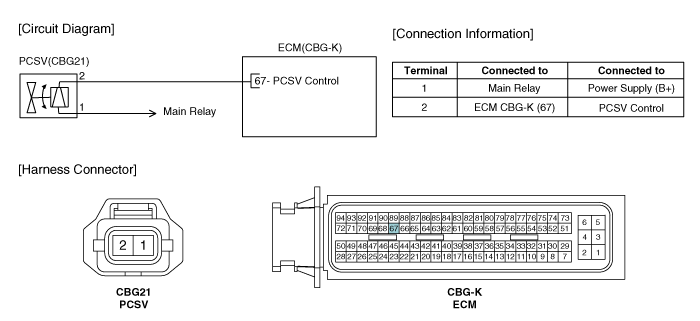

Circuit Diagram

Purge Control Solenoid Valve (PCSV). Specifications

Specification Item Specification Coil Resistance (Ω) 16.0Ω at 20°C (68°F) ...

Purge Control Solenoid Valve (PCSV). Repair procedures

Component Inspection 1. Turn ignition switch OFF. 2. Disconnect PCSV connector. 3. Measure resistance between ...
