Hyundai Elantra MD/UD: Purge Control Solenoid Valve (PCSV). Schematic Diagrams - Engine Control System - Fuel System - Hyundai Elantra MD 2010-2015 Service manualHyundai Elantra MD/UD: Purge Control Solenoid Valve (PCSV). Schematic Diagrams

Circuit Diagram

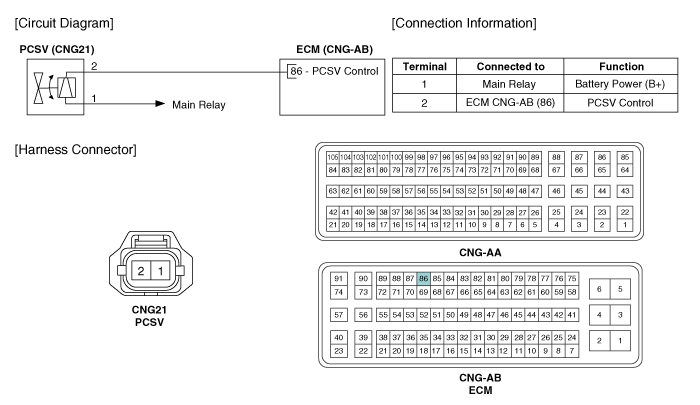

(M/T)

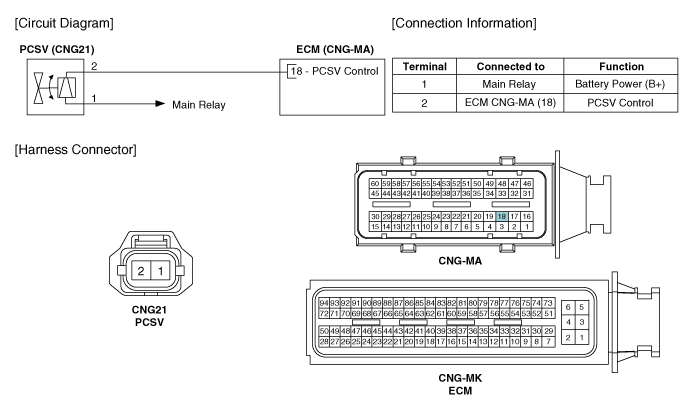

(A/T)


Purge Control Solenoid Valve (PCSV). Specifications
Specification Item Specification Coil Resistance (Ω) 22.0 ~ 26.0 [20°C(68°F)] ...
