The fuel-filler lid must be opened from inside the vehicle by pulling up on the

The fuel-filler lid must be opened from inside the vehicle by pulling up on the fuel-filler lid opener located on the front floor area on the left side of the car.

✽ NOTICE

If the fuel-filler lid will not open because ice has formed around it, tap lightly or push on the lid to break the ice and release the lid. Do not pry on the lid. If necessary, spray around the lid with an approved de-icer fluid (do not use radiator anti-freeze) or move the vehicle to a warm place and allow the ice to melt.

1. Stop the engine.

1. Stop the engine.

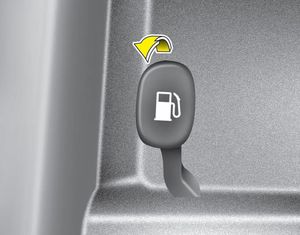

2. To open the fuel filler lid, pull the fuel filler lid opener up.

WARNING WARNING

To avoid injury from sharp edges, it is recommended that protective gloves be worn if there is a need to open the fuel filler door manually.

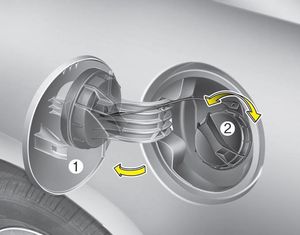

3. Pull the fuel filler lid out to open.

4. To remove the cap, turn the fuel tank cap counterclockwise.

5. Refuel as needed.

Closing the fuel filler lid
1. To install the cap, turn it clockwise until it “clicks”. This indicates that the cap is securely tightened. 2. Close the fuel filler lid and push it lightly and make sure that it is securely ...
