Hyundai Elantra MD/UD: Oil Pump. Components and Components Location - Lubrication System - Engine Mechanical System - Hyundai Elantra MD 2010-2015 Service manualHyundai Elantra MD/UD: Oil Pump. Components and Components Location

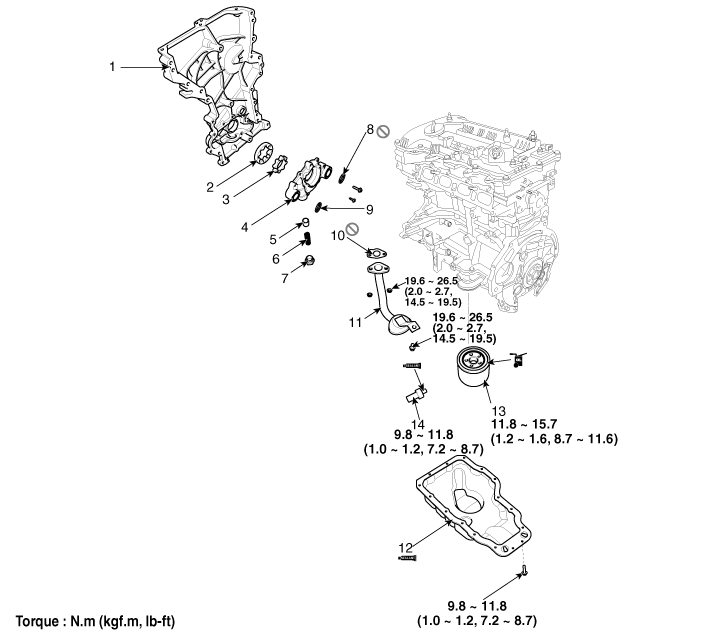

Components

1. Timing chain cover
2. Outer roter
3. Inner roter
4. Oil pump cover
5. Relief plunger
6. Relief spring
7. Relief plug
 8. O-ring (suction side)
9. O-ring (discharge side)
10. Oil screen gasket
11. Oil screen
12. Oil pan
13. Oil filter
14. OPS (Oil pressure switch)


Inspection
1. Check the engine oil quality. Check the oil deterioration, entry of water, discoloring of thinning. If the quality is visibly poor, replace the oil. ...
