Specifications
Items
|
Specifications
|
Rated voltage
|
DC 12V
|
Operating temperature range
|
-40 ~ +176°F (-40°C ~ +80°C)
|
Rated load
|
Washer
|
Washer : 6A (Motor load)
|

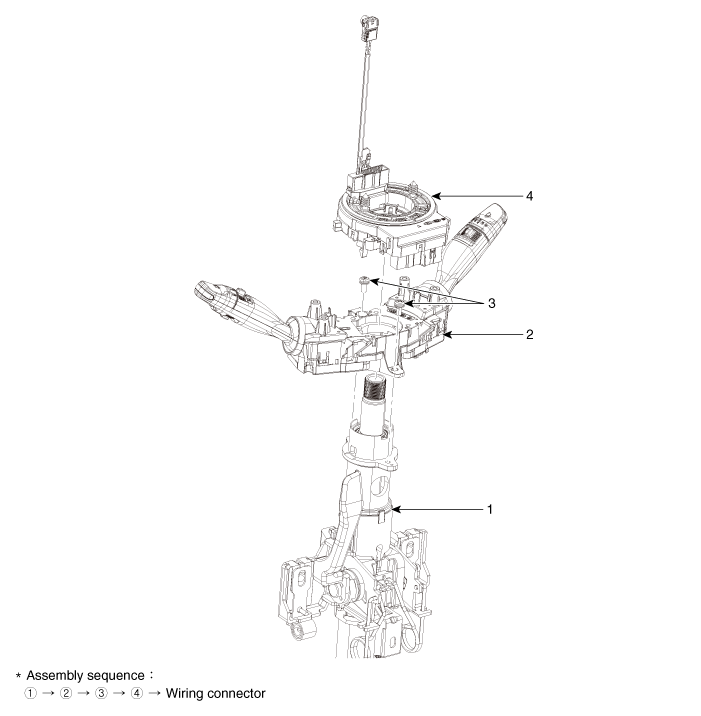

Components and Components Location
1. Steering column
2. Multifunction switch
|
3. Screw
4. Clock spring
|
Repair procedures
| 1. |
Disconnect the negative (-) battery
terminal. |
| 2. |
Remove the steering wheel.
(Refer to Steering System - "Steering Wheel")
|
| 3. |
Remove the steering column upper
and lower shrouds after loosening the screws. (Refer to Body - "Steering
Column Shroud Panal")
|
| 4. |
Remove the clock spring. (Refer
to Restraint - "Driver Airbag (DAB) Module and Clock Spring")
|
| 5. |

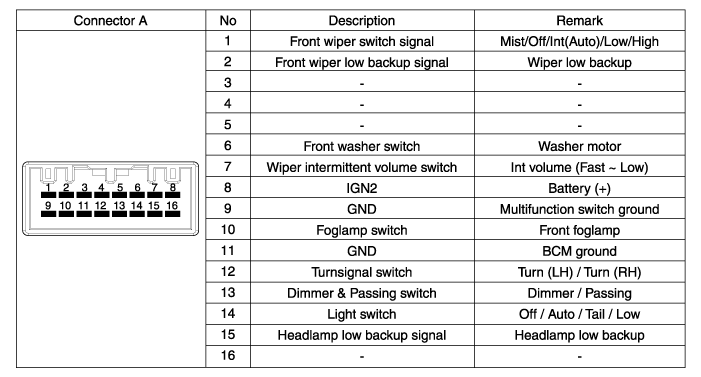

Disconnect the multifunction
switch connector (A).
|
| 6. |
Remove the multifunction switch
assembly (A) after loosening the screws.
|
| 1. |
Install the multifunction switch. |
| 2. |
Install the clock spring. |
| 3. |
Install the steering column upper
and lower shrouds. |
| 4. |
Install the steering wheel. |
| 5. |
Connect the negative (-) battery
terminal. |

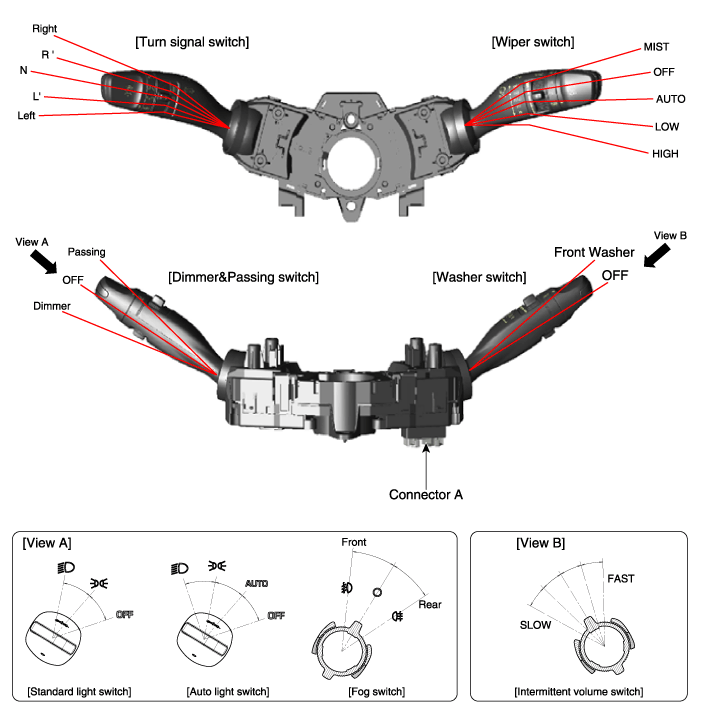

Multifunction Switch Inspection
| 1. |
Check for continuity between
the terminals in each switch position according to the table.
Switch
|
Switch position
|
Switch terminal
|
Resistance (?, ±3.5%)
|
Wiper switch
|
MIST
|
1-9
|
330
|
OFF
|
?
|
Intermittent (AUTO)
|
800
|
LOW
|
1800
|
HIGH
|
5700
|
Wiper intermittent volume
|
Volume 1
|
7-9
|
330
|
Volume 2
|
690
|
Volume 3
|
1310
|
Volume 4
|
2610
|
Volume 5
|
7310
|
Fog lamp switch
|
OFF
|
9-10
|
?
|
Front foglamp
|
910
|
Rear foglamp
|
2910
|
Turnsignal switch
|
OFF
|
9-12
|
?
|
Left
|
910
|
Right
|
2910
|
Dimmer & Passing switch
|
OFF
|
9-13
|
?
|
Passing
|
910
|
Dimmer
|
2910
|
Light switgh
|
OFF
|
9-14
|
?
|
AUTO / DRL
|
680
|
Tail lamp
|
1680
|
Low beam
|
5580
|
|
Inspection (With GDS)
| 1. |
The body electrocal system can
be quickly diagnosed failed parts with vehicle diagnostic system (GDS).
The diagnostic system (GDS) provides the following information.
| (1) |
Self diagnosis : Checking
the failure code (DTC) and display |
| (2) |
Current data : Checking
the system input/output data state |
| (3) |
Actuation test : Checking
the system operation condition |
| (4) |
Additional function :
Other controlling such as he system option and zero point adjustment |
|
| 2. |
Select the "Car model" and the
system to be checked in order to check the vehicle with the tester. |
| 3. |
Select the "Body Control Module
(BCM)" to check the multi function switch. |
| 4. |

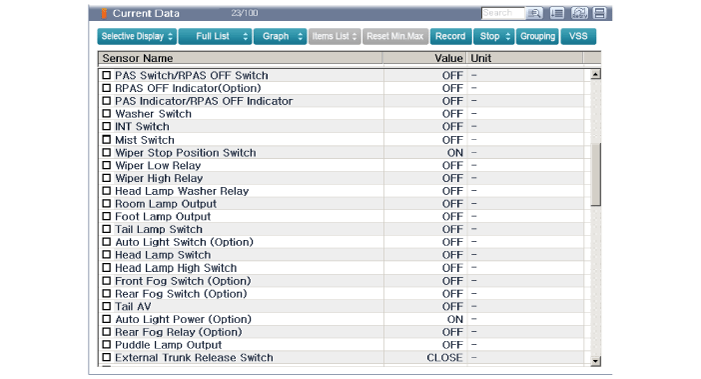

Select the "Current data" menu
to search the current state of the input/output data. The input/output
data for the sensors corresponding to the multi function switch can be checked.
|
