Hyundai Elantra MD/UD: Manifold Absolute Pressure Sensor (MAPS). Schematic Diagrams - Engine Control System - Fuel System - Hyundai Elantra MD 2010-2015 Service manualHyundai Elantra MD/UD: Manifold Absolute Pressure Sensor (MAPS). Schematic Diagrams

Circuit Diagram

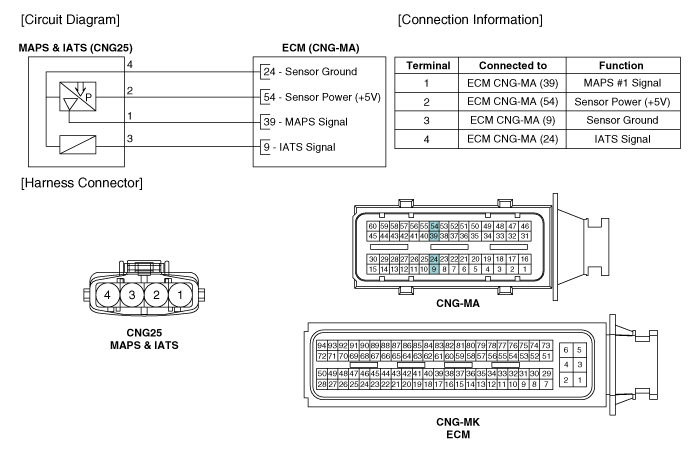

(M/T)

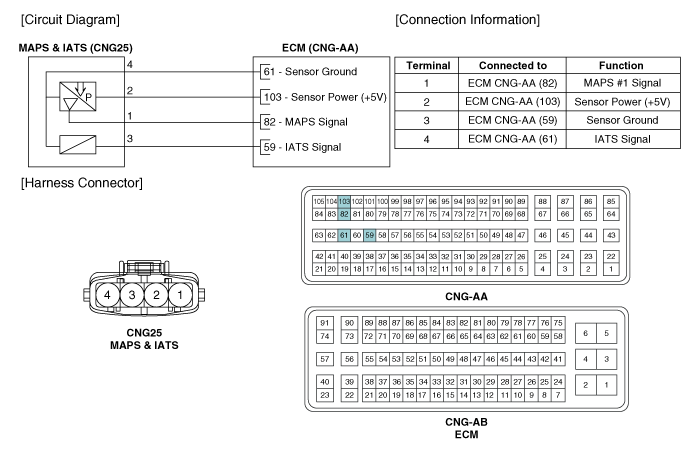

(A/T)


Manifold Absolute Pressure Sensor (MAPS). Specifications
Specification Pressure [kPa (kgf/cm², psi)] Output Voltage (V) 20.0 (0.20, 2.9) 0.79 46.7 (0.47, 6.77) 1.84 ...
