General Information
| • |
When heavy rear components
such as suspension, fuel tank, spare tire, tailgate and trunk lid
are to be removed, place additional weight in the luggage area before
hoisting. When substantial weight is removed from the rear of the
vehicle, the center of gravity may change and can cause the vehicle
to tip forward on the hoist. |
|
| • |
With each tire/wheel
assembly weighing approximately 30lbs (14kg), placing the front
wheels in the luggage area can help the weight distribution.
|
| • |
Use the same support
points to support the vehicle on safety stands. |
|
| 1. |

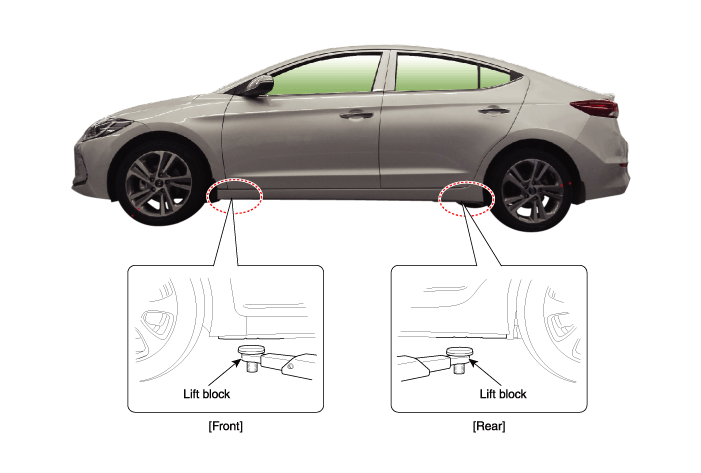

Place the lift blocks under the
support points as shown in the illustration. |
| 2. |
Raise the hoist a few inches
(centimeters) and rock the vehicle to make sure that the vehicle is firmly
supported. |
| 3. |
Raise the hoist to full height
to check whether the vehicle is firmly supported.
|
