Hyundai Elantra HD: Interior light bulb replacement - Light bulbs - Maintenance - Hyundai Elantra HD 2006–2010 Owners ManualHyundai Elantra HD: Interior light bulb replacement

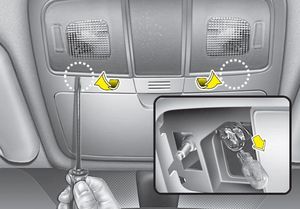

Front map lamp

Front map lamp

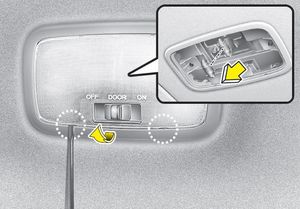

Dome lamp

Dome lamp

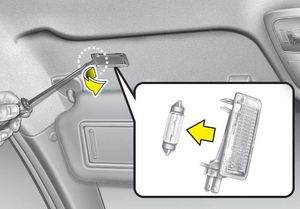

Sunvisor lamp

Sunvisor lamp

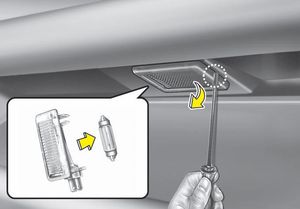

Glove box lamp

Glove box lamp

1. Using a flat-blade screwdriver, gently pry the lens from the interior light housing.

2. Remove the bulb by pulling it straight out.

3. Install a new bulb in the socket.

4. Align the lens tabs with the interior light housing notches and snap the lens into place.

WARNING WARNING

Prior to working on the Interior Lights, ensure that the “OFF” button is depressed to avoid burning your fingers or receiving an electric shock.

CAUTION CAUTION

Use care not to dirty or damage lens, lens tab, and plastic housings.

License plate light bulb replacement
1. Loosen the lens retaining screws with a cross-tip screwdriver. 2. Remove the lens. 3. Remove the bulb by pulling it straight out. 4. Install a new bulb. 5. Reinstall the lens securely with the ...
