Hyundai Elantra MD/UD: Instrument Cluster. Schematic
Diagrams - Indicators And Gauges - Body Electrical System - Hyundai Elantra MD 2010-2015 Service manualHyundai Elantra MD/UD: Instrument Cluster. Schematic Diagrams

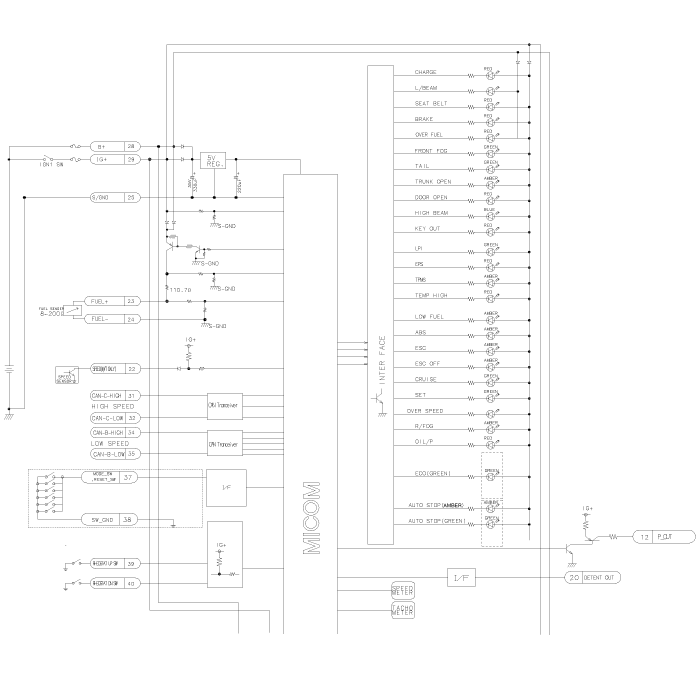

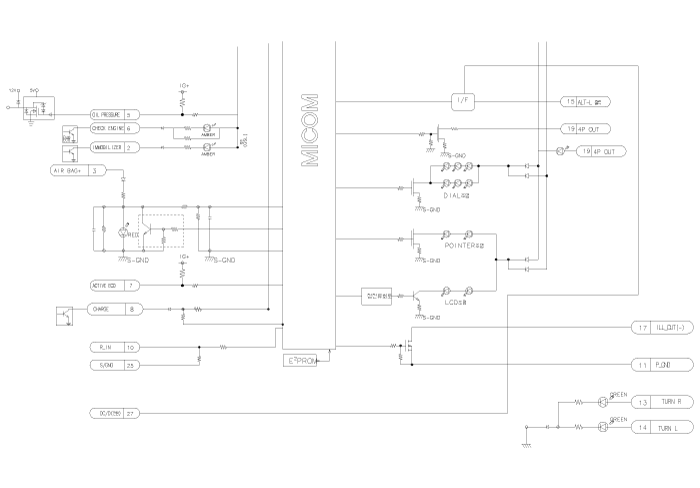

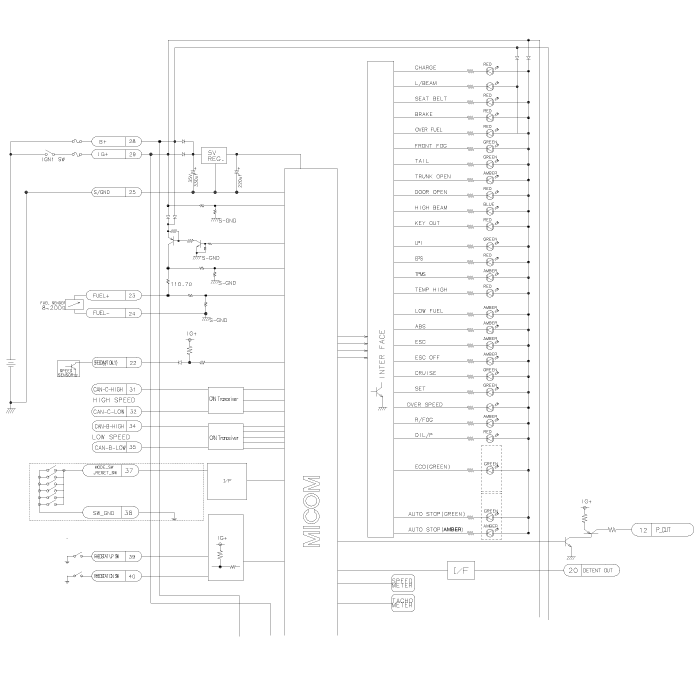

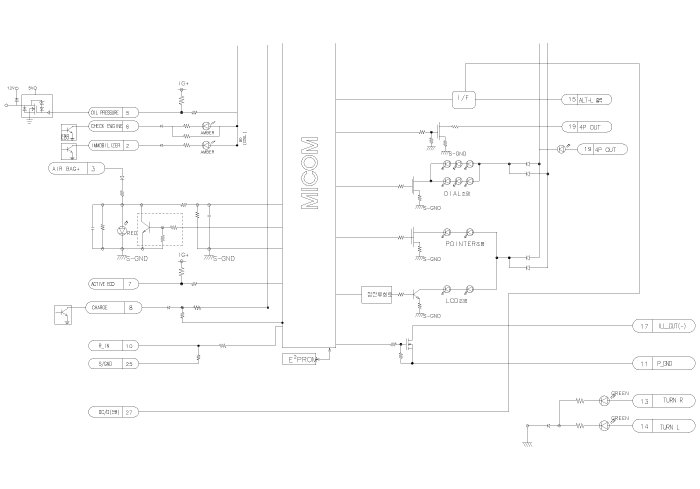

Circuit Diagram

[Super vision]

[General]
