Hyundai Elantra MD/UD: Inspection - Power Outside Mirror Switch. Repair procedures - Power Door Mirrors - Body Electrical System - Hyundai Elantra MD 2010-2015 Service manualHyundai Elantra MD/UD: Inspection

1.
Disconnect the power door mirror switch module connector from front door trip panel.
2.

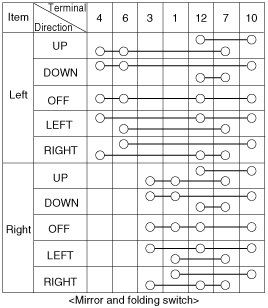

Check for the continuity between terminals of power door mirror switch according to the table.

Removal
1. Disconnect the negative(-) battery terminal. 2. Remove the front door trim. (Refer to the BD group - "Front door") ...
