Repair procedures
1. |
Disconnect the negative (-) battery
terminal. |
2. |
Remove the crash pad lower panel.
(Refer to Body - "Crash Pad")
|
3. |
Remove the steering column upper
& Lower shroud. |
4. |
Remove the ignition switch (A)
and disconnecting the Key Warning / immobilizer connector.

|
5. |
If it is necessary to remove
the key lock cylinder (A), remove the key lock cylinder (A) after pushing
lock pin (B) with key ACC.


|
6. |
Installation is the reverse of
removal procedure. |
1. |

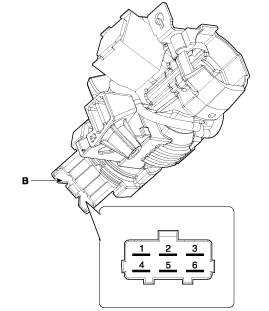

Disconnect the ignition switch
connector (A) and key warning switch connector (B) from under the steering
column.


|
2. |

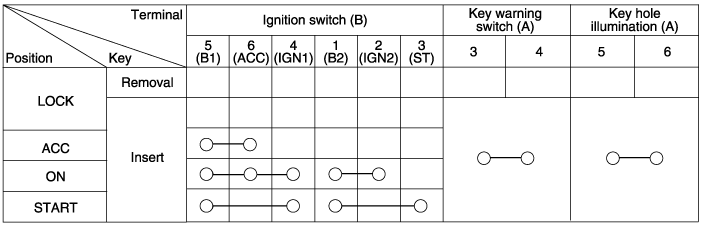

Check for continuity between
the terminals. |
3. |
If continuity is not specified,
replace the switch.

|
