Hyundai Elantra CN7: Ignition Switch Assembly
Repair procedures
| Replacement |
| 1. | Disconnect the negative (-) battery terminal. |
| 2. | Remove the crash pad lower panel. (Refer to Body - "Crash Pad") |
| 3. | Remove the steering column upper & Lower shroud. |

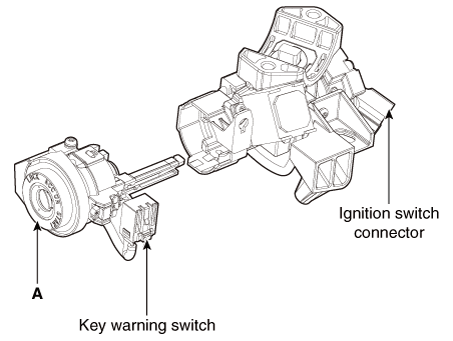

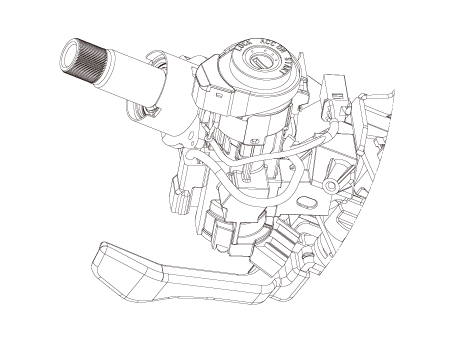

| 4. | Remove the ignition switch and disconnecting the Key Warning / immobilizer connector.
|

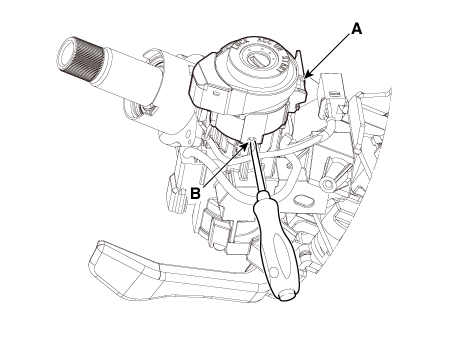

| 5. | If it is necessary to remove the key lock cylinder (A), remove the key lock cylinder (A) after pushing lock pin (B) with key ACC.
|
| 6. | Installation is the reverse of removal procedure. |
| Inspection |

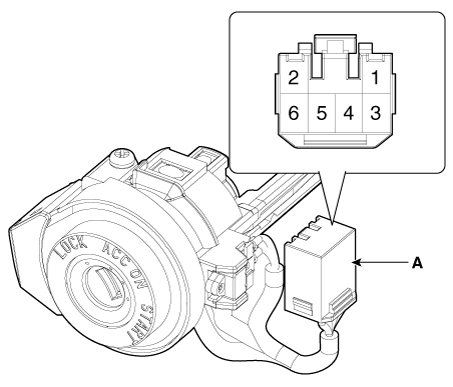

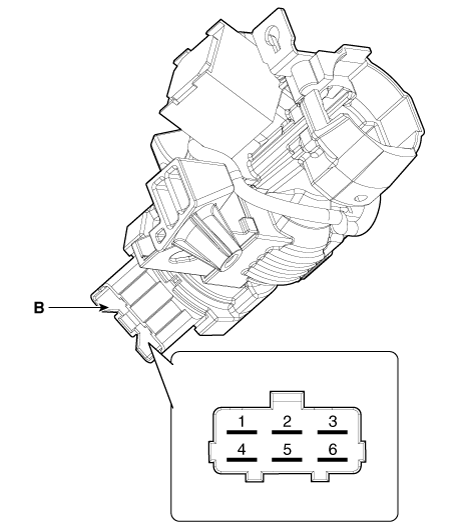

| 1. | Disconnect the ignition switch connector (A) and key warning switch connector (B) from under the steering column.
|

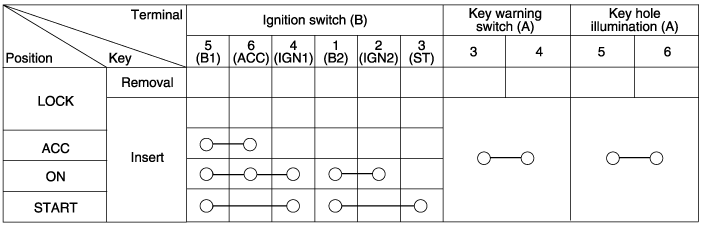

| 2. | Check for continuity between the terminals. |
| 3. | If continuity is not specified, replace the switch.
|
