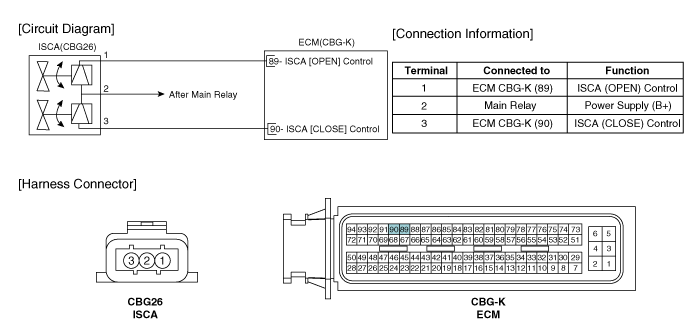

Circuit Diagram

Idle Speed Control Actuator (ISCA). Specifications

Specification ITems Specification Closing Coil Resistance (Ω) 14.6 ~ 16.2 at 20°C (68°F) Opening Coil Resistance (Ω ...

Idle Speed Control Actuator (ISCA). Repair procedures

Component Inspection 1. Turn ignition switch OFF. 2. Disconnect ISCA connector. 3. Measure resistance between ...
