Hyundai Elantra CN7: Identification Numbers

Seventh generation (CN7; 2021–2024) / Hyundai Elantra CN7 2021-2024 Workshop Manual / General Information / Identification Numbers

General information

Identification Number

Identification Number Description

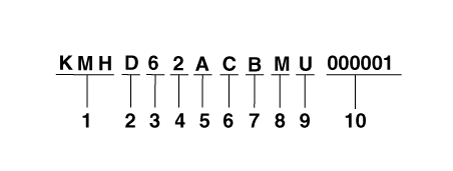

Vehicle Identification Number

1.	World Manufacturer Identifier (WMI) - KMF : Commercial vehicle (Van) - KMH : Passenger vehicle or MPV(Multipurpose Passenger Vehicle)/SUV(Sports Utility Vehicle)/RV(Recreational Vehicle) - KMJ : Van - KM8 : MPV/SUV/RV (For U.S.A, Canada, Mexico only)

2.	Vehicle line - L : CN7

3.	Model & Series - L : Low grade (L) - M : Middle-Low grade (GL) - N : Middle grade (GLS, JSL, TAX) - P : Middle-High grade (HGS) - R : High grade (TOP) - S : Premium GL grade (PGL) - T : Super HGSL grade (SGH)

Body/Cabin type, Gross Vehicle Weight Rating

KMF (Commercial vehicle / Van)

Except U.S.A, Canada, Mexico, Gulf Cooperation Council, China

- X : Standard Cabin / Semi-Bonnet

- Y : Double Cabin / Bonnet

- Z : Super Cabin / Box

For U.S.A, Canada, Mexico, Gulf Cooperation Council, China

- 3 : Standard Cabin Class-E 4×2 / Semi-Bonnet Class-E 4×2

- 4 : Standard Cabin Class-E 4×4 / Semi-Bonnet Class-E 4×4

- 5 : Standard Cabin Class-F 4×2 / Semi-Bonnet Class-F 4×2

- 6 : Standard Cabin Class-F 4×4 / Semi-Bonnet Class-F 4×4

- 7 : Double Cabin Class-E 4×2 / Bonnet Class-E 4×2

- 8 : Double Cabin Class-E 4×4 / Bonnet Class-E 4×4

- 9 : Double Cabin Class-F 4×2 / Bonnet Class-F 4×2

- 0 : Double Cabin Class-F 4×4 / Bonnet Class-F 4×4

- A : Super Cabin Class-E 4×2 / Box Class-E 4×2

- B : Super Cabin Class-E 4×4 / Box Class-E 4×4

- C : Super Cabin Class-F 4×2 / Box Class-F 4×2

- D : Super Cabin Class-F 4×4 / Box Class-F 4×4

KMH

- 1 : Limousine

- 2 : Sedan - 2 door

- 3 : Sedan - 3 door

- 4 : Sedan - 4 door

- 5 : Sedan - 5 door

- 6 : Coupe

- 7 : Convertible

- 8 : Wagon

- 9 : Commercial Van

- 0 : Pick-Up

KMJ

- 1 : Box

- 2 : Bonnet

- 3 : Semi-Bonnet

KM8

- 1 : Wagon 4×2 Class-A

- 2 : Wagon 4×2 Class-B

- 3 : Wagon 4×2 Class-C

- 4 : Wagon 4×2 Class-D

- 5 : Wagon 4×2 Class-E

- 6 : Wagon 4×2 Class-F

- 7 : Wagon 4×2 Class-G

- A : Wagon 4×4 Class-A

- B : Wagon 4×4 Class-B

- C : Wagon 4×4 Class-C

- D : Wagon 4×4 Class-D

- E : Wagon 4×4 Class-E

- F : Wagon 4×4 Class-F

- G : Wagon 4×4 Class-G

Restraint system, Brake system

KMH, KM8

Except U.S.A, Canada, Mexico

- 0 : Both side - None

- 1 : Both side - Active belt

- 2 : Both side - Passive belt

For U.S.A, Canada, Mexico

Code	Seat belt	Front air bag		Knee air bag		Side air bag			Curtain air bag
Code	Seat belt	Driver's	Passenger's	Driver's	Passenger's	1st row	2nd row	3rd row	1st row	2nd row	3rd row
A	°	°	°	×	×	°	×	×	°	°	×
B	°	°	°	×	×	×	×	×	×	×	×
C	°	°	°	×	×	°	×	×	°	°	°
D	°	°	°	×	×	°	°	×	°	°	×
E	°	°	×	×	×	×	×	×	×	×	×
F	°	°	°	×	×	°	×	×	×	×	×
N	°	×	×	×	×	×	×	×	×	×	×

KMJ

Except U.S.A, Canada, Mexico

- 7 : Hydraulic brake system

- 8 : Pneumatic brake system

- 9 : Mixed brake system

For U.S.A, Canada, Mexico

- X : Hydraulic brake system

- Y : Pneumatic brake system

- Z : Mixed brake system

KMF

Except U.S.A, Canada, Mexico

- 7 : Hydraulic brake system

- 8 : Pneumatic brake system

- 9 : Mixed brake system

For U.S.A, Canada, Mexico

Code

Restraint system

Brake system

Seat belt

Front air bag

Knee air bag

Side air bag

Curtain air bag

Hydrauric

Pneumatic

Mixed

Driver's

Passenger's

Driver's

Passenger's

1st row

2nd row

3rd row

1st row

2nd row

3rd row

6.	Engine type - B : Gasoline Engine (GAMMA G 1.6 MPI) - E : Gasoline Engine (GAMMA II G 1.6 MPI) - F : Gasoline Engine (GAMMA II G 1.6 T-GDI) - G : Gasoline Engine (NU G 2.0 MPI)

Check digit or Driver’s side & Transmission

Except U.S.A, Canada, Mexico, Gulf Cooperation Council, China, Yemen

- A : LHD & MT

- B : LHD & AT

- C : LHD & MT+Transfer

- D : LHD & AT+Transfer

- E : LHD & CVT

- F : LHD & Reducer

- G : LHD & DCT

- H : LHD & DCT + Transfer

- L : RHD & MT

- M : RHD & AT

- N : RHD & MT+Transfer

- S : RHD & AT+Transfer

- T : RHD & CVT

- U : RHD & Reducer

- V : RHD & DCT

- W : RHD & DCT + Transfer

For U.S.A, Canada, Mexico, Gulf Cooperation Council, China, Yemen

- Check digit : 0 ~ 9, ×

8.	Model year - L : 2020, M : 2021, N : 2022, P : 2023, R : 2024 .......

Plant of production

–	A : Asan (Korea)

–	B : Beijing (China)

–	C : Cheonju (Korea)

–	H : Alabama (U.S.A)

–	M : Chennai (India)

–	U : Ulsan (Korea)

–	Z : Izmit (Turkey)

–	J : Ostrava (Czech)

–	P : Piracicaba (Brazil)

10.

Vehicle production sequence number

–	000001 ~ 999999

Paint Code

Code	Color
NKA	Phantom Black
A5G	Amazon Gray
C5G	Cyber Gray
USS	Gray (electric shadow)
M6T	Fluid metal
WAW	Pola White
PR2	Fiery Red
YR2	lava orange
YP5	Intense Blue

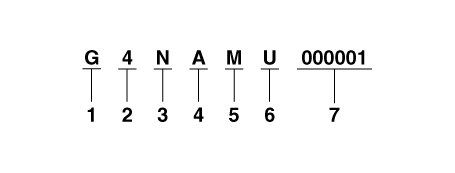

Engine Number

1.	Engine fuel - G : Gasoline

2.	Engine range - 4 : 4 cycle 4 cylinder

3.	Engine development order and capacity - F : GAMMA engine (Gasoline) - N : NU engine (Gasoline)

4.	Engine Capacity - G : 1591cc (Gasoline 1.6 MPI) - M : 1598cc (Gasoline 1.6 MPI) - L : 1999cc (Gasoline 2.0 MPI) - P : 1598cc (Gasoline 1.6 T-GDI)

5.	Production Year - L : 2020, M : 2021, N : 2022, P : 2023, R : 2024 .......

6.	Plant of production - A : Asan (Korea) - B : Beijing (China) - H : Hwasung (Korea) - K : Montgomery (U.S.A) - M : Chennai (India) - P : Poseung (Korea) - S : Sohari (Korea) - T : Izmit (Turkey) - U : Ulsan (Korea) - W : Shandong (China) - Z : Zilina (Slovakia) - 1 : Yancheng (China)

7.	Engine production sequence number - 000001 ~ 999999

Transaxle Number

Automatic (A6MF1-2)

1.	Model - RB : A6MF 1-2

2.	Model year - L : 2020, M : 2021, N : 2022, P : 2023, R : 2024 .......

3.	Final gear ratio - R : 3.270

4.	Detailed classification - G : Gasoline 2.0 MPI

5.	Plant of production - 2 : Powertech Plant2 - 4 : Powertech Plant4 - U : Ulsan Plant 1 - S : Ulsan Plant 2 - N : Ulsan Plant 3 - H : Hwasung

6.	Transaxle production sequence number - 000001 ~ 999999

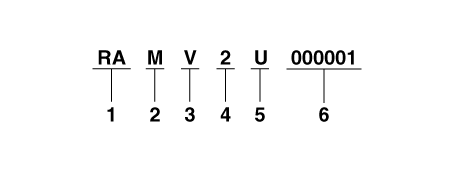

Automatic (A6GF1-2)

1.	Model - RA : A6GF 1-2

2.	Model year - L : 2020, M : 2021, N : 2022, P : 2023, R : 2024 .......

3.	Final gear ratio - V : 3.612

4.	Detailed classification - 2 : Gasoilne 1.6 MPI

5.	Plant of production - 2 : Powertech Plant2 - 4 : Powertech Plant4 - U : Ulsan Plant 1 - S : Ulsan Plant 2 - N : Ulsan Plant 3 - H : Hwasung

6.	Transaxle production sequence number - 000001 ~ 999999

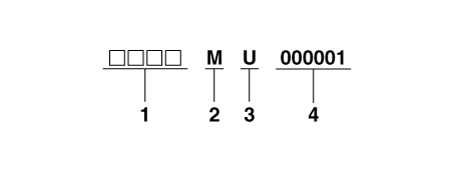

Manual (M6CF1)

1.	Assembly code of plant

2.	Model year - L : 2020, M : 2021, N : 2022, P : 2023, R : 2024 .......

3.	Plant of production - H : Hwasung (Korea) - U : Ulsan (Korea) - W : Wia

4.	Transaxle production sequence number - 000001 ~ 999999

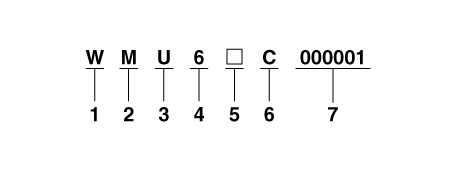

Manual (M6CF3-1)

1.	Model - W : M6CF3-1

2.	Model year - L : 2020, M : 2021, N : 2022, P : 2023, R : 2024 .......

3.	Plant of production - U : Ulsan - H : Hwasung

4.	Speed - 6 : 6-speed

Spare

6.	Final gear ratio - A : 3.471 - B : 3.833 - C : 3.941 - D : 4.059 - E : 4.188 - F : 4.267 - G : 4.400 - H : 3.706 - J : 3.647 - K : 4.333 - L : 4.467 - M : 4.563 - N : 3.250 - P : 3.048 - R : 3.722

7.	Transaxle production sequence number - 000001 ~ 999999
