Hyundai Elantra MD/UD: Fuse/relay panel description - Fuses - Maintenance - Hyundai Elantra MD 2010-2015 Owners manualHyundai Elantra MD/UD: Fuse/relay panel description

Inside the fuse/relay panel covers, you can find the fuse/relay label describing fuse/relay name and capacity.

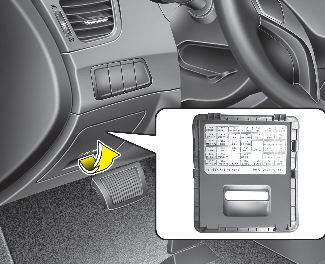

Inner panel fuse panel

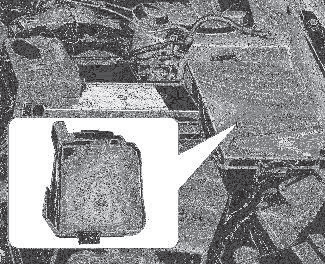

Engine compartment fuse panel

Engine compartment fuse panel

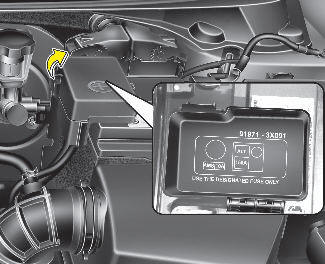

Engine room (battery terminal cover)

Engine room (battery terminal cover)

✽ NOTICE

✽ NOTICE

Not all fuse panel descriptions in this manual may be applicable to your vehicle. It is accurate at the time of printing. When you inspect the fuse panel in your vehicle, refer to the fuse panel label.

Multi fuse
If the multi fuse is blown, it must be removed as follows: 1. Remove the fuse panel in the engine compartment. 2. Remove the nuts shown in the picture above. 3. Replace the fuse with a new one of ...
