Hyundai Elantra MD/UD: Front Seat. Components and
Components Location - Seat & Power Seat - Body (Interior and Exterior) - Hyundai Elantra MD 2010-2015 Service manualHyundai Elantra MD/UD: Front Seat. Components and Components Location

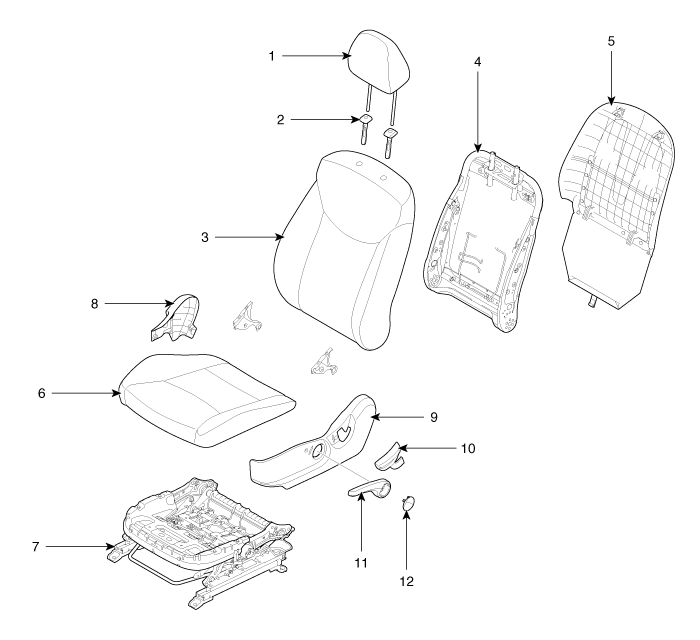

Components

1. Headrest
2. Headrest guide
3. Front seat back cover
4. Front seat back frame
5. Front back cover
6. Front seat cushion cover
7. Front seat cushion frame
8. Front shield inner cover
9. Front shield outer cover
10. Recliner cover
11. Height lever
12. Height lever cap


Front Seat. Repair procedures
Replaccement Seat Assembly Replacement 1. Remove the seat track mounting cover. 2. After loosening the seat assembly mounting bolts, remov ...
