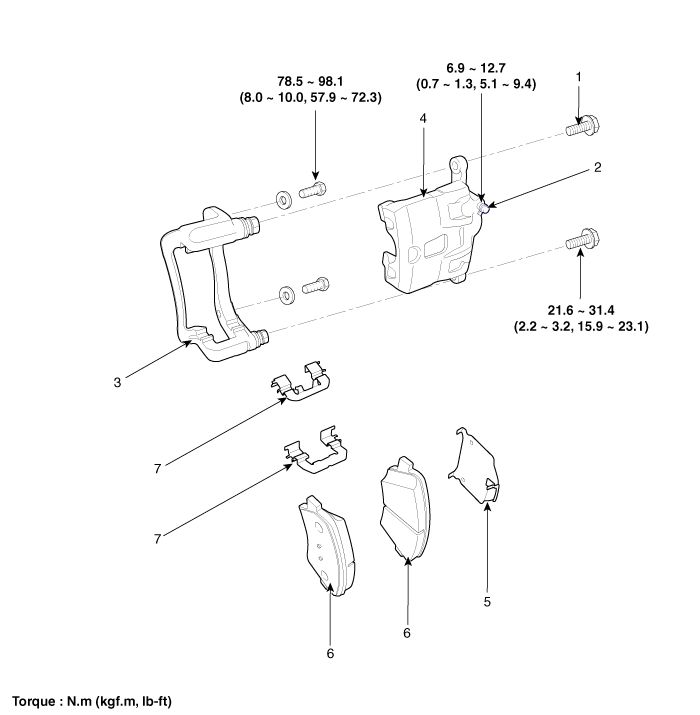

Components

1. Guide rod bolt
2. Bleed screw
3. Caliper carrier
4. Caliper body
 5. Inner pad shim
6. Brake pad
7. Pad retainer
