Hyundai Elantra MD/UD: Filter replacement - Climate control air filter - Maintenance - Hyundai Elantra MD 2010-2015 Owners manualHyundai Elantra MD/UD: Filter replacement

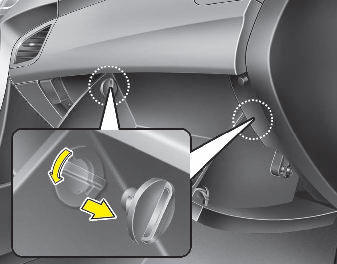

1. With the glove box open, remove the stoppers by turning them counterclockwise

1. With the glove box open, remove the stoppers by turning them counterclockwise on both sides.

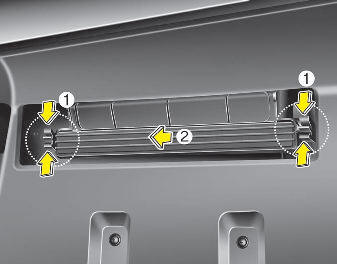

2. Remove the climate control air filter cover (2) while pressing the lock (1)

2. Remove the climate control air filter cover (2) while pressing the lock (1) on the right of the cover.

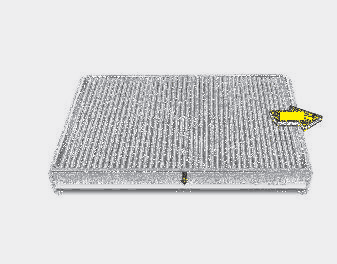

3. Replace the climate control air filter.

3. Replace the climate control air filter.

4. Reassemble in the reverse order of disassembly.

✽ NOTICE

When replacing the climate control air filter install it properly. Otherwise, the system may produce noise and the effectiveness of the filter may be reduced.

Filter inspection
The climate control air filter should be replaced according to the Maintenance Schedule. If the vehicle is operated in severely air-polluted cities or on dusty rough roads for a long period, it sh ...
