Hyundai Elantra CN7: Exhaust Emission Control System - Emission Control System - Hyundai Elantra CN7 2021-2024 Workshop ManualHyundai Elantra CN7: Exhaust Emission Control System

Description and operation

Description
Exhaust emissions (CO, HC, NOx) are controlled by a combination of engine modifications and the addition of special control components.
Modifications to the combustion chamber, intake manifold, camshaft and ignition system form the basic control system.
These items have been integrated into a highly effective system which controls exhaust emissions while maintaining good drivability and fuel economy.
Air/Fuel Mixture Control System [Multiport Fuel Injection (MFI) System]
The MFI system uses signals from the heated oxygen sensor to activate and control the injector installed in the manifold for each cylinder, thus precisely regulating the air/fuel mixture ratio and reducing emissions.
This in turn allows the engine to produce exhaust gas of the proper composition to permit the use of a three way catalyst. The three way catalyst is designed to convert the three pollutants [hydrocarbons (HC), carbon monoxide (CO), and oxides of nitrogen (NOx)] into harmless substances. There are two operating modes in the MFI system.
1.
Open Loop air/fuel ratio is controlled by information programmed into the ECM.
2.
Closed Loop air/fuel ratio is adjusted by the ECM based on information supplied by the oxygen sensor.

Catalytic Converter

Description and operation
Description
The catalytic converter of the gasoline engine is a three way catalyst. It oxidizes carbon monoxide and hydrocarbons (HC), and separates oxygen from the oxides of nitrogen (NOx).

Repair procedures
Removal
[Catalytic Converter (WCC)]
1.
Remove the exhaust manifold.
(Refer to Engine Mechanical System - "Exhaust Manifold")
[Catalytic Converter (UCC)]
1.
Remove the Center Muffler.
(Refer to Engine Mechanical System - "Center Muffler")
Installation
1.
Install in the reverse order of removal.

CVVT (Continuous Variable Valve Timing) System

Description and operation
Description
Continuous Variable Valve Timing (CVVT) system advances or retards the valve timing of the intake and exhaust valve in accordance with the ECM control signal which is calculated by the engine speed and load.
By controlling CVVT, the valve over-lap or under-lap occurs, which makes better fuel economy and reduces exhaust gases (NOx, HC). CVVT improves engine performance through reduction of pump loss, internal EGR effect, improvement of combustion stability, improvement of volumetric efficiency, and increase of expansion work.

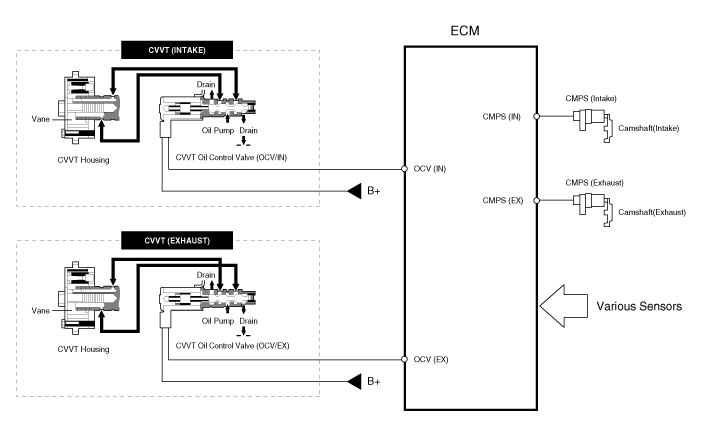

This system consists of:
the CVVT Oil Control Valve (OCV) which supplies the engine oil to the cam phaser or runs out the engine oil from the cam phaser in accordance with the ECM PWM (Pulse With Modulation) control signal,
and the Cam Phaser which varies the cam phase by using the hydraulic force of the engine oil.
The engine oil released from the CVVT oil control valve varies the cam phase in the direction (Intake Advance/Exhaust Retard) or in the opposite direction (Intake Retard/Exhaust Advance) of the engine rotation by rotating the rotor connected to the camshaft inside the cam phaser.

Operation Principle
The CVVT has the mechanism of rotating the rotor vane with hydraulic force generated by the engine oil supplied to the advance or retard chamber in accordance with the CVVT oil control valve control.

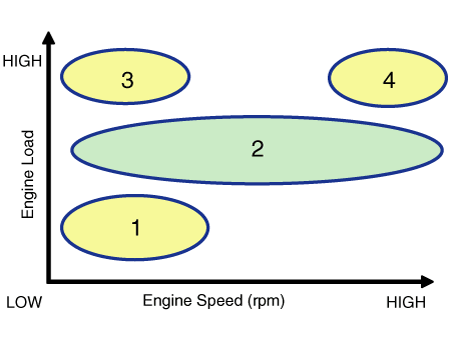

[CVVT System Mode]

(1) Low Speed / Low Load
(2) Partial Load


(3) Low Speed / High Load
(4) High Speed / High Load



Driving Condition
Exhaust Valve
Intake Valve
Valve Timing
Effect
Valve Timing
Effect

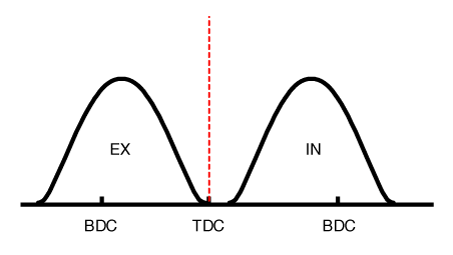

(1) Low Speed
/Low Load
Completely Advance
* Valve Under-lap
* Improvement of combustion stability
Completely Retard
* Valve Under-lap
* Improvement of combustion stability

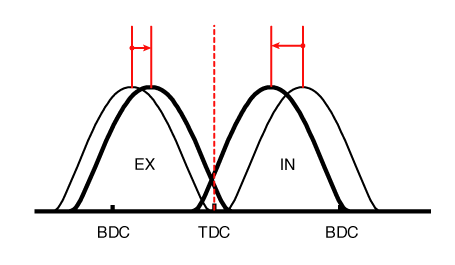

(2) Part Load
Retard
* Increase of expansion work
* Reduction of pumping loss
* Reduction of HC
Retard
* Reduction of pumping loss

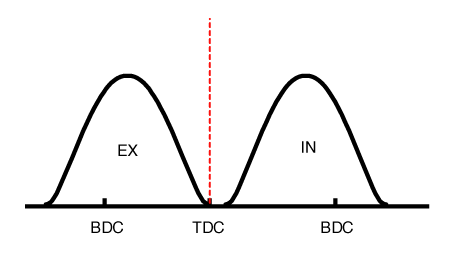

(3) Low Speed
/High Load
Retard
* Increase of expansion work
Advance
* Prevention of intake back flow (Improvement of volumetric efficiency)

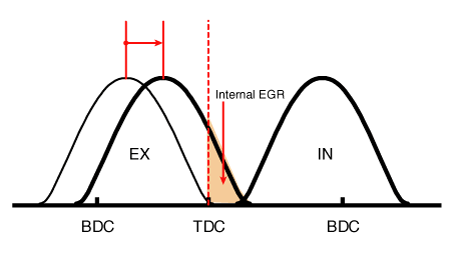

(4) High Speed
/High Load
Advance
* Reduction of pumping loss
Retard
* Improvement of volumetric efficiency

Evaporative Emission Control System
Schematic diagrams Schematic Diagram1. Air cleaner2. Delivery pipe & injector3. Engine4. Purge control solenoid valve (PCSV)5. Fuel tank air filter6. Fuel pump7. Fuel filler neck8. Fuel filler ...
