Hyundai Elantra MD/UD: ETC (Electronic Throttle Control) System. Schematic Diagrams - Engine Control System - Fuel System - Hyundai Elantra MD 2010-2015 Service manualHyundai Elantra MD/UD: ETC (Electronic Throttle Control) System. Schematic Diagrams

Circuit Diagram

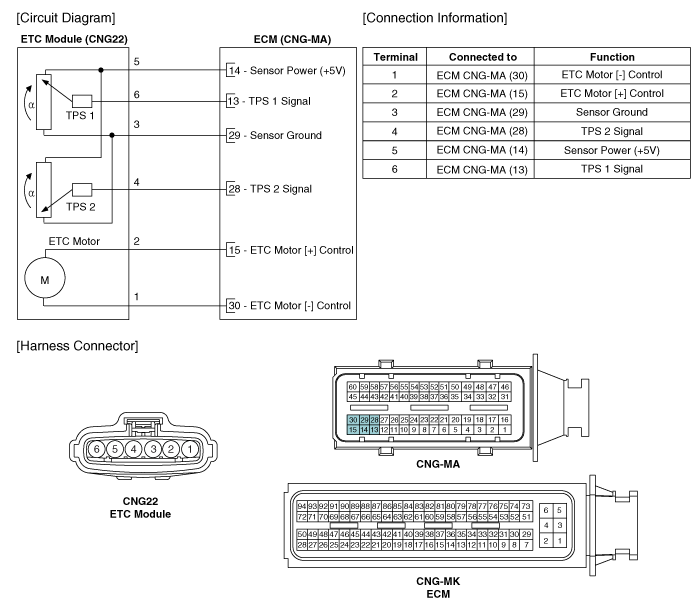

(M/T)

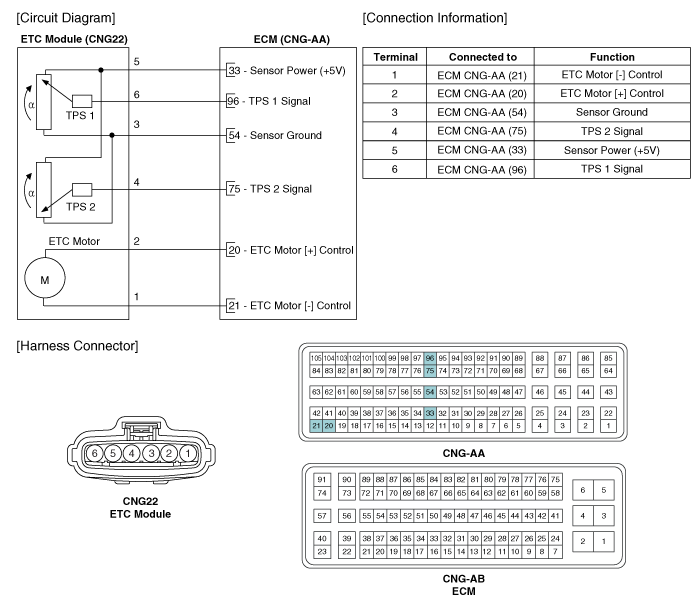

(A/T)


ETC (Electronic Throttle Control) System. Specifications
Specification Throttle angle (°) Output voltage (V) [Vref = 5.0V] TPS1 TPS2 0 0.5 4.5 10 ...
