Hyundai Elantra MD/UD: ESC Control Module. Components and Components Location - ESC(Electronic Stability Control) System - Brake System - Hyundai Elantra MD 2010-2015 Service manualHyundai Elantra MD/UD: ESC Control Module. Components and Components Location

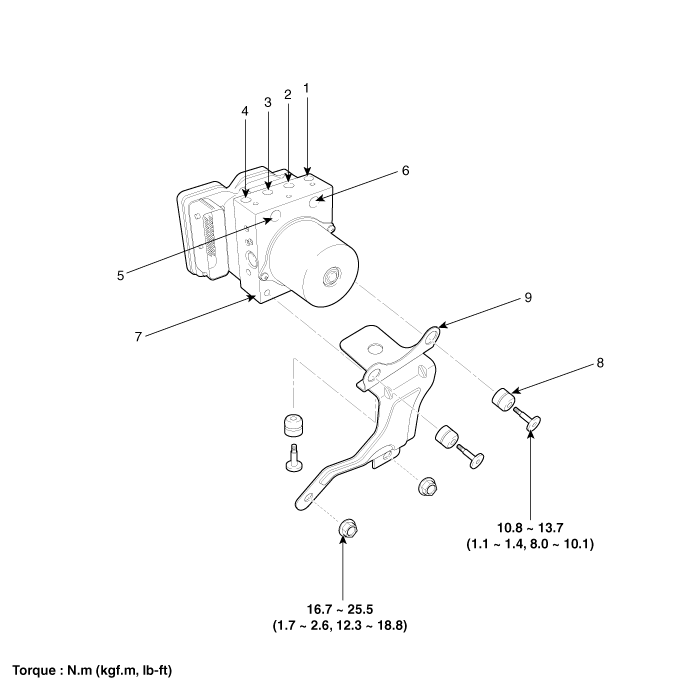

Components

1. Front - left tube
2. Rear - right tube
3. Rear - left tube
4. Front - right tube
5. MC2
 6. MC1
7. ESC control module(HECU)
8. Damper
9. Bracket
