Hyundai Elantra MD/UD: Engine temperature gauge - Gauges - Instrument cluster - Features of your vehicle - Hyundai Elantra MD 2010-2015 Owners manualHyundai Elantra MD/UD: Engine temperature gauge

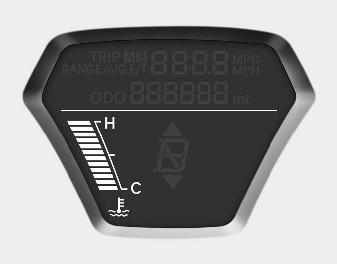

This gauge shows the temperature of the engine coolant when the ignition switch

This gauge shows the temperature of the engine coolant when the ignition switch is ON.

Do not continue driving with an overheated engine. If your vehicle overheats, refer to “If the engine overheats” in section 6.

If the gauge moves beyond the normal range area toward the “H” position, it indicates CAUTION

If the gauge moves beyond the normal range area toward the “H” position, it indicates overheating that may damage the engine.

Never remove the radiator cap when the engine is hot. The engine coolant is underWARNING

Never remove the radiator cap when the engine is hot. The engine coolant is under pressure and could cause severe burns. Wait until the engine is cool before adding coolant to the reservoir.
