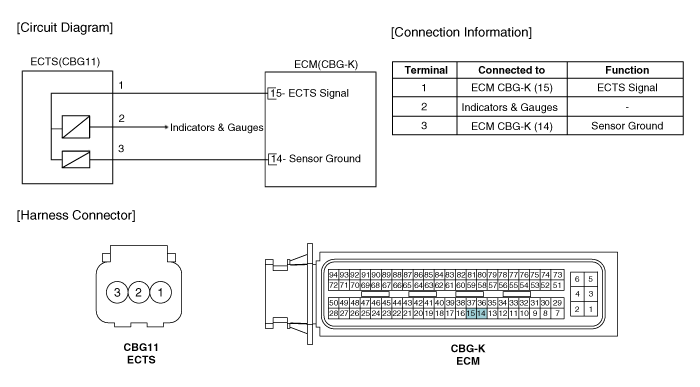

Circuit Diagram

Engine Coolant Temperature Sensor (ECTS). Specifications

Specification Temperature [°C(°F)] Resistance(kΩ) -40(-40) 48.14 -20(-4) 14.13 ~ 16.83 0(32) ...

Engine Coolant Temperature Sensor (ECTS). Repair procedures

Component Inspection 1. Turn ignition switch OFF. 2. Disconnect ECTS connector. 3. Remove the ECTS. ...
