Hyundai Elantra MD/UD: Electric Oil Pump. Schematic Diagrams - ISG (Idle Stop & Go) System - Fuel System - Hyundai Elantra MD 2010-2015 Service manualHyundai Elantra MD/UD: Electric Oil Pump. Schematic Diagrams

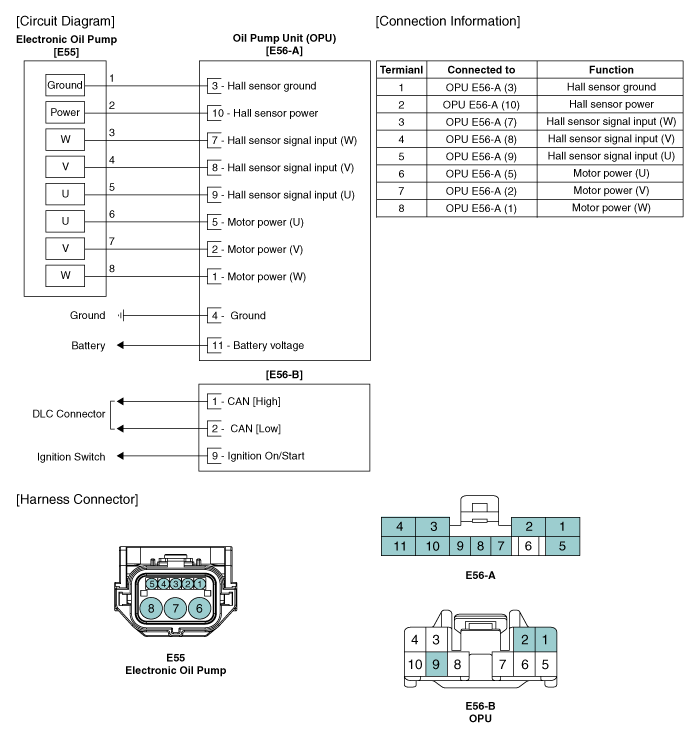

Circuit Diagram


Electric Oil Pump. Description and Operation
Description This transaxle has a standard Mechanical Oil Pump (MOP) linked to the input shaft to generates oil pressure when input shaft rotates. But, this transaxle equipped with ISG sy ...
