Hyundai Elantra AD: Driveshaft Assembly - Driveshaft and axle - Hyundai Elantra AD 2017-2020 Service ManualHyundai Elantra AD: Driveshaft Assembly

Front Driveshaft Components and Components Location

Components (1)

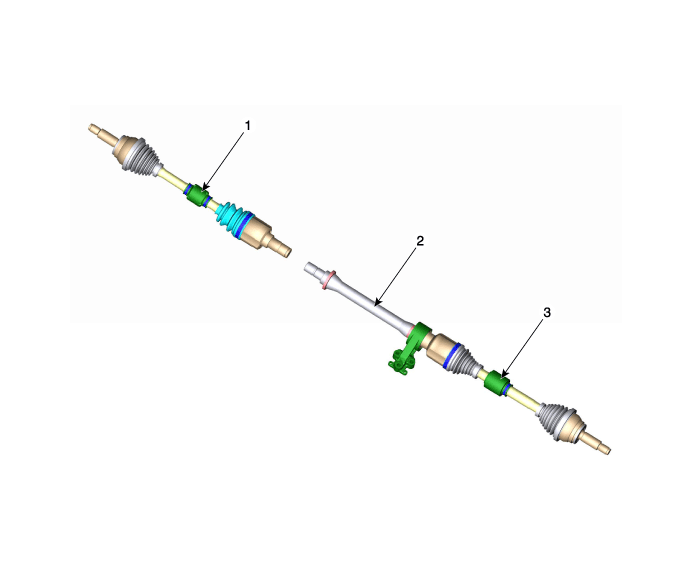

[GAMMA T-GDI]

1. Driveshaft (LH)
2. Inner shaft bearing bracket
 3. Driveshaft (RH)

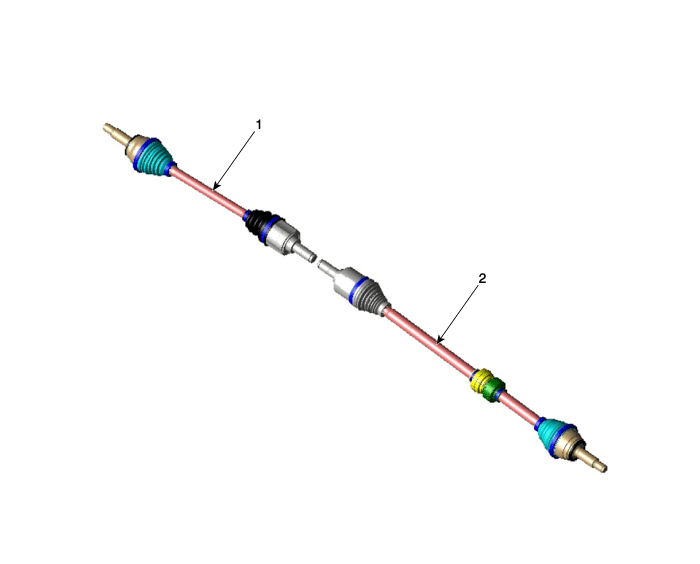

[Except GAMMA T-GDI]

1. Driveshaft (LH)
 2. Driveshaft (RH)

Components (2)

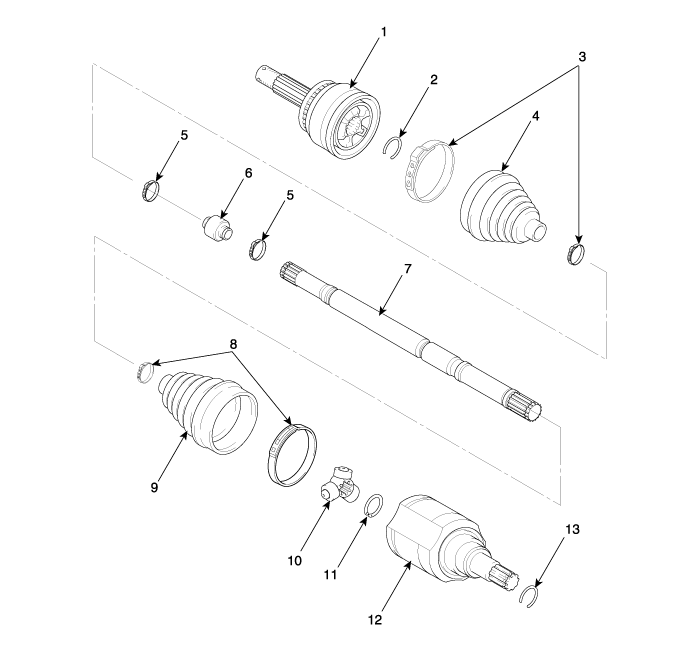

[RH]

1. BJ assembly
2. BJ circlip
3. BJ boot band
4. BJ boot
5. Dynamic damper band
6. Dynamic damper
7. Shaft
8. TJ boot band
9. TJ boot

 10. Spider assembly
11. Snap ring
12. TJ case
13. Clip

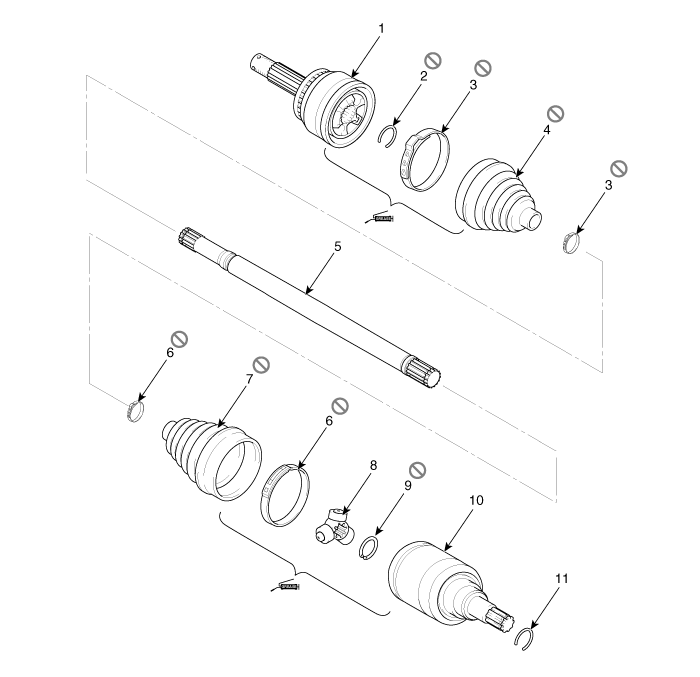

[LH]

1. BJ assembly
2. Circlip
3. BJ boot band
4. BJ boot
5. Shaft
6. TJ boot band
7. TJ boot
8. Spider assembly

 9. Snap ring
10. TJ Case
11. Clip

Front Driveshaft Repair procedures

Removal
1. Loosen the wheel nuts slightly.

Raise the vehicle, and make sure it is securely supported.
2. Remove the front wheel and tire (A) from front hub.
Tightening torque :

107.9 ~ 127.5 N.m (11.0 ~ 13.0 kgf.m, 79.6 ~ 94.0 lb-ft)


• Be careful not to damage the hub bolts when removing the front wheel and tire (A).
3. Loosen the driveshaft caulking nut (A).


• The driveshaft lock nut should be replaced with new ones.
• After installation driveshaft lock nut, stake the lock nut using a chisel and hammer as shown in the illustration below.
Caulking depth : 1.5 mm (0.591 in.)

4. Remove the tie rod end ball joint.
(1) Rmove the split pin (C).
(2) Loosen the nut (B).
(3) Using SST(09568-1S100) separate the ball joint (A) from the knuckle.
Tightening torque :

23.5 ~ 33.3 N.m (2.4 ~ 3.4 kgf.m, 17.4 ~ 24.6 lb-ft)

5. Loosen the lower arm nut (A) and then remove the lower arm ball joint by using SST(09568-1S100).
Tightening torque :

58.8 ~ 70.6 N.m (6.0 ~ 7.2 kgf.m, 43.4 ~ 52.1 lb-ft)


Do not reuse the lower arm lock nut(A).
6. Using a plastic hammer (A), remove the front driveshaft (B) from the knuckle assembly (C).


• Be careful not to damage the boot and tone wheel.
7. Loosen the inner shaft mounting bolts and then remove the driveshaft. [GAMMA T-GDI RH Only]
Tightening torque :

49.0 ~ 68.6 N.m (5.0 ~ 7.0 kgf.m, 36.2 ~ 50.6 lb-ft)

8. Insert a pry bar between the transaxle case and joint case, and separate the driveshaft from the transaxle case.

[RH]

[LH]


• Use a pry bar (A) being careful not to damage the transaxle and joint.
• Do not insert the pry bar (A) too deep, as this may cause damage to the oil seal.
• Do not pull the driveshaft by excessive force it may cause components inside the joint kit to dislodge resulting in a torn boot or a damaged bearing.
• Plug the hole of the transaxle case with the oil seal cap to prevent contamination.
• Support the driveshaft properly.
• Replace the retainer ring whenever the driveshaft is removed from the transaxle case.
9. To install, reverse the removal procedure.
10. Check the front alignment.

(Refer to Suspension System - "Front Alignment")

Dynamic Damper Components and Components Location

Components

1. BJ assembly
2. BJ circlip
3. BJ boot band
4. BJ boot
5. Dynamic damper band
6. Dynamic damper
7. Shaft
8. TJ boot band
9. TJ boot

 10. Spider assembly
11. Snap ring
12. TJ housing
13. Clip

Dynamic Damper Repair procedures

Removal
1. Remove the front driveshaft.

(Refer to Driveshaft Assembly - "Front Driveshaft")
2. Remove the TJ joint assembly.

(Refer to Driveshaft Assembly - "TJ Joint")
3. Remove the remove the both side of band (B) of the dynamic damper (A).
4. Fix the driveshaft (A) with a vice (B) as illustrated.
5. Apply soap powder on the shaft to prevent being damaged between the shaft spline and the dynamic damper when the dynamic damper is removed.
6. Seperate the dynamic damper (A) from the shaft (B) carefully.
Installation
1. Apply soap powder on the shaft to prevent being damaged between the shaft spline and the dynamic damper.
2. Install the dynamic damper.
3. Install the dynamic damper band.
4. Using the SST(09495-39100), secure the TJ boot bands.


• Do not reuse the boot band.
5. Install the TJ joint assembly.

(Refer to Driveshaft Assembly - "TJ joint")
6. Install the front driveshaft.

(Refer to Driveshaft Assembly - "Front Driveshaft")
7. Check the front alignment.

(Refer to Suspension System - "Front Alignment")

TJ Joint Components and Components Location

Components
[RH]

1. BJ assembly
2. BJ circlip
3. BJ boot band
4. BJ boot
5. Dynamic damper band
6. Dynamic damper
7. Shaft
8. TJ boot band
9. TJ boot

 10. Spider assembly
11. Snap ring
12. TJ case
13. Clip

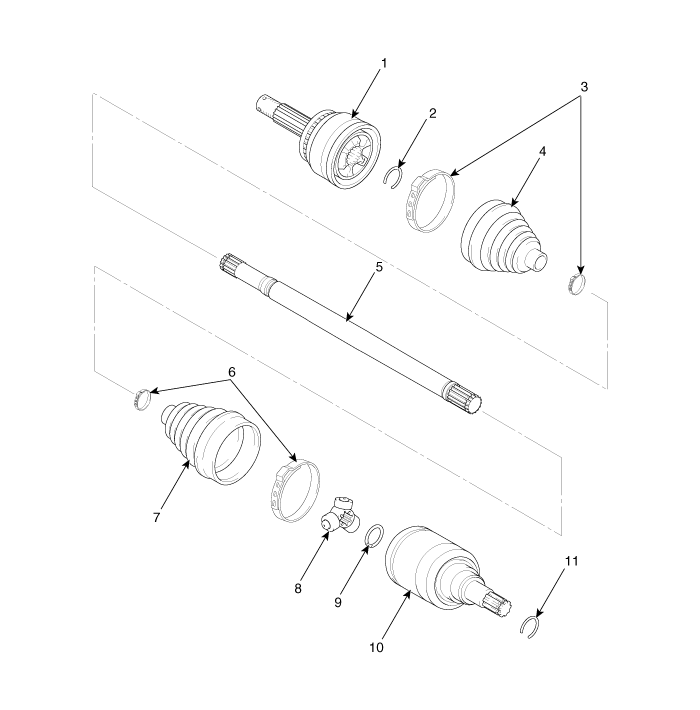

[LH]

1. BJ assembly
2. Circlip
3. BJ boot band
4. BJ boot
5. Shaft
6. TJ boot band
7. TJ boot
8. Spider assembly

 9. Snap ring
10. TJ Case
11. Clip

TJ Joint Repair procedures

Disassembly

• Special grease must be applied to the driveshaft joint. Do not substitute with another type of grease.
• The boot band should be replaced with a new one.
1. Remove the Front Driveshaft.

(Refer to Driveshaft Assembly - "Front Driveshaft")
2. Remove the housing circlip (B) from the driveshaft spline (A).
3. Remove both boot bands from the TJ housing.
4. Remove the TJ housing (A).


• Make alignment marks on spider roller assembly (A), joint case (B), and shaft spline (C) to aid reassembly.

5. Remove the snap ring (A) from the shaft.
6. Remove the spider assembly (B) from the driveshaft (A) using the special tool SST (09495-33000).
7. Clean the spider assembly.
8. Remove the TJ boot (A).

• For reusing the boot (A), wrap tape (B) around the driveshaft splines (C) to protect the boot (A).

Inspection
1. Check the driveshaft boots for damage and deterioration.
2. Check the driveshaft spline for wear or damage.
3. Check that there is no water or foreign material in the joint.
4. Check the spider assembly for roller rotation, wear or corrosion.
5. Check the groove inside the joint case for wear or corrosion.
6. Check the dynamic damper for damage or cracks.
Reassembly
1. Wrap tape around the driveshaft spline(TJ) to prevent damage to the boot.
2. Using the alignment marks (D) made during disassembly as a guide, install the spider assembly (A) and snap ring (B) on the driveshaft splines (C).
3. Add specified grease to the joint boot as much as it was wiped away at inspection.
4. Install the both boot band.
5. Using the SST (09495-39100), secure the TJ boot bands.


• Do not reuse the boot band.
6. Install the front driveshaft.

(Refer to Driveshaft Assembly - "Front Driveshaft")
7. Check the front alignment.

(Refer to Suspension System - "Front Alignment")

BJ Boot Components and Components Location

components (1)

1. BJ assembly
2. BJ circlip
3. BJ boot band
4. BJ boot
5. Dynamic damper band
6. Dynamic damper
7. Shaft
8. TJ boot band
9. TJ boot

 10. Spider assembly
11. Snap ring
12. TJ housing
13. Clip

components (2)

1. BJ assembly
2. Circlip
3. BJ boot band
4. BJ boot
5. Shaft
6. TJ boot band
7. TJ boot
8. Spider assembly
 9. Snap ring
10. TJ Case
11. Clip

BJ Boot Repair procedures

Removal
1. Remove the front driveshaft.

(Refer to Driveshaft Assembly - "Front Driveshaft")
2. Remove the TJ joint assembly.

(Refer to Driveshaft Assembly - "TJ Joint")
3. Remove the Dynamic damper.

(Refer to Driveshaft Assembly - "Dynamic Damper")
4. Using a plier or flat-tipped (-) screwdriver, remove the BJ boot bands (A).

5. Remove the BJ boot.
6. Install in the reverse order of removal.

• Do not disassemble the BJ assembly.
• Special grease must be applied to the driveshaft joint. Do not substitute with another type of grease.
• The boot band should be replaced with a new one.
7. Check the front alignment.

(Refer to Suspension System - "Front Alignment")
Installation
1. To install, reverse the removal procedure.
2. Using the SST(09495-3K000), secure the BJ boot bands.


• Do not reuse the boot band.
3. Install the TJ joint assembly.

(Refer to Driveshaft Assembly - "TJ joint")
4. Install the front driveshaft.

(Refer to Driveshaft Assembly - "Front Driveshaft")
5. Check the front alignment.

(Refer to Suspension System - "Front Alignment")
