Hyundai Elantra AD: Dimensions, Engine, Bulb Wattage - Specifications, Consumer Information and Reporting Safety Defects - Hyundai Elantra AD 2017–2020 Owners ManualHyundai Elantra AD: Dimensions, Engine, Bulb Wattage

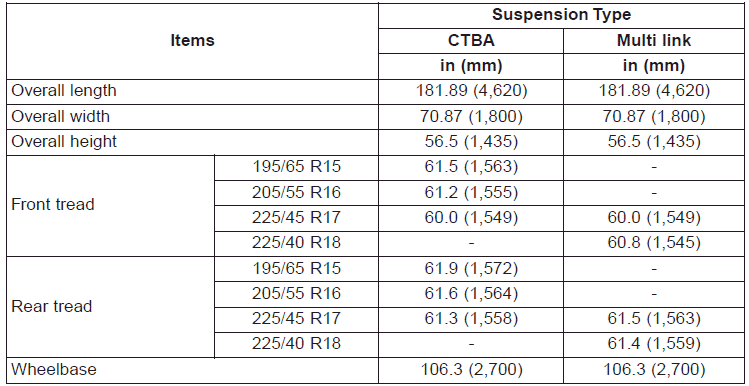

Dimensions

Hyundai Elantra. Dimensions, Engine, Bulb Wattage

CTBA : coupled torsion beam axle

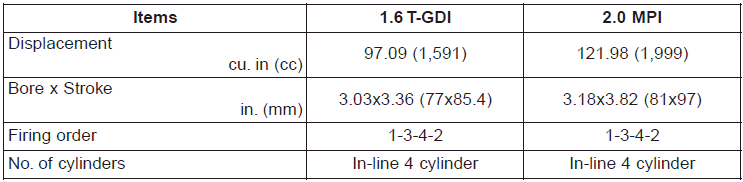

Engine

Hyundai Elantra. Dimensions, Engine, Bulb Wattage

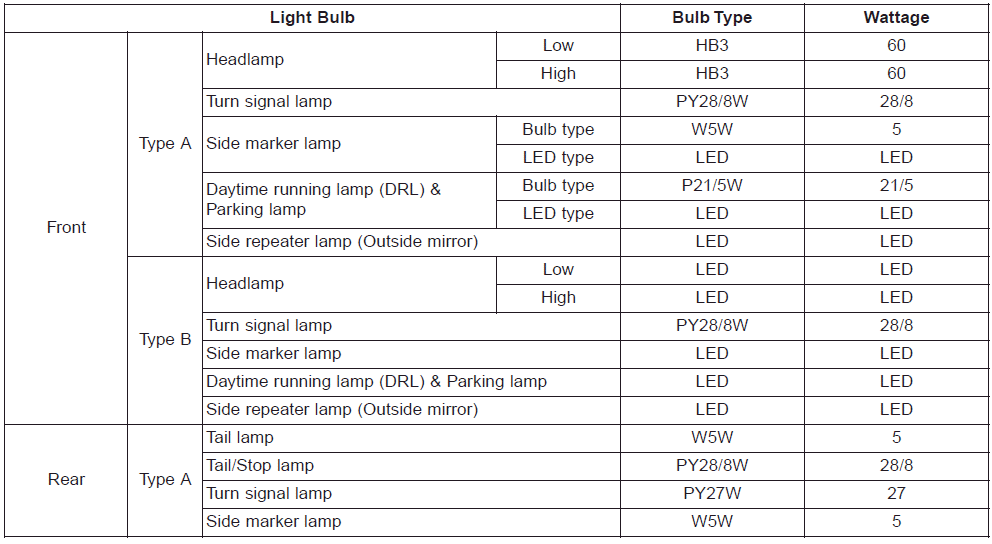

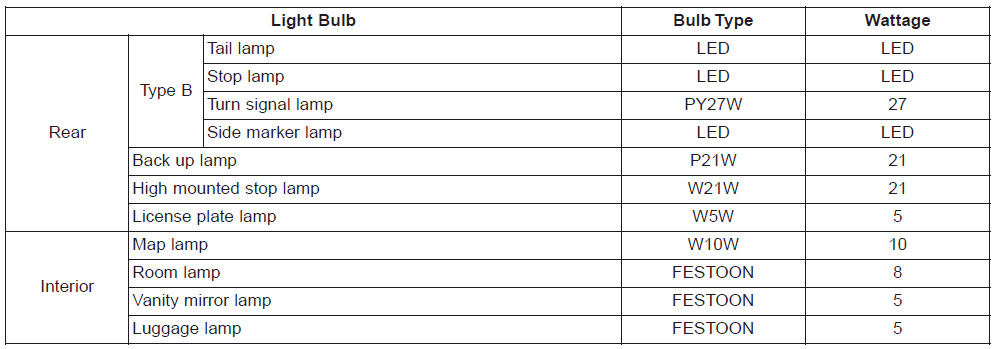

Bulb Wattage

Hyundai Elantra. Dimensions, Engine, Bulb Wattage

Hyundai Elantra. Dimensions, Engine, Bulb Wattage

Tires and Wheels
If your vehicle is not equipped with a compact spare tire, your vehicle will be equipped with a Tire Mobility Kit. NOTICE It is permissible to add 3 psi to the standard tire pressure specific ...
