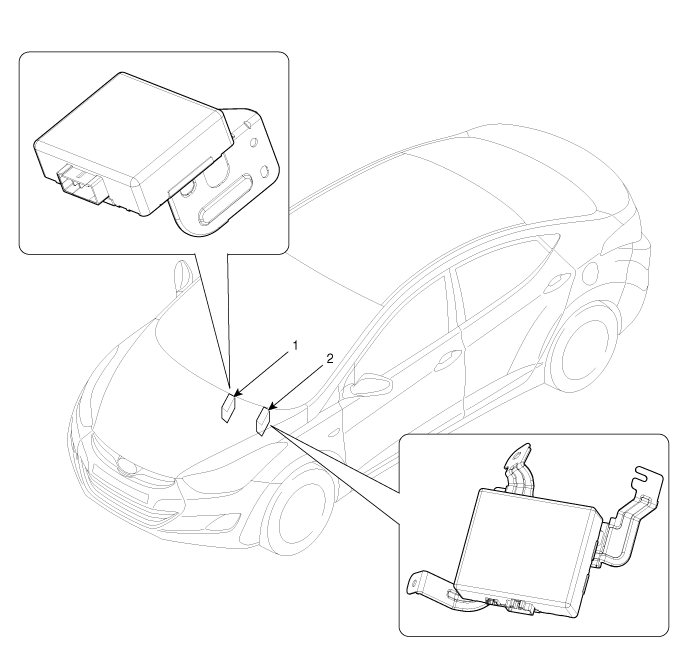

Component Location

1. DC/DC Converter [200W]
2. DC/DC Converter [400W]

Operation Principle

• In the ISG mode, if the power of an audio system turns OFF by drawdown while “Auto St ...

DC DC Converter. Schematic Diagrams

Circuit Diagram In the ISG mode, if the power of an audio system turnsOFF by drawdown while “Auto Starting” or “ ...
