Hyundai Elantra HD: CVVT Oil Temperature Sensor (OTS). Schematic Diagrams - Engine Control System - Engine Control/Fuel System - Hyundai Elantra HD 2006–2010 Service Manual

Hyundai Elantra HD: CVVT Oil Temperature Sensor (OTS). Schematic Diagrams

Fourth generation (HD; 2007–2010) / Hyundai Elantra HD 2006–2010 Service Manual / Engine Control/Fuel System / Engine Control System / CVVT Oil Temperature Sensor (OTS). Schematic Diagrams

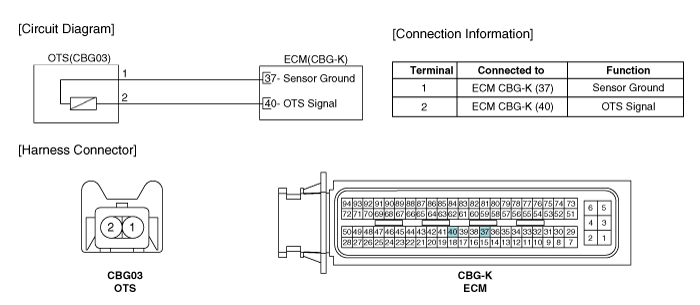

Circuit Diagram

CVVT Oil Temperature Sensor (OTS). Specifications

Specification Temperature [°C(°F)] Resistance (kΩ) -40(-40) 52.15 -20(-4) 16.52 0(32) ...

CVVT Oil Temperature Sensor (OTS). Repair procedures

Component Inspection 1. Turn ignition switch OFF. 2. Disconnect OTS connector. 3. Remove the OTS. ...
