Hyundai Elantra HD: CVVT Oil Control Valve (OCV). Schematic Diagrams - Engine Control System - Engine Control/Fuel System - Hyundai Elantra HD 2006–2010 Service Manual

Hyundai Elantra HD: CVVT Oil Control Valve (OCV). Schematic Diagrams

Fourth generation (HD; 2007–2010) / Hyundai Elantra HD 2006–2010 Service Manual / Engine Control/Fuel System / Engine Control System / CVVT Oil Control Valve (OCV). Schematic Diagrams

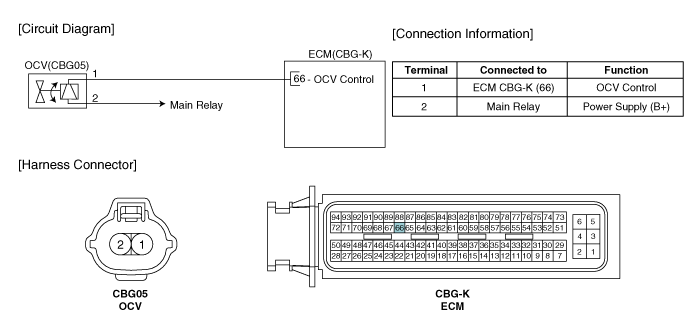

Circuit Diagram

CVVT Oil Control Valve (OCV). Specifications

Specification Item Specification Coil Resistance (Ω) 6.9 ~ 7.9Ω at 20°C (68°F) ...

CVVT Oil Control Valve (OCV). Repair procedures

Component Inspection 1. Turn ignition switch OFF. 2. Disconnect OCV connector. 3. Measure resistance between O ...
