Hyundai Elantra MD/UD: CVVT Oil Control Valve (OCV). Schematic Diagrams

Fifth generation (MD/UD; 2011–2016) / Hyundai Elantra MD 2010-2015 Service manual / Fuel System / Engine Control System / CVVT Oil Control Valve (OCV). Schematic Diagrams

Circuit Diagram

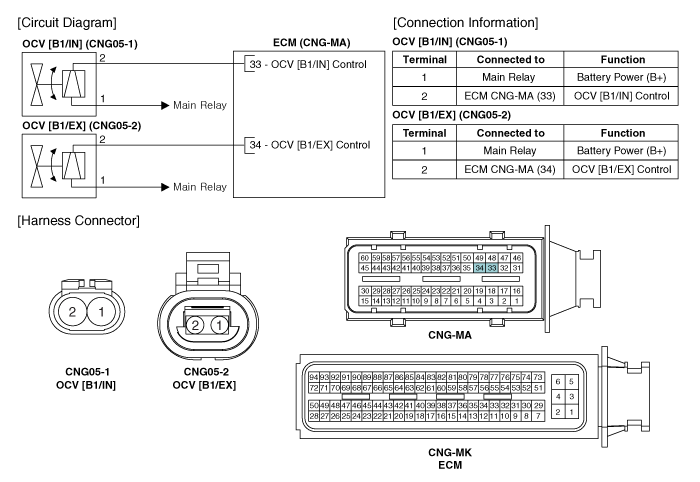

(M/T)

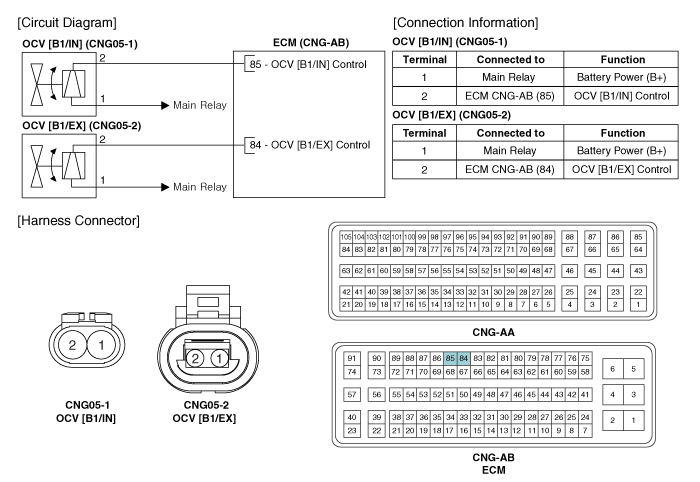

(A/T)
