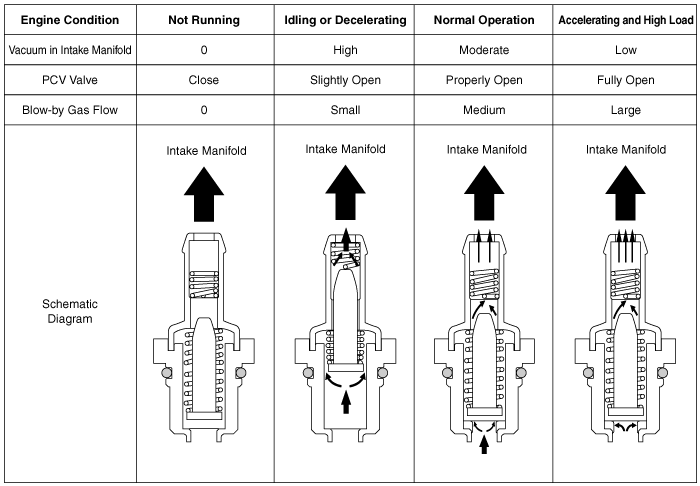

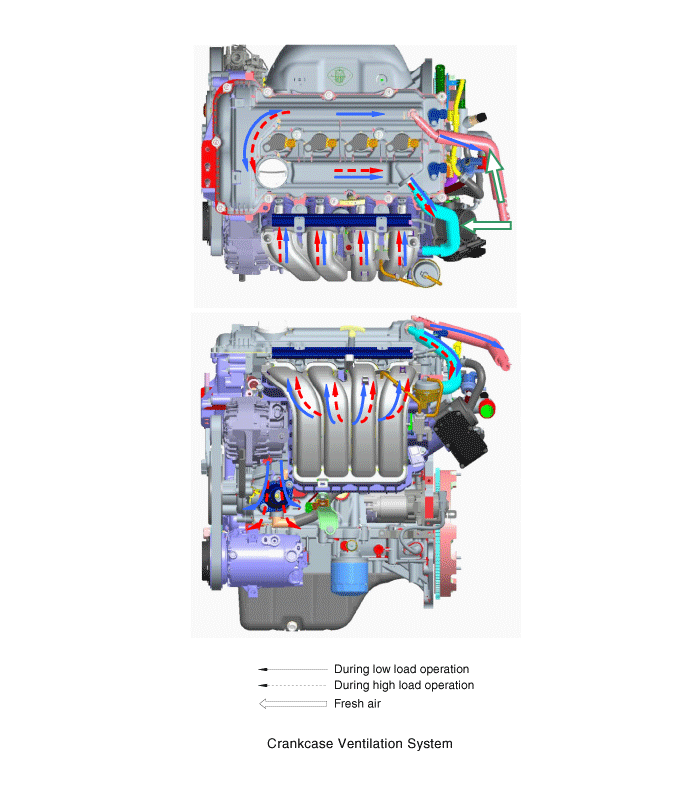

Schematic Diagrams
Repair procedures
| 1. |
After disconnecting the vapor
hose from the PCV valve, remove the PCV valve. |
| 2. |
Reconnect the PCV valve to the
vapor hose. |
| 3. |
Run the engine at idle, then
put a finger over the open end of the PCV valve and make sure that intake
manifold vacuum can be felt.
| •
|
The plunger inside
the PCV valve will move back and forth at vacuum. |
|
|
| 4. |
If the vacuum is not felt inspect
PCV operation, if operating correctly clean or replace the vapor hose. |
Positive Crankcase Ventilation (PCV) Valve Description and Operation
Positive Crankcase Ventilation (PCV) Valve Repair procedures
| 1. |
Disconnect the vapor hose (A). |
| 2. |
Remove the PCV valve (B).
|
| 1. |
Insert a thin stick (A) into
the PCV valve (B) from the threaded side to check that the plunger movement.
| •
|
If the plunger
does not move (PCV valve is clogged), clean or replace the
valve.
|
|
|
| 1. |
Installation is reverse of removal.
PCV Valve installation :
1.96 ~ 2.94 N.m (0.2 ~ 0.3 kgf.m, 1.45 ~ 2.17 lb-ft)
|
|
