Hyundai Elantra HD: Components and Components Location

Fourth generation (HD; 2007–2010) / Hyundai Elantra HD 2006–2010 Service Manual / Body Electrical System / Keyless Entry And Burglar Alarm / Components and Components Location

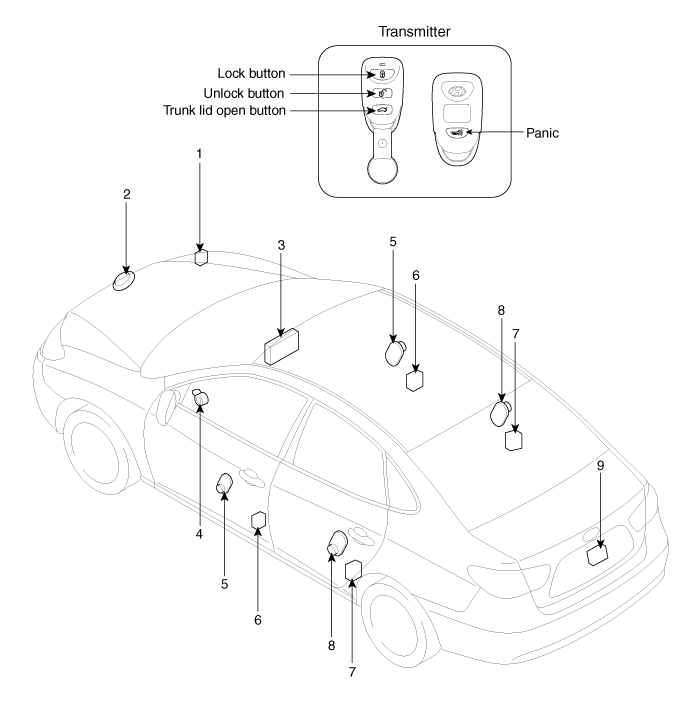

Component Location

1. Hood switch
2. Burglar horn
3. Body control module
4. Key warning switch
5. Front door switch

6. Front door lock actuator & switch
7. Rear door lock actuator & switch
8. Rear door switch
9. Trunk lid actuator & switch

Specifications

Specifications Item Specification Rated voltage DC 3V Service voltage range DC 2.5V ~ 3.2V Temperatu ...

Description and Operation

Description Anti-theft Warning System Burglar Alarm System The burglar alarm system is armed automatically after the doors, hood, and trunk are closed and locked. The system is ...
