Hyundai Elantra HD: Components and Components Location - Horn - Body Electrical System - Hyundai Elantra HD 2006–2010 Service ManualHyundai Elantra HD: Components and Components Location

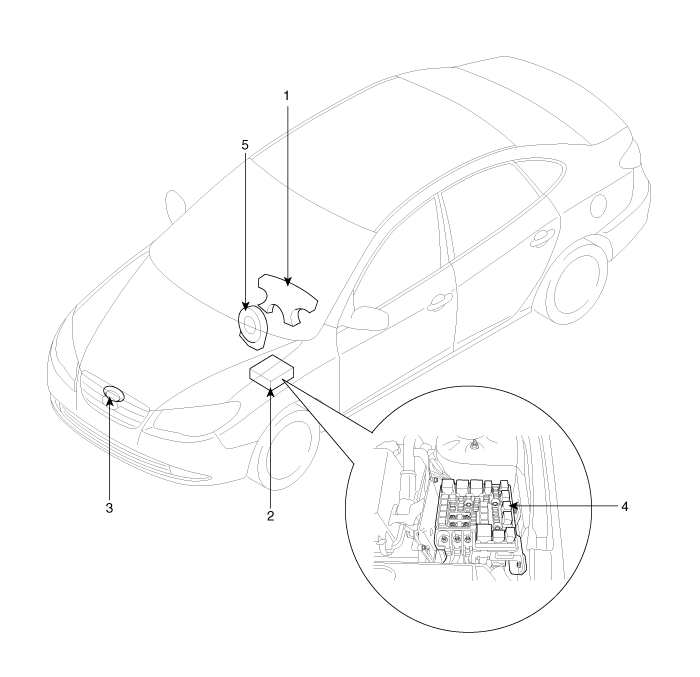

Component Location

1. Horn switch
2. Relay box (Engine room compartment)
3. Horn (Low pitch - Single)
4. Horn relay
5. Clock spring


Horn
...

Repair procedures
Removal 1. Remove the front bumper. (Refer to the Body group - front bumper). 2. Remove the bolt and disconnect the horn connector, t ...
