Hyundai Elantra MD/UD: Components and Components Location - AVN System - Body Electrical System - Hyundai Elantra MD 2010-2015 Service manualHyundai Elantra MD/UD: Components and Components Location

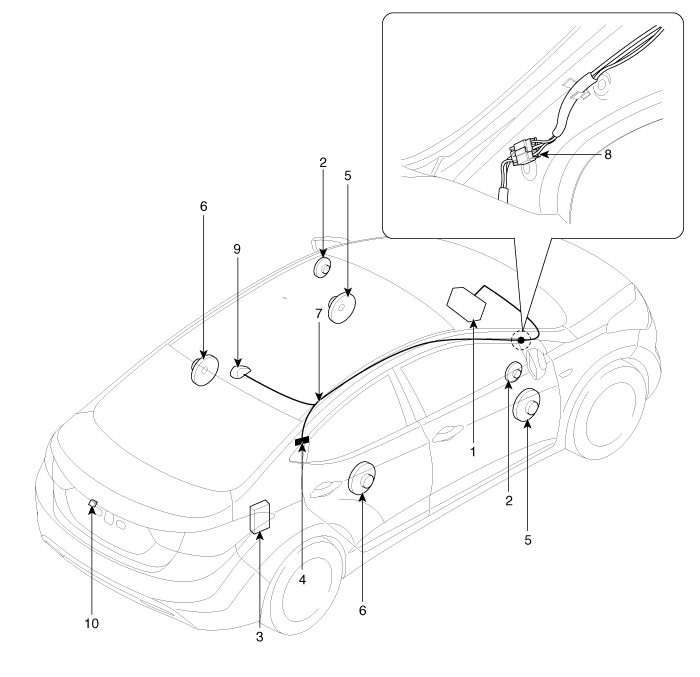

Components Location

1. AVN (A/V & Navigation head unit)
2. Tweeter speaker
3. External amplifier
4. Glass antenna (Radio)
5. Front door speaker
6. Rear door speaker
7. Antenna feeder cable
8. Antenna cable connector
9. Roof antenna (GPS + SDARS)
10. Back view camera

※ SDARS : Satellite Digital Audio Radio Service

Specifications
Specifications Item Specification Power source DC 14.4V (-) ground Frequency range / Channel space FM : 87.7 ~ 107.9 ...

Schematic Diagrams
System Block Diagram ...
