Hyundai Elantra MD/UD: Components and Components Location

Fifth generation (MD/UD; 2011–2016) / Hyundai Elantra MD 2010-2015 Service manual / Fuel System / ISG (Idle Stop & Go) System / Components and Components Location

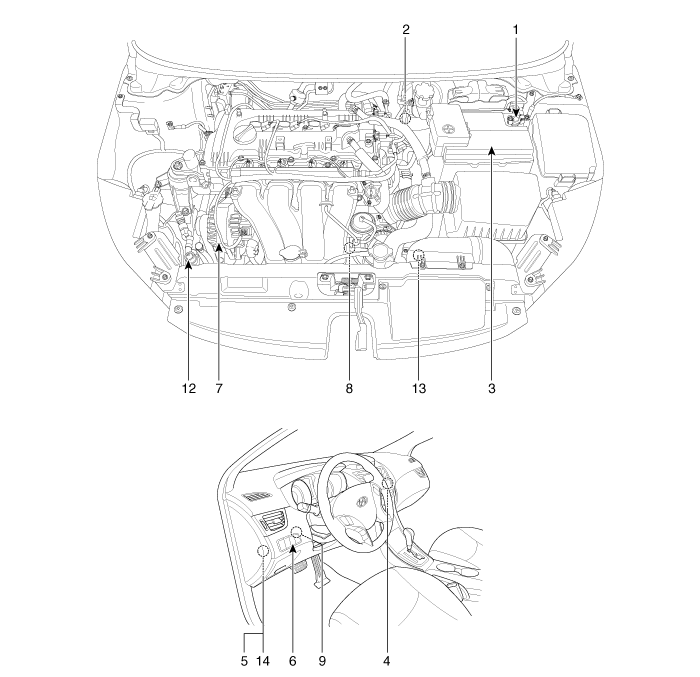

Components Location

1. Battery sensor
2. Brake Booster Vacuum Pressure Sensor (BBVPS)
3. AGM battery
4. DC/ DC Converter (LDC) [200W]
5. DC/ DC Converter (LDC) [400W]
6. ISG OFF Switch
7. Alternator

8. Starter
9. Brake switch
10. Door switch
11. Seat belt switch
12. Hood switch
13. Electric Oil Pump (EOP)
14. Oil Pump Unit (OPU)

1. Battery sensor 3. AGM battery	2. Brake Booster Vacuum Pressure Sensor (BBVPS)

4. DC/ DC Converter (LDC) [200W]	5. DC/ DC Converter (LDC) [400W]

6. ISG OFF Switch	7. Alternator

8. Starter	9. Brake switch

10. Door switch	11. Seat belt switch

12. Hood switch	13. Electric Oil Pump (EOP)

14. Oil Pump Unit (OPU)
