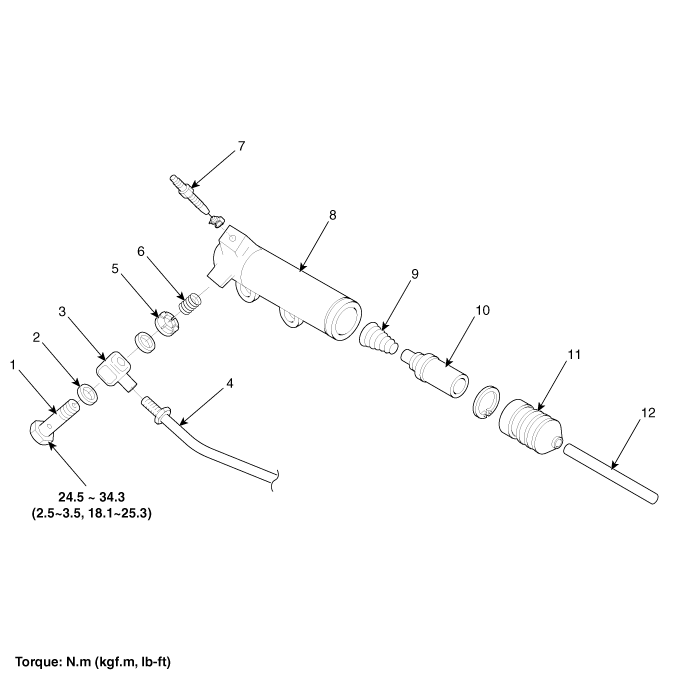

Components

1. Union bolt
2. Gasket
3. Tube joint
4. Clutch tube
5. Valve plate
6. Valve spring
 7. Bleeder screw
8. Release cylinder
9. Return spring
10. Piston
11. Boot
12. Push rod


Installation
1. Installation is in reverse order of removal. • ...
