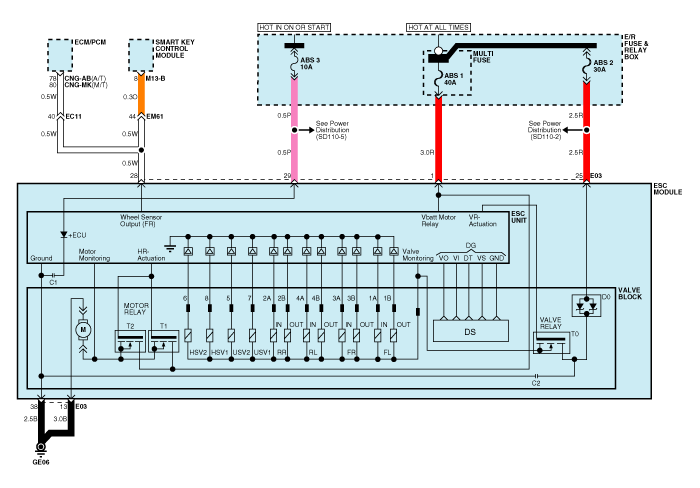

Hyundai Elantra MD/UD: Circuit Diagram - ESC (3) - Schematic Diagrams - ESC(Electronic Stability Control) System - Brake System - Hyundai Elantra MD 2010-2015 Service manualHyundai Elantra MD/UD: Circuit Diagram - ESC (3)


ESC connector input/output
Connector Terminal Specification Remark No Description 29 IGNITION1(+) High level of wake up ...
