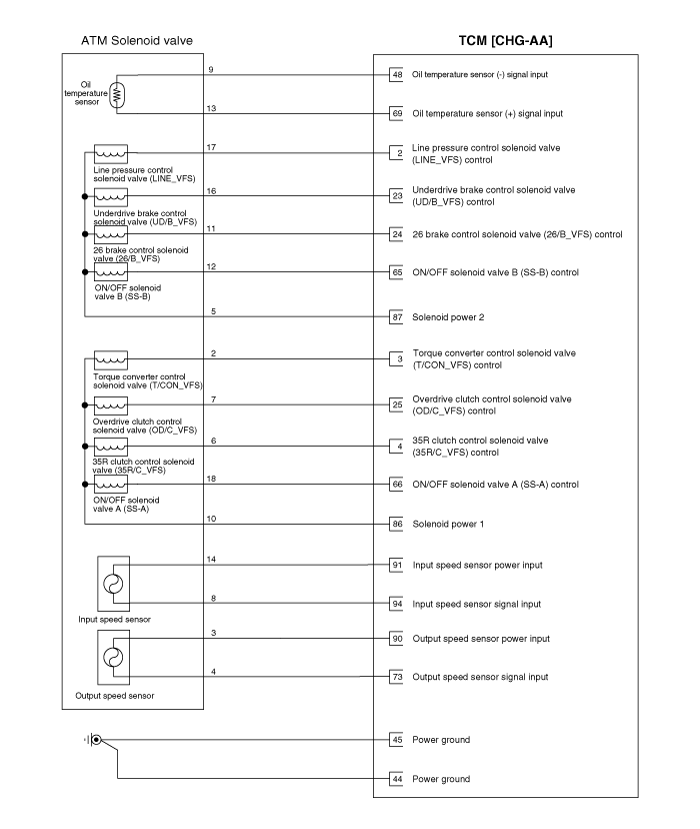

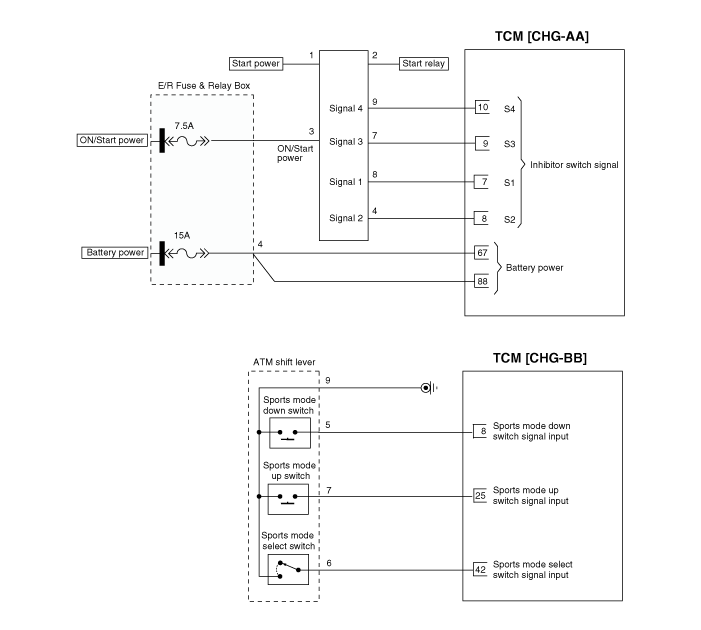

Hyundai Elantra MD/UD: Circuit Diagram

Fifth generation (MD/UD; 2011–2016) / Hyundai Elantra MD 2010-2015 Service manual / Automatic Transaxle System / Automatic Transaxle Control System / Transaxle Control Module (TCM). Schematic Diagrams / Circuit Diagram

TCM Terminal Input/ Output Signal

Connector [CHG-AA] Pin Description Condition Input/output value Type Level 1 - ӌ ...
