Hyundai Elantra MD/UD: Brake Booster Vacuum Pressure Sensor. Schematic Diagrams - ISG (Idle Stop & Go) System - Fuel System - Hyundai Elantra MD 2010-2015 Service manualHyundai Elantra MD/UD: Brake Booster Vacuum Pressure Sensor. Schematic Diagrams

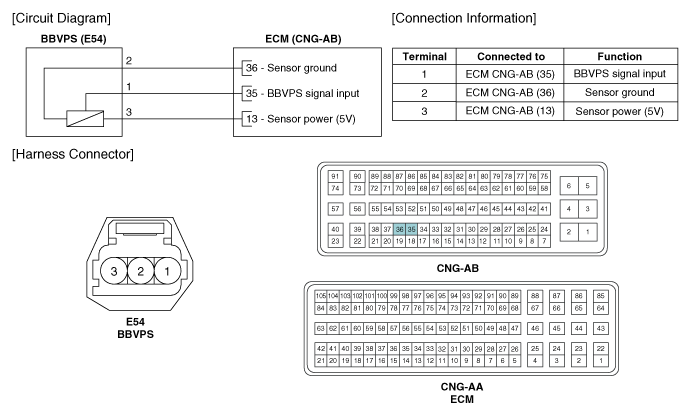

Circuit Diagram
