Hyundai Elantra MD/UD: Body Control Module (BCM). Schematic Diagrams - BCM (Body Control Module) - Body Electrical System - Hyundai Elantra MD 2010-2015 Service manualHyundai Elantra MD/UD: Body Control Module (BCM). Schematic Diagrams

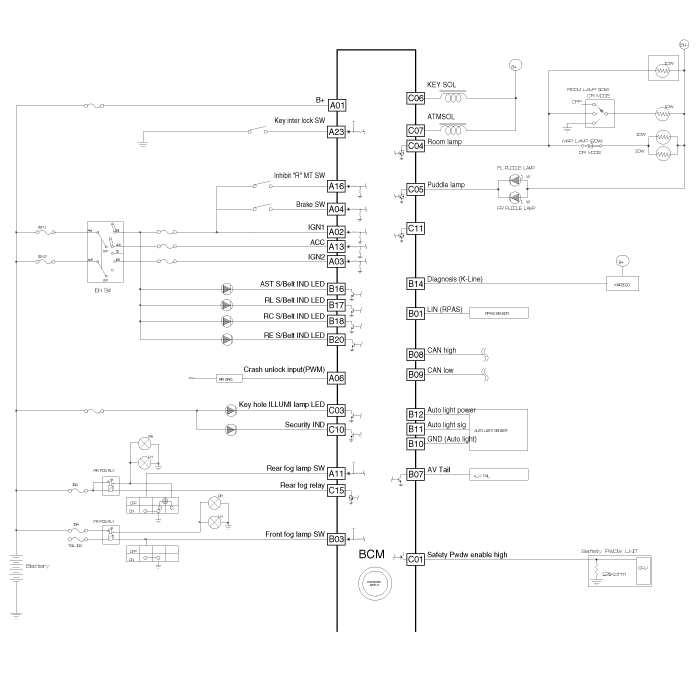

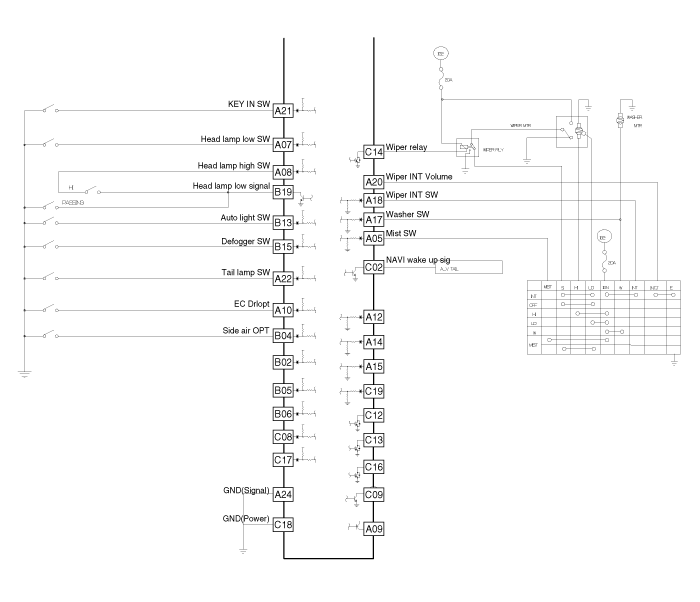

Circuit Diagram
