Hyundai Elantra AD: Battery - Maintenance - Hyundai Elantra AD 2017–2020 Owners ManualHyundai Elantra AD: Battery

WARNING

To prevent SERIOUS INJURY or DEATH to you or bystanders, always follow these precautions when working near or handling the battery:

Hyundai Elantra. BatteryAlways read and follow instructions carefully when handling a battery.

Hyundai Elantra. BatteryWear eye protection designed to protect the eyes from acid splashes.

Hyundai Elantra. BatteryKeep all flames, sparks, or smoking materials away from the battery.

Hyundai Elantra. BatteryHydrogen is always present in battery cells, is highly combustible, and may explode if ignited.

Hyundai Elantra. BatteryKeep batteries out of reach of children.

Hyundai Elantra. BatteryWARNING Batteries contain sulfuric acid which is highly corrosive. Do not allow acid to contact your eyes, skin or clothing.

If acid gets into your eyes, flush your eyes with clean water for at least 15 minutes and get immediate medical attention. If acid gets on your skin, thoroughly wash the area. If you feel pain or a burning sensation, get medical attention immediately.

  • When lifting a plastic-cased battery, excessive pressure on the case may cause battery acid to leak. Lift with a battery carrier or with your hands on opposite corners.
  • Do not attempt to jump start your vehicle if your battery is frozen.
  • NEVER attempt to recharge the battery when the vehicle’s battery cables are connected to the battery.
  • The electrical ignition system works with high voltage. NEVER touch these components with the engine running or when the Engine Start/Stop button is in the ON position.
  • Leaked battery electrolyte due to repeated driving on sharp curves (e.g. on circuits) may cause safety problem. Avoid repeated driving on sharp curves.

WARNING

CALIFORNIA PROPOSITION 65 WARNING

Battery posts, terminals, and related accessories contain lead and lead compounds, chemicals known to the State of California to cause cancer, birth defects and reproductive harm. Batteries also contain other chemicals known to the State of California to cause cancer. Wash hands after handling.

NOTICE

  • When you do not use the vehicle for a long time in a low temperature area, disconnect the battery and keep it indoors.
  • Always charge the battery fully to prevent battery case damage in low temperature areas.

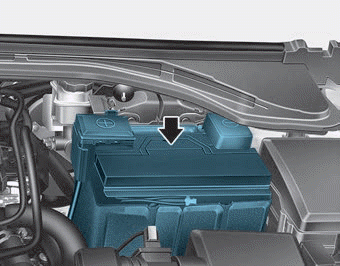

For Best Battery Service

Hyundai Elantra. For Best Battery Service

  • Keep the battery securely mounted.
  • Keep the battery top clean and dry.
  • Keep the terminals and connections clean, tight, and coated with petroleum jelly or terminal grease.
  • Rinse any spilled acid from the battery immediately with a solution of water and baking soda.

Battery Recharging

WARNING

Always follow these instructions when recharging your vehicle's battery to avoid the risk of SERIOUS INJURY or DEATH from explosions or acid burns:

  • Before performing maintenance or recharging the battery, turn off all accessories and place the ignition switch to the LOCK/OFF position.
  • Keep all flames, sparks, or smoking materials away from the battery.
  • Always work outdoors or in an area with plenty of ventilation.
  • Wear eye protection when checking the battery during charging.
  • The battery must be removed from the vehicle and placed in a well ventilated area.
  • Watch the battery during charging, and stop or reduce the charging rate if the battery cells begin boiling violently.
  • The negative battery cable must be removed first and installed last when the battery is disconnected. Disconnect the battery charger in the following order:
    (1) Turn off the battery charger main switch.
    (2) Unhook the negative clamp from the negative battery terminal.
    (3) Unhook the positive clamp from the positive battery terminal.
  • Always use a genuine HYUNDAI approved battery when you replace the battery.

By jump starting

After a jump start from a good battery, drive the vehicle for 20-30 minutes before it is shutoff. The vehicle may not restart if you shut it off before the battery had a chance to adequately recharge. See "Jump Starting" in chapter 6 for more information on jump starting procedures.

Information

An inappropriately disposed battery can be harmful to the environment and human health.

Dispose the battery according to your local law(s) or regulation.

Reset Features

The following items may need to be reset after the battery has been discharged or the battery has been disconnected.

  • Power Windows
  • Trip Computer
  • Climate Control System
  • Clock
  • Audio System
  • Sunroof
