Components and Components Location

Component Location

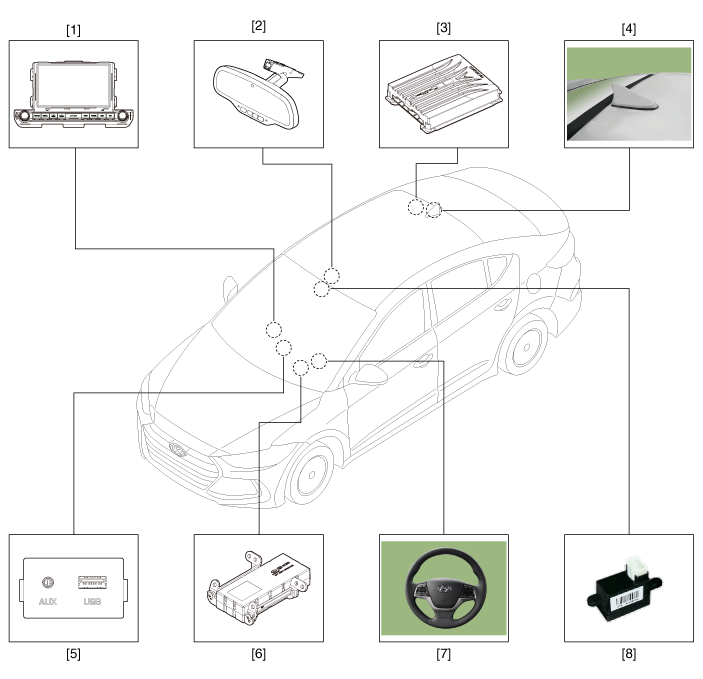

1. AVN4.0 head unit (8inch) 2. Bluelink keyboard [4.0 (8inch)] 3. External amplifier [4.0 (8inch)] 4. Roof antenna

5. Multimedia jack 6. Wif & LTE Antenna [4.0 (8inch)] 7. Steering wheel remote control 8. Hands-free mic (Built-in overhead console)

Description and Operation

Description

AVN System

The AVN system has improved information search and easiness of manipulation for the driver by simplifying the system operation experience and unifying the display of the user information such as multimedia and car information.

The system is basically composed of a keyboard for the operation of combined function, LCD monitor, a head unit with Bluetooth handsfree calling, voice recognition and navigation, music amplifier and the media unit that connects with other outside devices.

1.	Simplification of user interface : the multimedia and car information are displayed on the monitor.

2.	Networked electronic parts : Efficient information transmission through CAN communications.

3.

Up-to-date technologies integrated : A. Voice recognition : This function recognizes the user's voice commands to manipulate the system. The user can issue voice commands to operate AV system, Bluetooth phone and navigation and connect to Cubis call center. B. Bluetooth hands-free calling : This is compliant with the international wireless communication standards and uses bluetooth technology adopted in most currently launched mobile phones. Once connected, the driver is automatically connected every time he/she gets in the car. C. USB connectivity : Outside music player devices such as USB memory stick or Walkman can be connected and played with the car speakers.

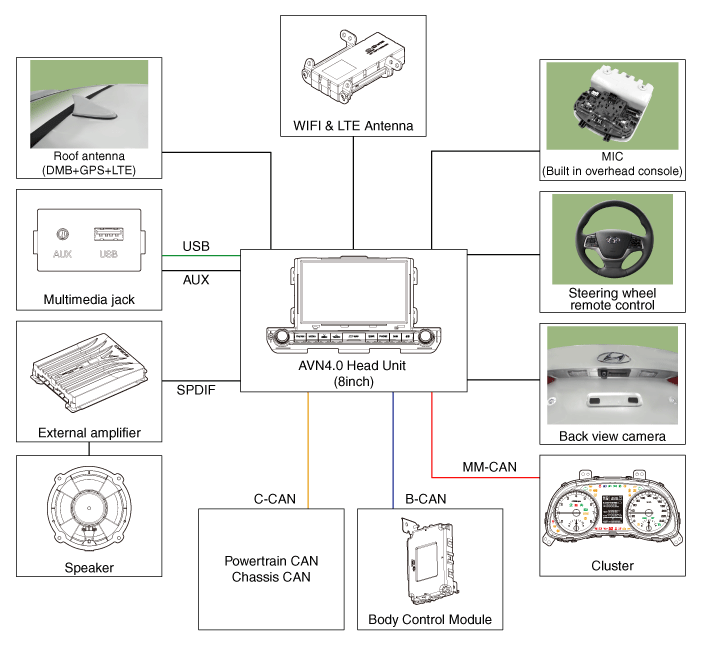

System Block Diagram

•	B-CAN : Body Controller Area Network

•	MM-CAN : Multi-Media Controller Area Network

Limitations of The Navigation System

GPS Signal Reception State

As the GPS satellite frequency is received/transmitted in straight lines, reception may not work if hiding devices are placed on or near the GPS antenna or when traveling through the following locations.

•

Tunnels

•	Basement parking structures

•	Underneath an overpass

•	Roads within forested areas

•	Areas near high rise buildings

•	Roads within canyons

Vehicle Position Display

1.	If multipass errors occur due to reflections from buildings or related causes, the current position mark on the navigation may differ from the actual position of the vehicle.

2.

The position of the vehicle on the navigation may be different from the actual position if the vehicle is under the occur, driving for a short period of time will vehicle through map matching or GPS information (several minutes may be necessary in certain cases). A. When driving on a Y-shaped road with a narrow angle, the current position may be displayed in the opposite direction. B. If the vehicle is loaded onto a car transport vehicle, the current position mark may be stalled on the last position prior to loading. C. When driving on a spiral-shaped road. D. When driving in mountain regions with sharp turns or sudden brakes. E. When entering a road after having been in an underground parking structure, building parking structure, or turnable with many rotations. F. When the tires have recently been replaced (Especially upon use of spare or studless tires) G. If the battery terminal is removed. H. When driving in city streets, the current position may be displayed on the opposite side or on an off-road position. I. When changing the zoom level from the maximum zoom in level to a different zoom level, the current position mark may be displayed on a different road. J. When driving in heavy traffic with frequent go · stops in traffic or intersections. K. When driving under slippery conditions, such as heavy sand, snow, etc. L. When driving with the tire chain in place. M. When using a tire with an incorrect size specification. N. When the tire pressure for the 4 tires are different. O. When the replacement tire is a worn or used tire (Especially studless tires having passed a 2nd seasons, etc.) P. When driving near high-rise buildings Q. If a roof carrier has been installed R. When driving under high speeds or having calculated a long-distance route.

Route Guidance

Suitable route guidance may not occur caused by search conditions or the driving position.

•	Guidance to go straight may be given while driving on a straight road.

•	Guidance may not be given even when having turned at an intersection.

•	There are certain intersections in which guidance may not occur.

•	A route guidance signaling entrance into a no enter zone may occur (No enter zone, road under construction, etc.)

•	Guidance may be given to a position removed from the actual destination if roads to reach the actual destination do not exist or are too narrow.

•	Faulty voice guidance may be given if the vehicle breaks from the designated route (ex : if a turn is made at an intersection while the navigation provided guidance to go straight).

•	Map Data may be missing or incorrect causing route guidance to not be given.

Route Re-calculation

The following phenomena may occur after conducting route recalculation.

•	Guidance may be given to a position differing from the current position when turning at an intersection.

•	Route recalculation may take a longer period of time when driving under high speeds.

•	A route guidance signaling for a U-Turn in a No U-Turn location may occur.

•	A route guidance signaling entrance into a no enter zone may occur (No enter zone, road under construction, etc).

•	Guidance may be given to a position removed from the actual destination do not exist or are too narrow.

•	Faulty voice guidance may be given if the vehicle breaks from the designated route (ex : if a turn is made at an intersection while the navigation provided guidance to go straight)

AVN(Audio Video Navigation) head unit Components and Components Location

Components

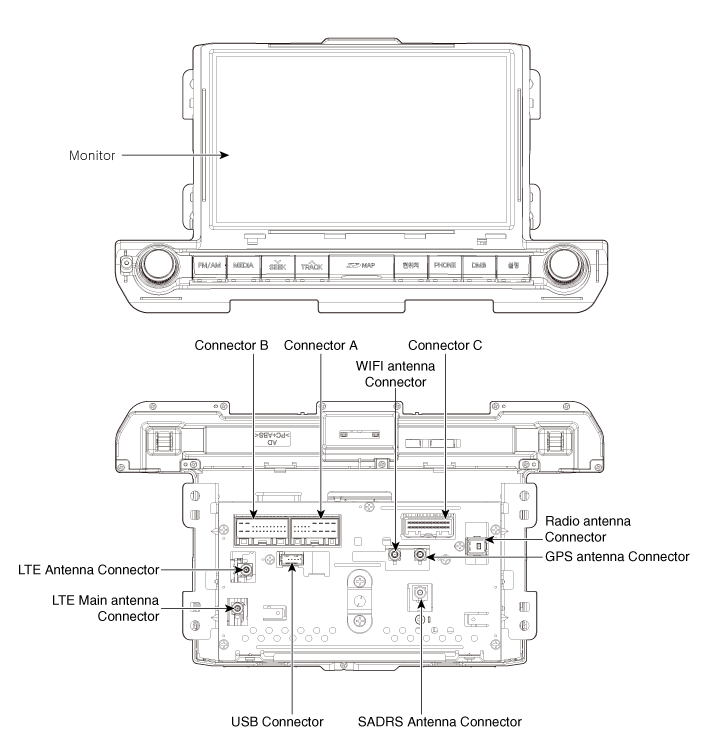

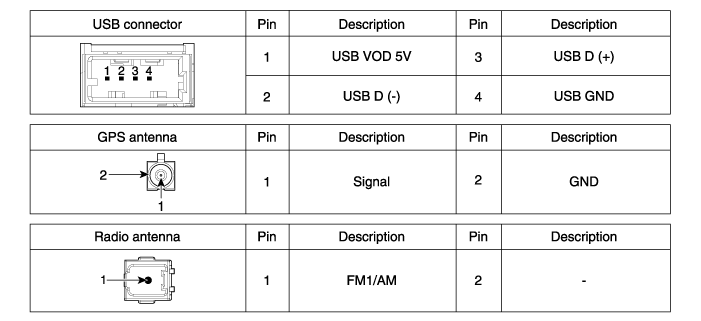

Connector Pin Information

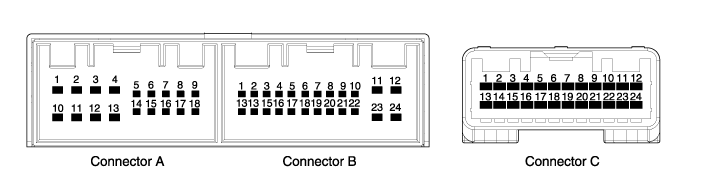

No	Connector A	Connector B	Connector C
1	-	Multmedia-CAN (High)	Chassis-CAN (Low)
2	-	-	Chassis-CAN (High)
3	-	-	-
4	-	Steering wheel remote controller	-
5	SPDIF Shield GND	-	-
6	SPDIF (+)	MTS keypad signal	-
7	-	-	-
8	Illumination (+)	AUX R input	-
9	-	Multimedia jack (GND)	-
10	-	MIC (+)	-
11	-	Battery (+)	Body-CAN (High)
12	-	Battery (+)	Body-CAN (Low)
13	-	Multmedia-CAN (Low)	-
14	IGN 1 (+)	Auto light	AIR BAG
15	SPDIF (-)	-	-
16	-	Vehicle speed	NAVI VOICE (-)
17	Illumination (-)	MTS keypad (GND)	NAVI VOICE (+)
18	Antenna B(+)	ACC	-
19		AUX V (GND)	-
20		Multimedia jack (Detect)	-
21		AUX L input	Camera_GND
22		MIC (-)	Camera_Video GND
23		GND	Camera_VIN
24		GND	Carmera B(+)

AVN(Audio Video Navigation) head unit Repair procedures

Removal

• Take care not to scratch the cluster fascia panel and related parts. • Eject all the disc before removing the AVN head unit to prevent damaging the DVD player's load mechanism. • Wrap the protective tape on the tool to disassemble with the screwdriver or remover. • Use caution in keeping and handling during disassembling/assembling because it is easily contaminated with lubricant and oil.

1.	Disconnect the negative (-) battery terminal.

2.	Remove the center fascia panel. (Refer to Body - "Center Fascia Panel")

3.	Remove the AVN head unit (A) after loosening the mounting bolts.

4.	Remove the AVN head unit connectors and cables (A). • If DVD does not eject, don't try to remove it. • The DVD player may get damaged. • Contact the nearest dealer for assistance.

Installation

1.	Install the AVN head unit after connecting the AVN head unit connectors and cable.

2.	Install the center fascia panel.

3.	Connect the negative (-) battery terminal. • Make sure that the cables and connectors are plugged in properly. • Check the AVN system.

External AMP Components and Components Location

Components

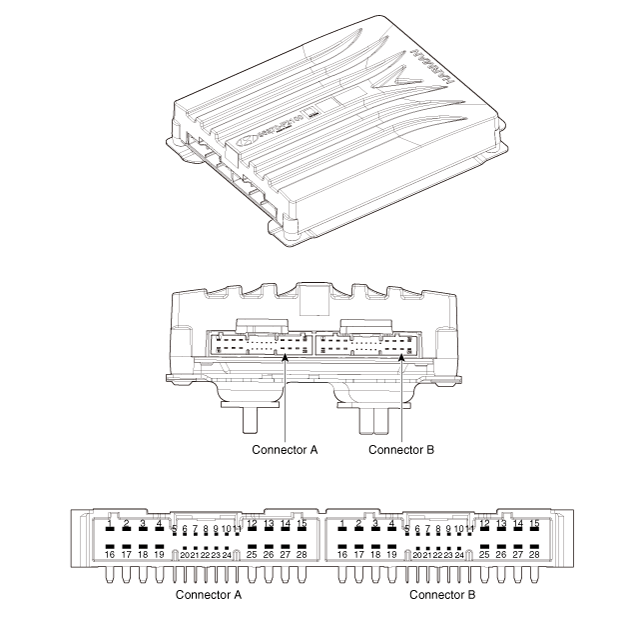

No	Connector A	No	Connector B
1	BATT (+)	1	Subwoofer 2 (+)
2	BATT (+)	2	Subwoofer 1 (+)
3	BATT (+)	3	Front door tweeter speaker - RH (+)
4	BATT (+)	4	Front door tweeter speaker - LH (+)
5	-	5	-
6	Multimedia CAN (High)	6	-
7	Multimedia CAN (Low)	7	-
8	ACC	8	-
9	Navigation voice (+)	9	-
10	-	10	-
11	-	11	-
12	-	12	Rear door speaker - RH (+)
13	-	13	Rear door speaker - LH (+)
14	-	14	Center speaker (+)
15	-	15	-
16	Ground	16	Subwoofer 2 (-)
17	Ground	17	Subwoofer 1 (-)
18	Ground	18	Front door tweeter speaker - RH (-)
19	Ground	19	Front door tweeter speaker - LH (-)
20	SPDIF (High)	20	-
21	SPDIF (Low)	21	-
22	SPDIF GND	22	-
23	Navigation voice (-)	23	-
24	-	24	-
25	-	25	Rear door speaker - RH (-)
26	-	26	Rear door speaker - LH (-)
27	-	27	Center speaker (+)
28	-	28	-

External AMP Repair procedures

Removal

1.	Disconnect the negative (-) battery terminal.

2.	Open the trunk, remove the right luggage side trim. (Refer to Body - "Trunk Trim")

3.	Remove the external amplifier (B) after disconneting the connector (A) and loosening the mounting nuts.

Installation

1.	Install the external amplifier after connecting the connector.

2.	Install the right luggage side trim.

3.	Connect the negative (-) battery terminal. • Make sure that the cables and connectors are plugged in properly. • Check the AVN system.

AVN Remote Controller Components and Components Location

Components

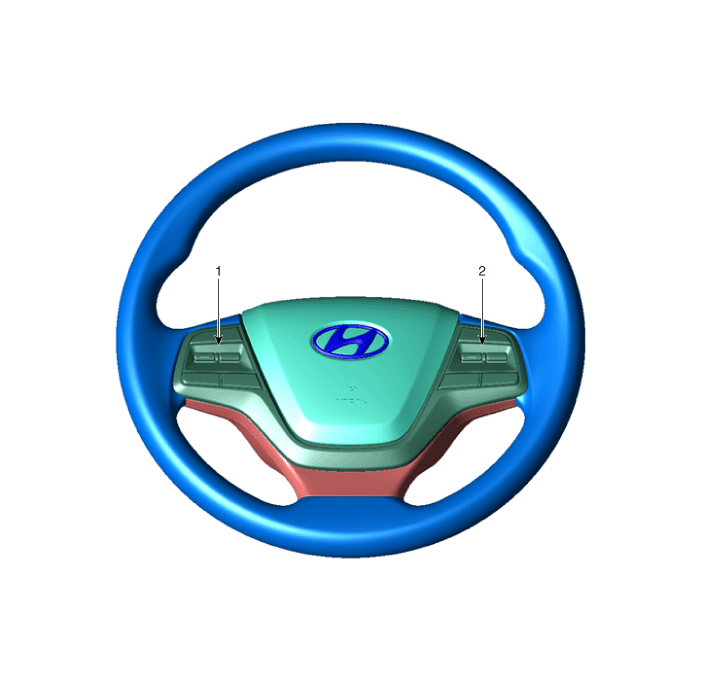

1. Left Remote Control Switch (Audio + Hands free)

2. Right Remote Control Switch (Cruise+Trip Computer)

AVN Remote Controller Schematic Diagrams

Circuit Diagram

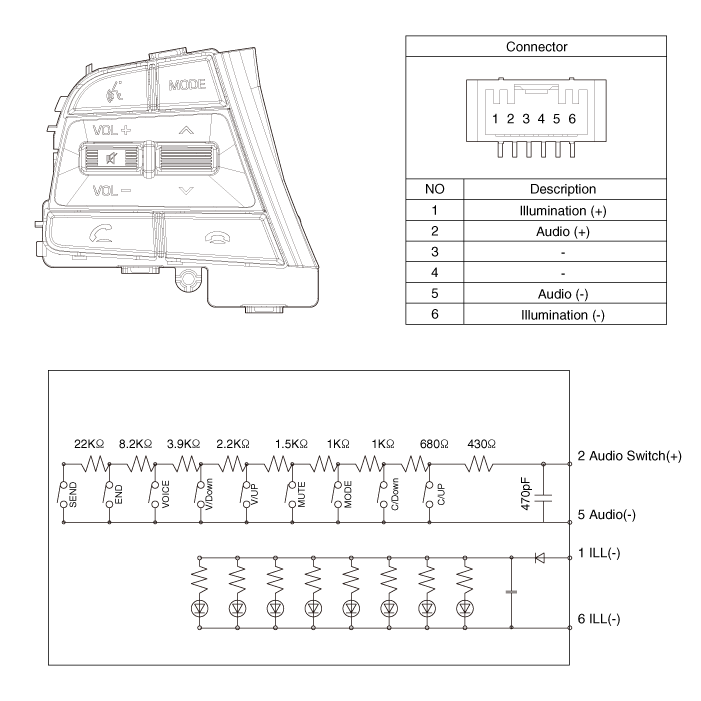

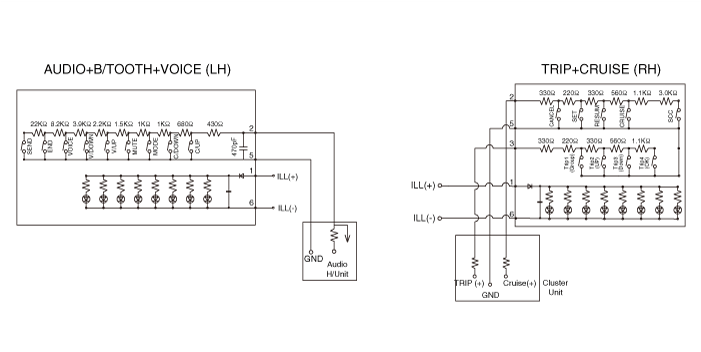

[Audio + B/Tooth + Voice]

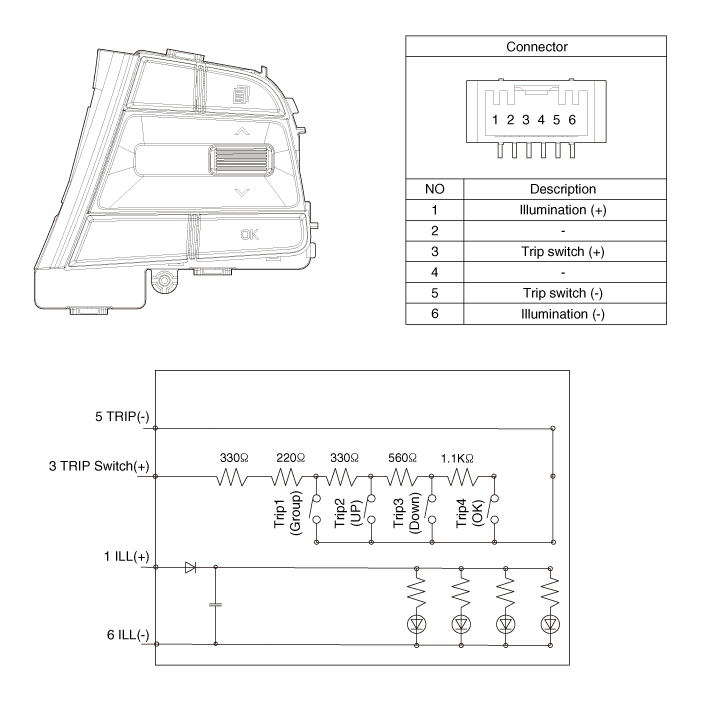

[Trip]

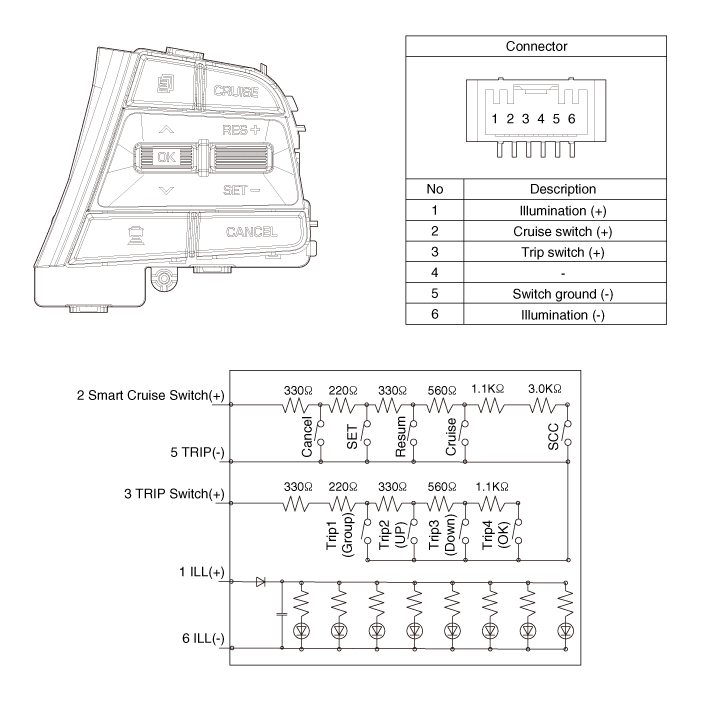

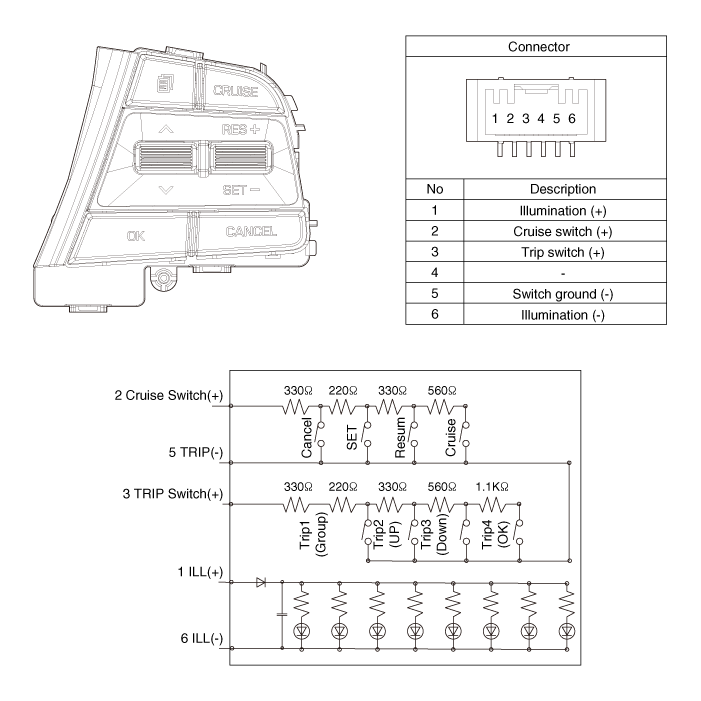

[Trip / Cruise]

[Trip / Cruise/ Smart Cruise]

AVN Remote Controller Repair procedures

Inspection

1.	Check for resistance between terminals in each switch position (LH). [LH : Audio + Hands free] Switch Connector terminal Resistance (±5%) SEEK Up 2-5 430 ? SEEK Down 1.11 k? MODE 2.11 k? MUTE 3.11 k? Volume (+) 4.61 k? Volume (-) 6.81 k? Voice 10.71 k? SEND 18.91 k? END 40.91 k?

2.	Check for resistance between terminals in each switch position (RH). [RH : Trip + Cruise] Switch Connector terminal Resistance (±5%) Cancel 2-5 330 ? SET - 550 ? RES + 880 ? Cruise ON/OFF 1.44 k? Group 3-5 550 ? Trip Up 880 ? Trip Down 1.44 k? ENTER 2.54 k? SCC ON / OFF 5.54 k?

Removal

1.	Disconnect the negative (-) battery terminal.

2.	Remove the steering wheel assembly. (Refer to Steering System - "Steering Wheel")

3.	Remove the steering back cover (A).

4.	Remove the steering remote control connector (A).

5.	Remove the steering remote control after loosening the screws.

Installation

1.	Install the steering wheel remote control after connecting the connector.

2.	Connect the negative (-) battery terminal.

AVN Antenna Components and Components Location

Components

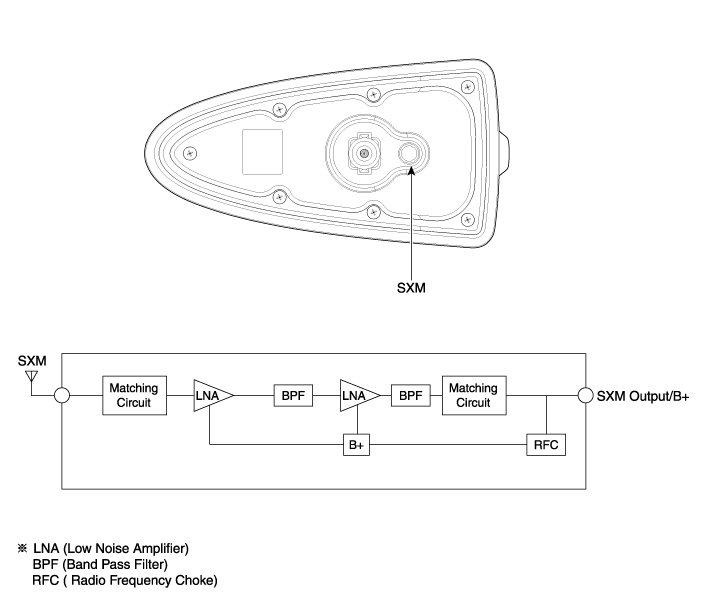

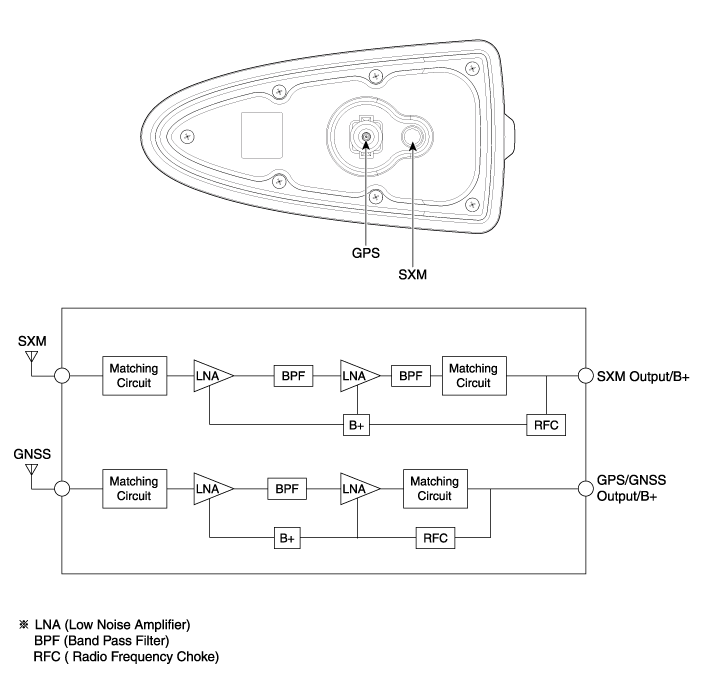

[SXM]

[SXM + GPS]

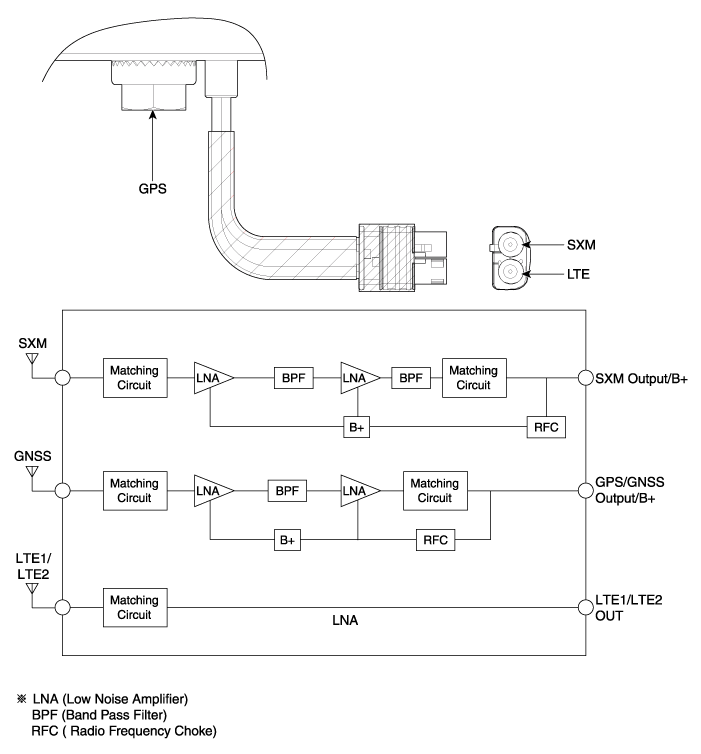

[SXM + GPS + LTE]

AVN Antenna Repair procedures

Removal

Roof Antenna

1.	Disconnect the negative (-) battery terminal.

2.	Remove the roof trim. (Refer to Body - "Roof Trim Assembly")

3.	Disconnect the roof antenna connector (A).

4.	Remove the roof antenna (A) after loosening a nut (B).

Installation

Roof Anenna

1.	Connect the roof antenna connectors.

2.	Install the roof trim assembly. • Make sure that the cables and connectors are plugged in properly. • Check the audio system.

Speaker Repair procedures

Inspection

1.

Troubleshooting for Speaker (1) Basic inspection of speaker Inspect the sound from speaker after verifying that the speaker mounting screws is removed and the wiring connector is connected precisely to remove vibration transmitted from body trims and surrounding parts. (2) Case Troubleshooting No Case Inspection/Remedy 1 Trembling sound 1. Before replacing the speaker, inspect that the mounting screw is installed normally. 2. After re-installing the speaker, verify that no trembling sound is heard. 3. When hearing a trembling sound again, replace the speaker with new one. 2 Noise 1. Check if the wiring connector is connected normally. If not, reconnect the wiring connector. 2. In case of radio static, check if there is a noise from CD player. 3. When a noise is heard on turning radio and CD on, replace the speaker with new one. • In case there is only radio static, this causes from poor radio reception. Thus the speaker needs no repair and replacement. 3 Poor working Inspection of the wiring connection between the battery and the speaker 1. Before replacing the speaker, inspect the wiring and connections in the speaker circuit. 2. Check the supplying power to the speaker and the resistance, and then inspect the sound quality. 3. If the speaker works poorly, replace it with new one. • During dealing of speaker • Dropping or rough handling of the speaker can cause damage. • Be careful not to cover water and oil over the speaker. • Caution during dealing of speaker because the material of diaphragm is paper which is easy to be torn by impact and external force. • When modifying audio system as customer pleases, this does electric damage to speaker. • And, in this case the speakers are not covered by the manufacturer's warranty.

Removal

[Front Door Speakers]

1.	Disconnect the negative (-) battery terminal.

2.	Remove the front door trim. (Refer to Body - "Front Door Trim")

3.	Remove the front door speaker (B) after disconnecting the connector (A) and loosening the screws.

[Front Door Tweeter Speaker]

1.	Disconnect the negative (-) battery terminal.

2.	Remove the front door trim. (Refer to Body - "Front Door Trim")

3.	Remove the tweeter speaker (A) after loosening the screws.

[Rear Door Speakers ]

1.	Disconnect the negative (-) battery terminal.

2.	Remove the Rear door trim. (Refer to Body - "Rear Door Trim")

3.	Remove the rear door speaker (B) after disconnecting the connector (A) and loosening the screws.

[Crash Pad Center Speaker]

• Take care not to scratch the crash pad and related parts.

1.	Using a screwdriver or remover, remove the crash pad center speaker grille (A).

2.	Remove the center speaker (A) after disconnect the connector and loosening the screws.

[Sub Woofer Speaker]

1.	Remove the rear seat. (Refer to Body - "Rear Seat")

2.	Remove the package tray trim. (Refer to Body - "Rear Package Tray Trim")

3.	Remove the sub woofer speaker (A) after disconnect the connector and loosening the bolts.

Installation

Front Door Speaker

1.	Install the front door speaker.

2.	Install the front door trim.

Rear Door Speaker

1.	Install the rear door speaker.

2.	Install the rear door trim.

Crash Pad Center Speaker

1.	Install the center speaker.

2.	Install the center speaker grille.

Subwoofer Speaker

1.	Install the subwoofer speaker.

2.	Install the rear package tray and rear seat.

• Make sure the speaker connectors are plugged in properly.

AUX jack Schematic Diagrams

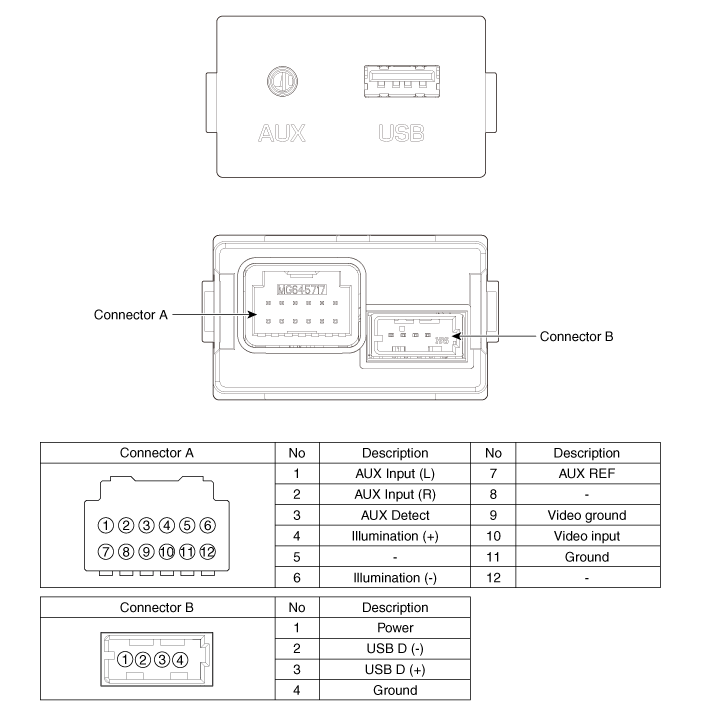

Circuit Diagram

AUX jack Description and Operation

Description

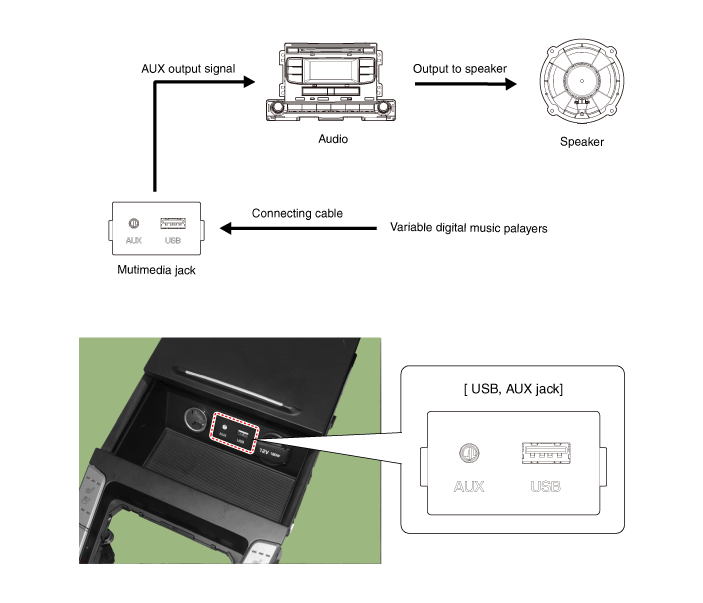

The multimedia jack on the console upper cover is for customers who like to listen to external portable music players like the MP3 etc., through the vehicle's sound system when it is linked to this jack. The customer has this added option.

In case of distortions from media connected to the AUX source, the audio unit may not be defective but the output level of the used media does not match the specification of the AUX input.

AUX jack Repair procedures

Removal

1.	Disconnect the battery (-) terminals.

2.	Remove the floor console assembly. (Refer to Body - "Floor Console Assembly")

3.	Remove the multimedia jack (A) from the console under cover after releasing the fixed hooks (B).

Installation

1.	Connect the multimedia jack connector.

2.	Install the multimedia jack.

3.	Install the floor console assembly.

Mic Repair procedures

Inspection

1.	Disconnector the negative (-) battery terminal.

2.	Remove the overhead console lamp. (Refer to Body Electrical System - "Overhead Console Lamp")

3.	Remove the overhead console cover after loosening the screws.

4.	Check the continuity of between terminals.
